3.3.1

Connecting the Optional Expansion Cabinet

Connect the M9000 server base cabinet and M9000 server expansion cabinet by following
the procedure below.
When the base cabinet and expansion cabinet are connected to each other, the side panels on
the connection side of the base cabinet must be moved to the expansion cabinet. If the server
has been shipped with the side panels already moved to the expansion cabinet, start the work
at Step
1. Loosen the three screws securing the two right side panels on the base cabinet and
remove the panels.
A side panel can be removed by slightly raising it. The removed side panels will be
mounted in the
Note – Unless otherwise stated, assume that you are facing the front of the base cabinet
when you perform the work. There is a panel on the front of the base cabinet.

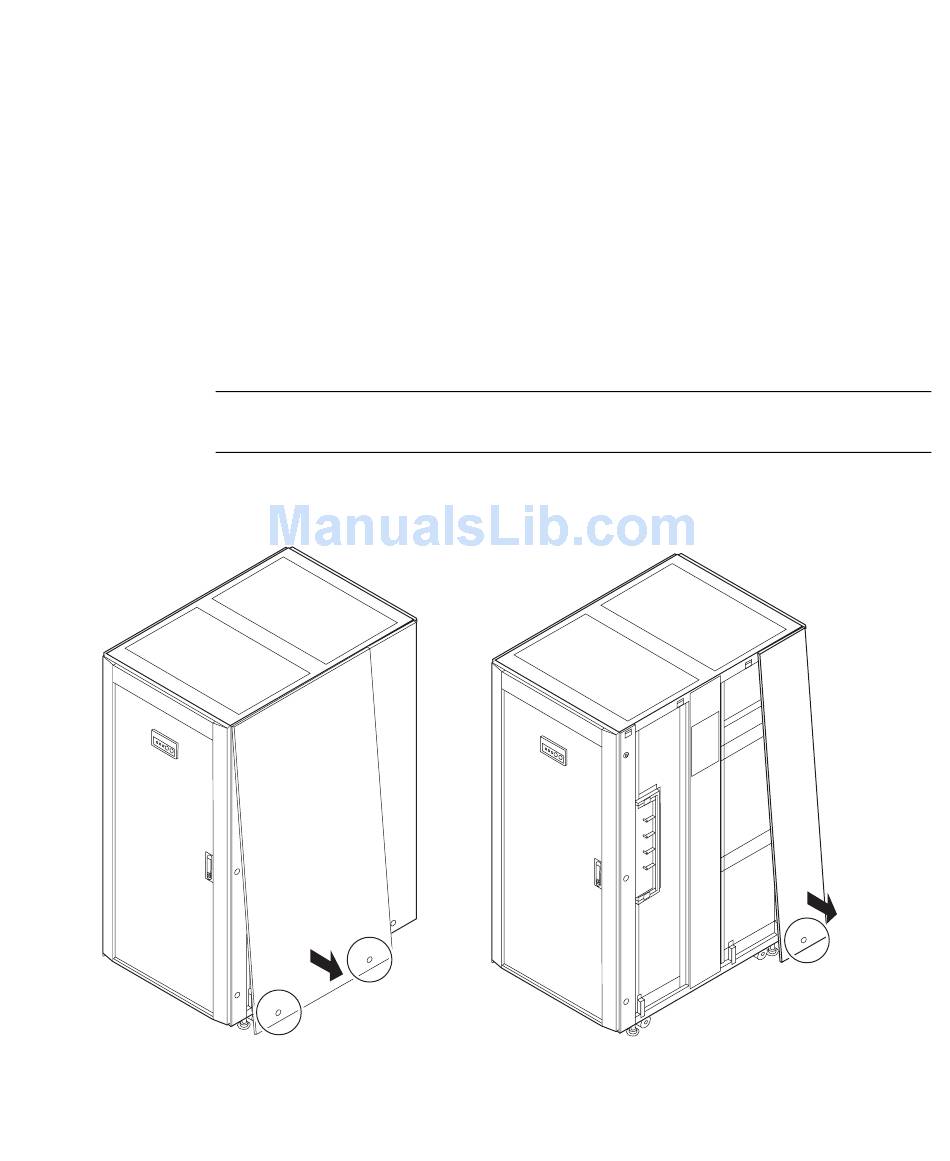

FIGURE 3-2
3.
Step 2.
Removing the Right Side Panels From the Base Cabinet
Chapter 3 Installing the Server 3-5
