C 6: C P
HAPTER ONFIGURING ORTS AND
Configure a Generic Port with In-Band Access
In-band access to Generic devices, such as hubs, Windows servers, CISCO routers, can be
managed with one of these in-band applications:
•
Windows Remote Desktop (RDP)
•
Secure Shell (SSH)
•
Virtual Network Computer (VNC)
1. Click on the Devices tab and select a Generic device from the Devices tree.
2. On the Devices menu, click Port Manager, and then click Configure Ports. The Configure
Ports screen appears.
3. Click the Configure button that corresponds to the Generic port line item you wish to
configure. The Configure Generic Port screen appears.
4. Type a port name in the Port Name field. For ease of use, you should name the port after the
server that is connected to the port.
5. Click on the In-Band application name drop-down arrow and select an in-band application,
such as SSH Client, VNC Viewer, or RemoteDesktop Viewer to manage the device.
6. Type a TCP port number that the application will use as a Start-up parameter.
P G
ORT ROUPS

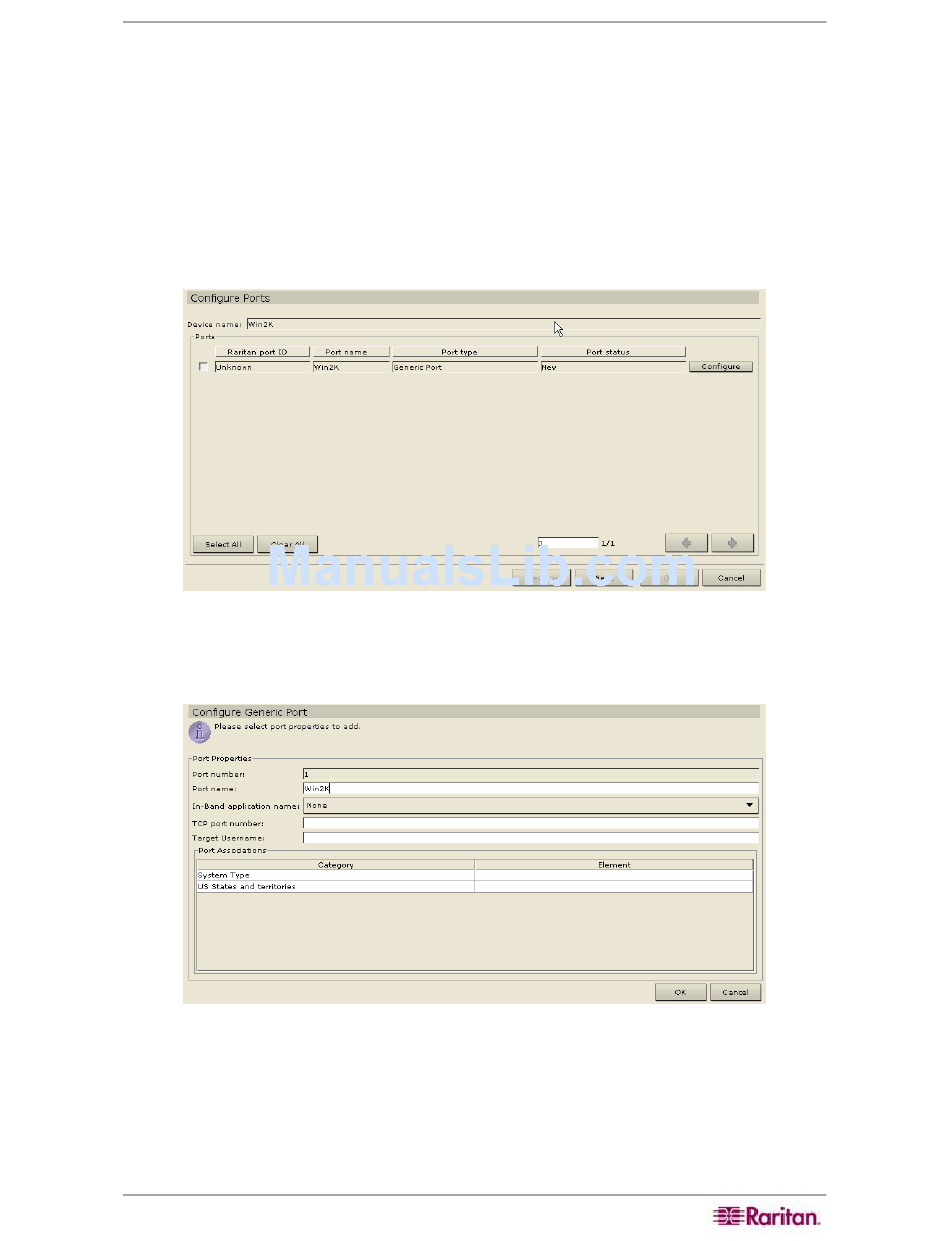

Figure 102 Configure Ports Screen

Figure 103 Configure Generic Ports Screen

83
