Figure 114 Edit Port Group Window; Figure 115 Delete Port Group Window - Raritan Command Center CC-SG Administrator's Manual

92
Edit Port Group
1. On the Associations menu, click Groups Manager and then click Port Group Manager.
The Port Groups Manager screen appears.
2. Click on the Group Name drop-down arrow and select a group to edit. Click Edit in the
Group panel. The Edit Port Group window appears.
3. Type a new name for the group in the Enter New Name for Port Group field.
4. Click OK to update the change or Cancel to close the window.
5. Click Close to close the Port Groups Manager screen.
6. Repeat steps 1 through 5 to edit other port groups.
Delete Port Group
1. On the Associations menu, click Groups Manager and then click Port Groups Manager.
The Port Groups Manager screen appears.
2. Click on the Group Name drop-down arrow and select a group to delete from the list. Click
Delete to delete the group. The Delete Port Group window appears.
3. Click Yes to delete the port group or No to close the window.
4. Click Close to close the Port Groups Manager screen.
5. Repeat steps 1 through 4 to delete other port groups.
C C
OMMAND ENTER

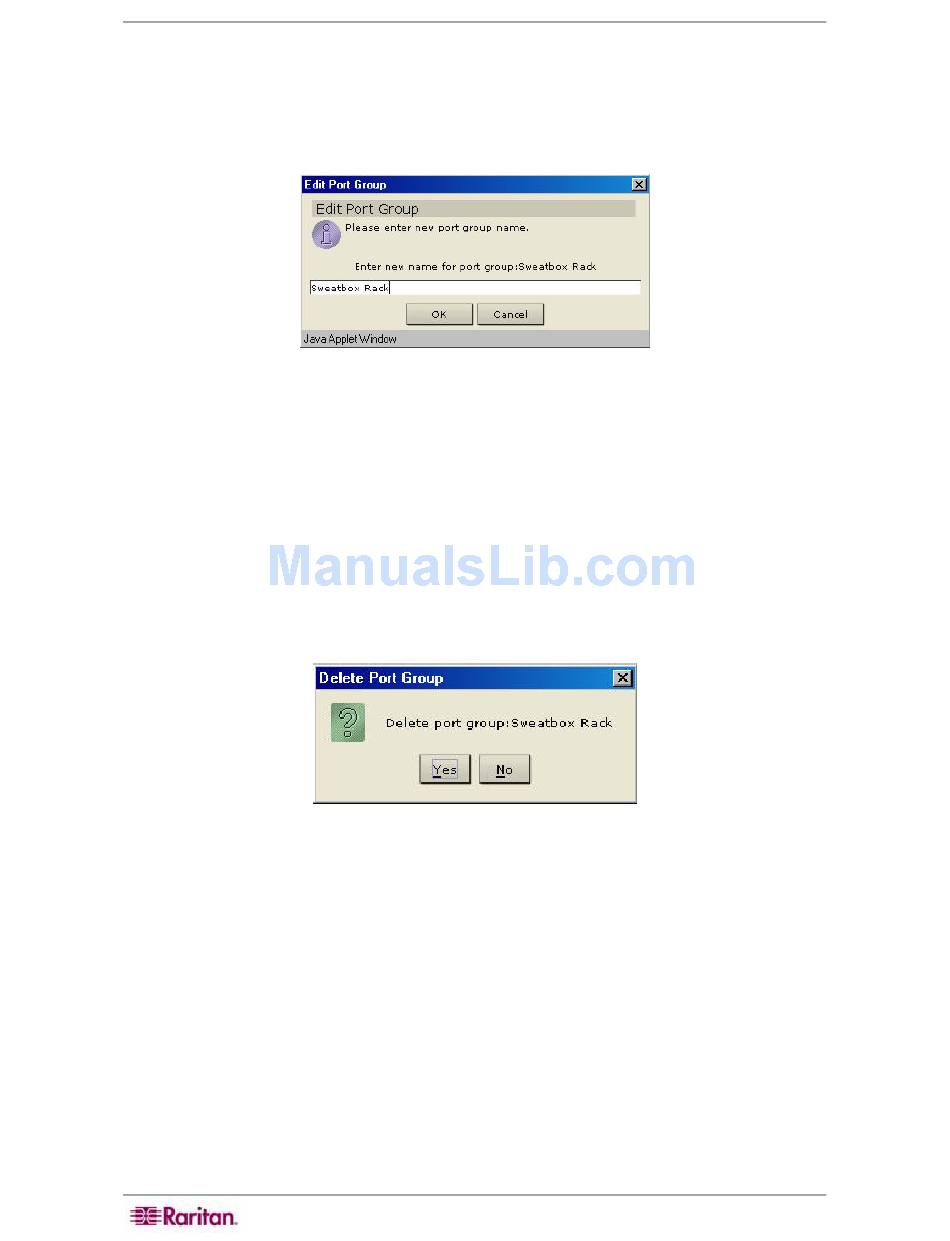

Figure 114 Edit Port Group Window

Figure 115 Delete Port Group Window
