C 9: C R
HAPTER ONFIGURING EMOTE
2. In Add Module screen, select LDAP from the pulldown menu, specify a name for the server,
and click Next.
3. Type the IP address or hostname of the LDAP server in the IP Address/Hostname field. For
hostname rules, see Terminology/Acronyms in Chapter 1: Introduction.
4. Type the port value in the Port field. The default port is 389.
5. Check Secure Connection for LDAP if using a secure LDAP server and enter a security
realm.
6. Check Anonymous Bind if your LDAP server allows anonymous queries. You do not need
to enter a user name and password with anonymous binding.
Note: By default, Windows 2003 does NOT allow anonymous queries. Windows 2000 servers do
allow certain anonymous operations, whose query results are based on the permissions of each
object.
7. If not using anonymous binding, type a User name and Password. Enter a Distinguished
Name (DN) to specify the credentials used to query the AD server. For DN, enter the
common name,
uid=admin,ou=Administrators,ou=TopologyManagement,o=NetscapeRoot. Separate the
values with commas but do not use spaces before or after the comma. The value themselves
can include spaces, such as Command Center.
8. Enter and confirm the password.
9. To specify where the search for users begins, enter a Distinguished Name in Base DN. For
example, ou=Administrators,ou=TopologyManagement,o=NetscapeRoot, searches all
organizational units under the domain.
10. To narrow searching to only particular types of objects, enter a value in Filter. For example,
(objectclass=person) will narrow searching to only person objects.
A
UTHENTICATION

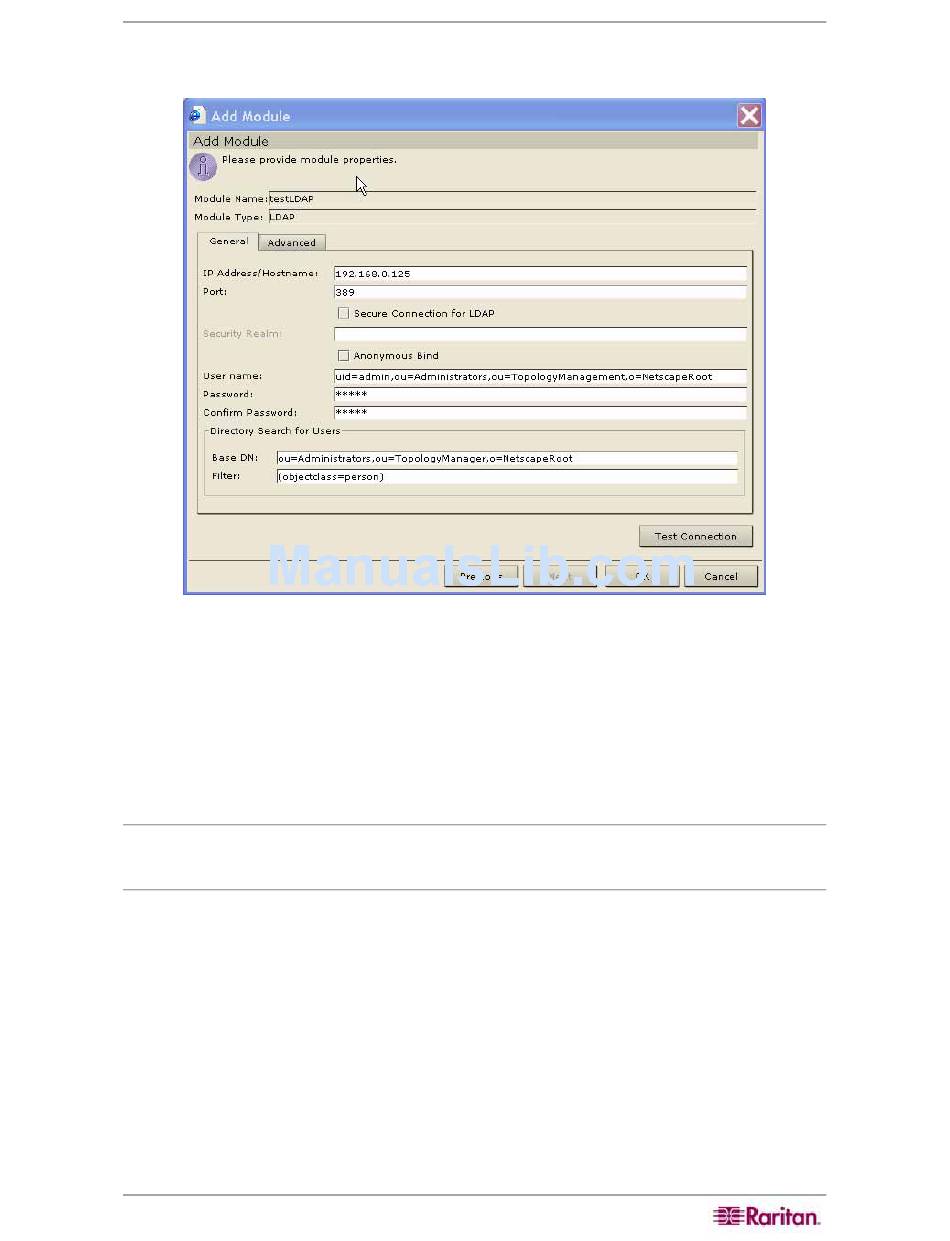

Figure 151 Security Manager LDAP Screen General Tab

organizational unit, and domain. For
125
example, type
