C 12:
HAPTER ADVANCED ADMINISTRATION
4. Click on the Advanced tab.
5. Type an initialization command in Extra initialization commands that will be used by your
modem to set the "Carrier detection" flag. For example, type at&c for a SoftK56 Data Fax
modem. This is necessary to tell Windows not to close the started Modem connection process
when the modem connection is closed from the other (dialed-in) side. Click OK to save the
settings.
Configure the Dial-Up Connection
The following procedure illustrates creating an inbound dial-up connection to CC-SG from a
Windows XP client machine:
1. On the start menu, click My Network Places.
2. Right-click in the window and select Properties.
3. Under Network Tasks in the Network Connections window, click Create a new
connection.

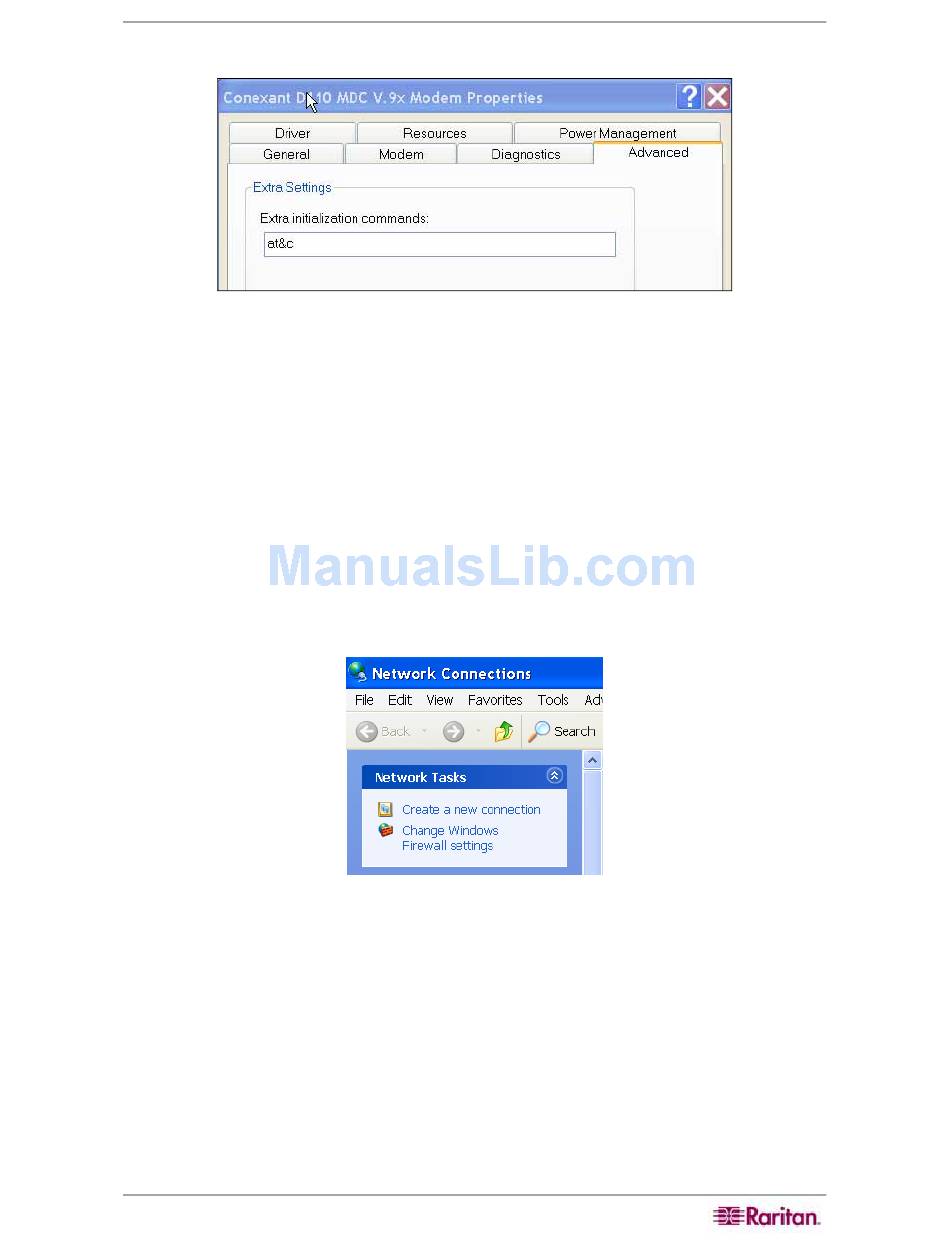

Figure 200 Extra Initialization Commands

Figure 201 Create a new connection

167
