Figure 21 Add Device Powerstrip; Figure 22 Add Device Sx - Raritan Command Center CC-SG Administrator's Manual

C 3: E C
HAPTER XAMPLE ONFIGURATION
4. Click Next to proceed. The Add Device description screen appears. Depending on the type of
device you selected, you will see slightly different Add Device screens.
5. Type the device name in the Device Name field. Do not use spaces.
6. Type the device description in the Description field.
7. Type the Device IP address when you prepared the device and use the previously created CC-
SG Username and Password, such as ccadmin/password. Please see Raritan's
CommandCenter Secure Gateway Setup Guide for additional information.
8. Select a category and appropriate element from the Category and Element (double-click on
an element field to see and select element choices) window. Click OK to add the device. A
W
ORKFLOW

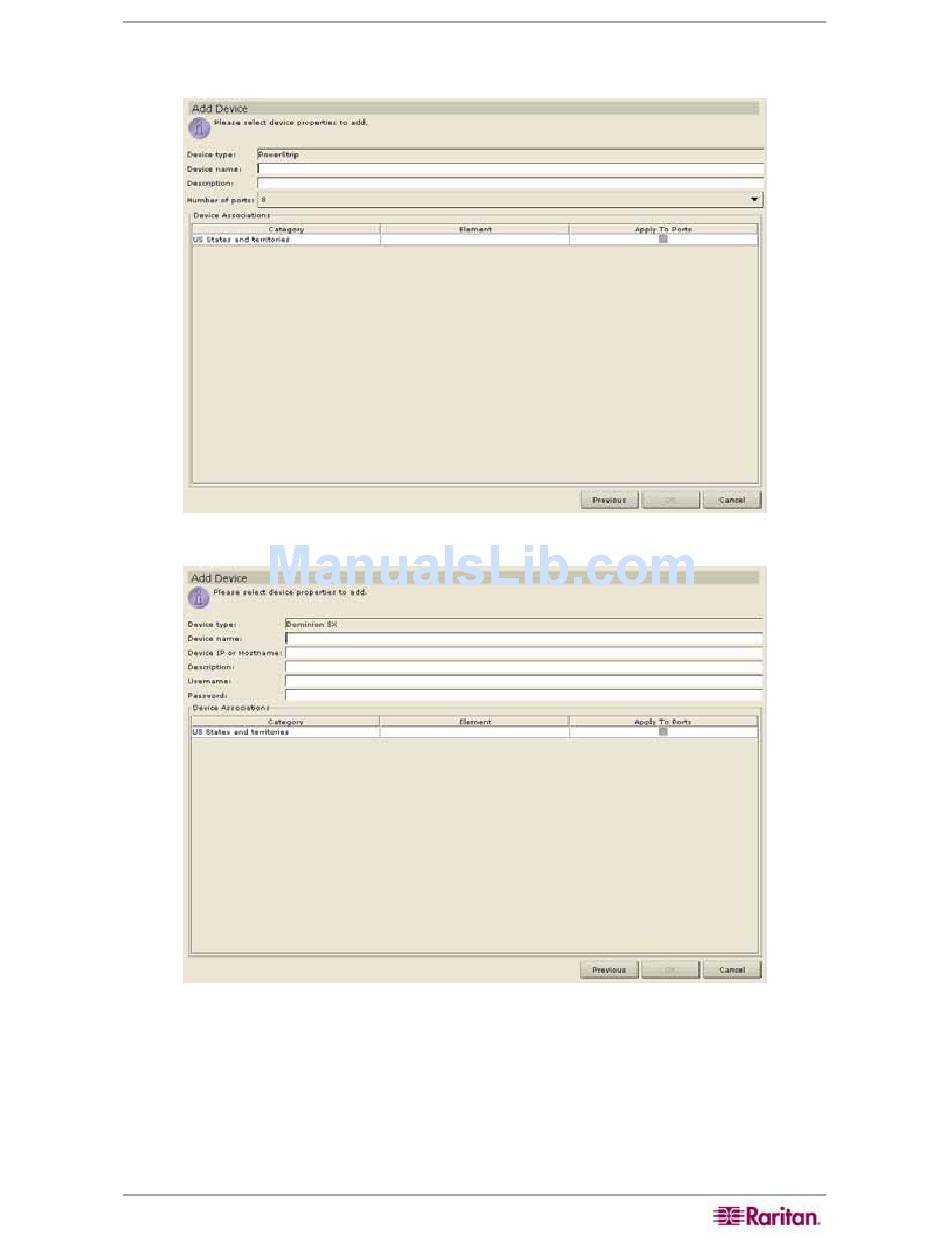

Figure 21 Add Device PowerStrip

Figure 22 Add Device SX

23
