84
7. Type a Target Username that the application will use as a Start-up parameter. If a target
name is supplied, then only a password is required when accessing a target.
8. Select the associated category and element from the Port Associations table.
9. Click OK to configure the Generic port or Cancel to exit with configuring. A Port
Configured Successfully message confirms that port has been created.
10. Repeat steps 1 through 9 to configure other Generic ports.
Configure an Outlet Port
Outlet ports can be configured for PowerStrip devices and IPMI servers.
1. Click on the Devices tab and select a PowerStrip device from the Devices tree.
2. On the Devices menu, click Port Manager, and then click Configure Ports. The Configure
Ports screen appears.
C
OMMAND

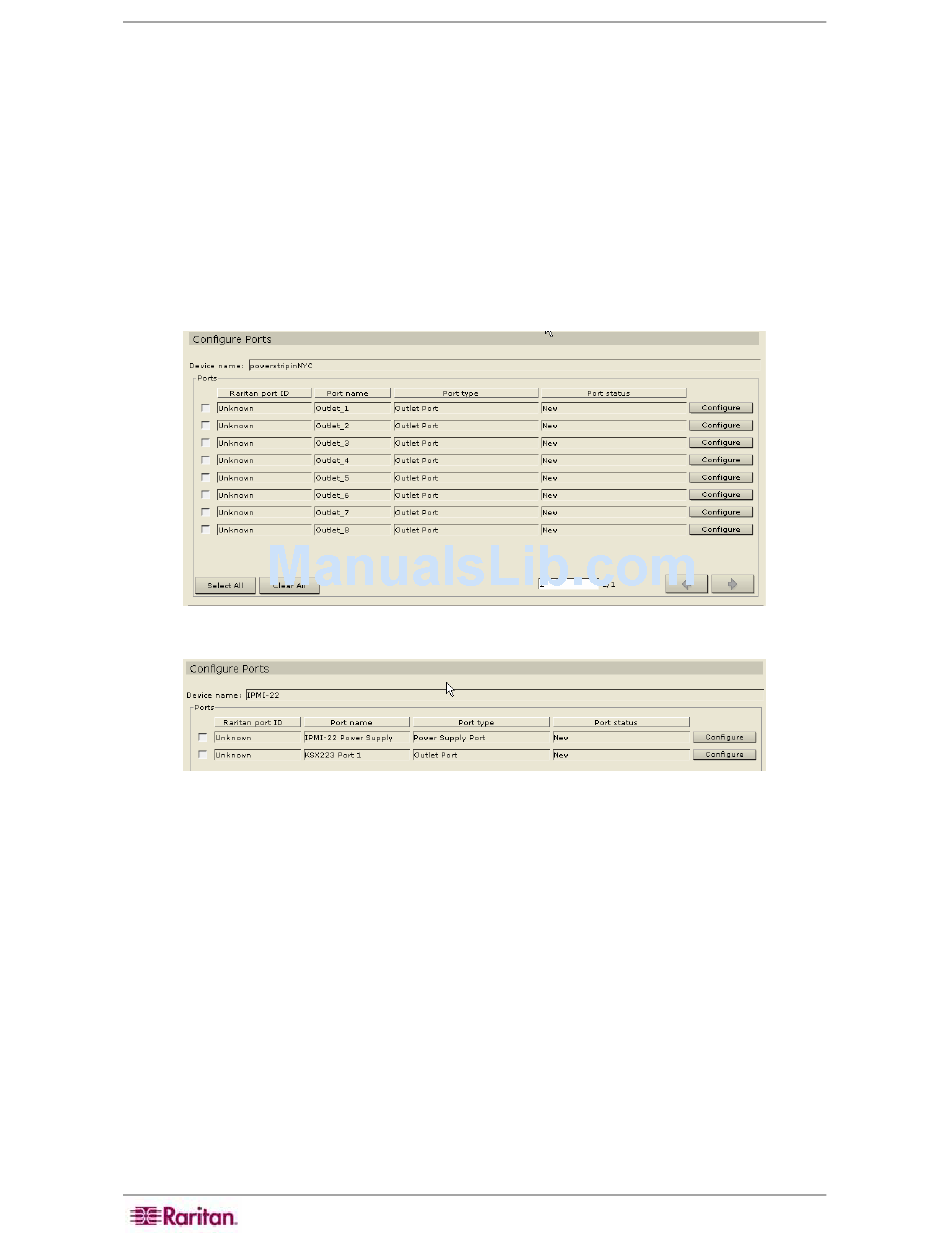

Figure 104 Configure Ports Screen for Powerstrip Device

Figure 105 Configure Ports Screen for IPMI Server
