C 5: G 65
HAPTER ADDING DEVICES AND DEVICE ROUPS

IP-Reach and UST-IP Administration

You can also perform administrative diagnostics on IP-Reach and UST-IP devices connected to
your Paragon System setup directly from the CC-SG interface.
After adding the Paragon System device to CC-SG, it appears in the Devices tree. Right-click on
the device icon in the Devices tree and select Remote User Station Admin. The Remote User
Station Admin screen appears, listing all connected IP-Reach and UST-IP units. Click the
Launch Admin button in the row of the device you want to work with to activate Raritan Remote
Console and launch the blue device configuration screen in a new window.

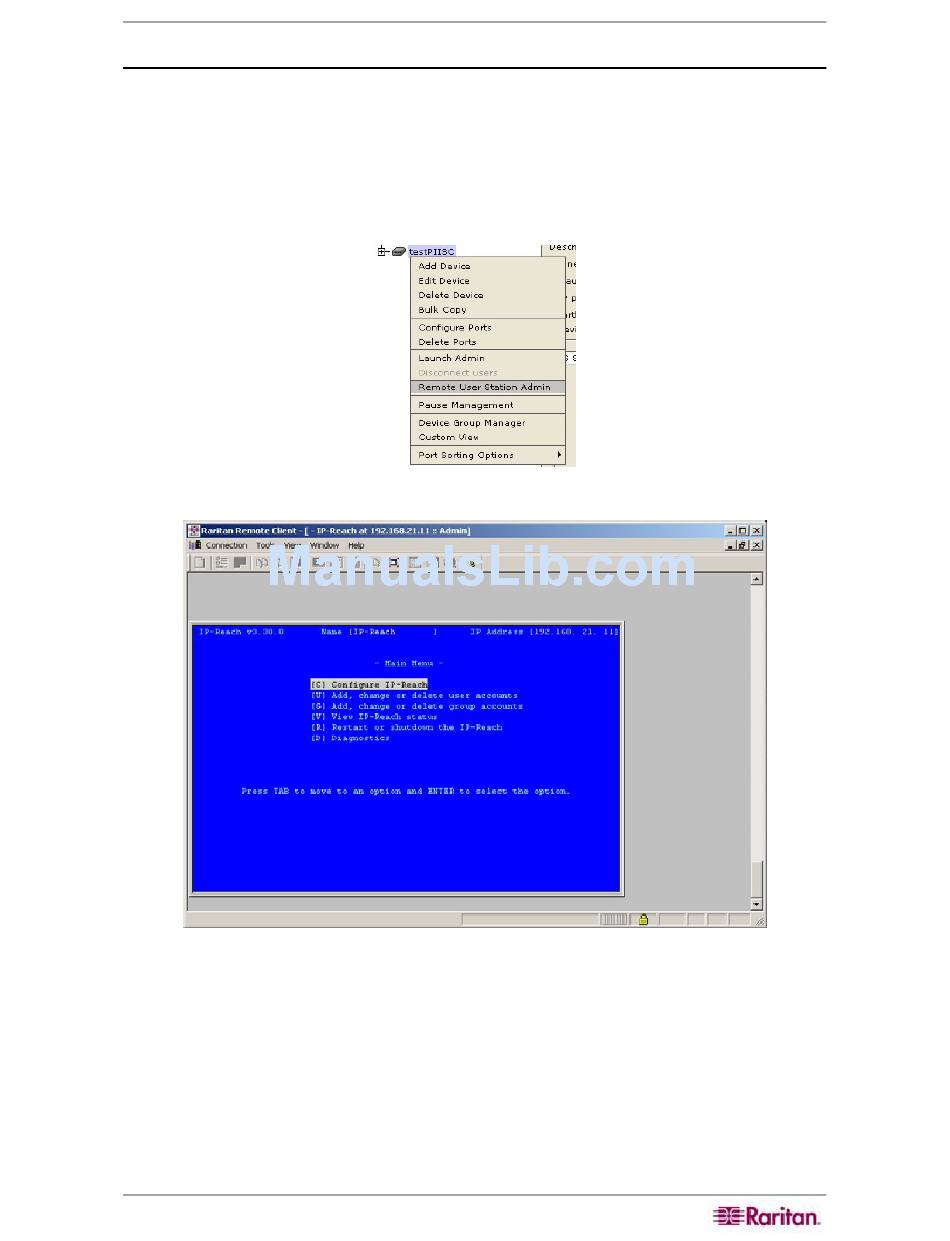

Figure 76 Remote User Station Admin Option

Figure 77 IP-Reach Administration Screen
