C 12:
HAPTER ADVANCED ADMINISTRATION
2. Either click Refresh or press Enter to refresh the display. Refreshing the display is especially
useful when upgrading or installing and you want to see the progress of the RAID disks as
they are being rebuilt and being synchronized.

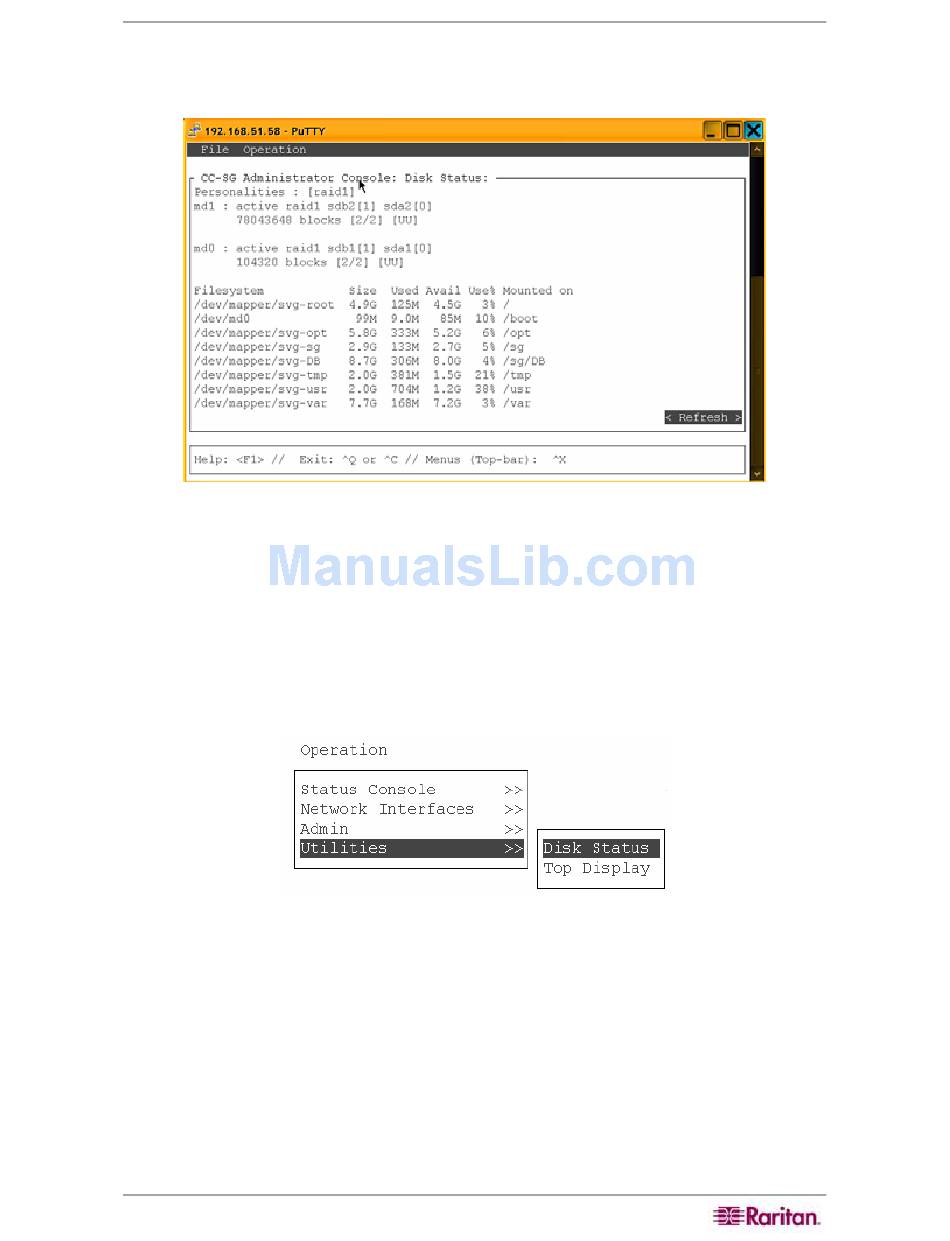

Figure 287 Displaying Disk Status of CC-SG in Diagnostic Console

The disk drives are fully synchronized and full RAID-1 protection is available when you see a
screen as shown above (note the status of both md0 and md1 arrays are [UU]).
Displaying Top Display (Utilities)
This option displays the list of processes and their attributes that are currently running on CC-SG
as well as overall system health.
1. To display the processes running on the CC-SG, click Operation, Utilities, then Top
Display.

Figure 288 Selecting Top Display in Diagnostic Console

223
