Diagnostic Console

The Diagnostic Console is a standard, non-graphical interface that provides local access to CC-
SG. It can be accessed from a serial or KVM port, or from Secure Shell (SSH) clients, such as
Putty or OpenSSH Client.
Two logins are provided⎯one is status and the other is admin. Default password for admin is
raritan. All login usernames and passwords are case-sensitive. Logging in as status displays
current system information to ascertain the health of CC-SG. The admin account allows you to set
initial parameters, view log files, and perform some limited diagnostics such as changing the IP
address of the CC-SG or restarting CC-SG.
Note: If accessing Diagnostic Console via SSH, the Status Console and the Administrator
Console inherits the appearance settings that are configured in your SSH client and keyboard
bindings.

Accessing Diagnostic Console via SSH

1. Launch a SSH client, such as Putty.
2. Enter the IP address, or IP hostname if CC-SG has been registered with a DNS server, of the
CC-SG and specify 23 for the port.

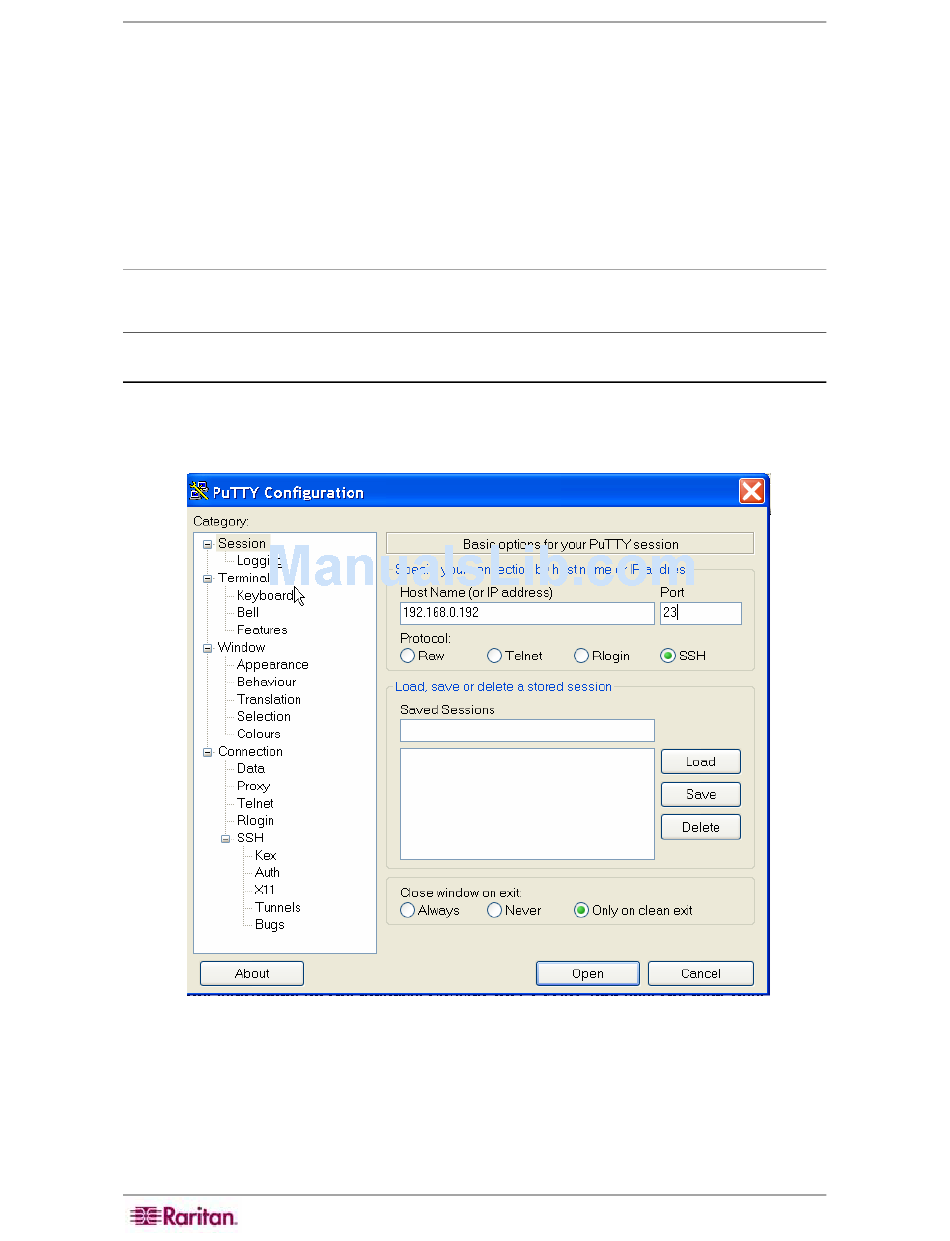

Figure 255 SSH Client

3. Click Open. A window opens, prompting you for a login.
