Topological View

Use the Topological View command to view the structural setup of all the connected appliances
in your configuration.
1. Click on the Devices tab and select a device from the Devices tree.
2. On the Devices menu, click Topological View. The Topological View for the selected
device appears.
3. Navigate through the Topological View in the same way you navigate through the Devices
tree; click on the + or – to expand or collapse the view.
4. Click Close to close Topological View screen.
G
ROUPS

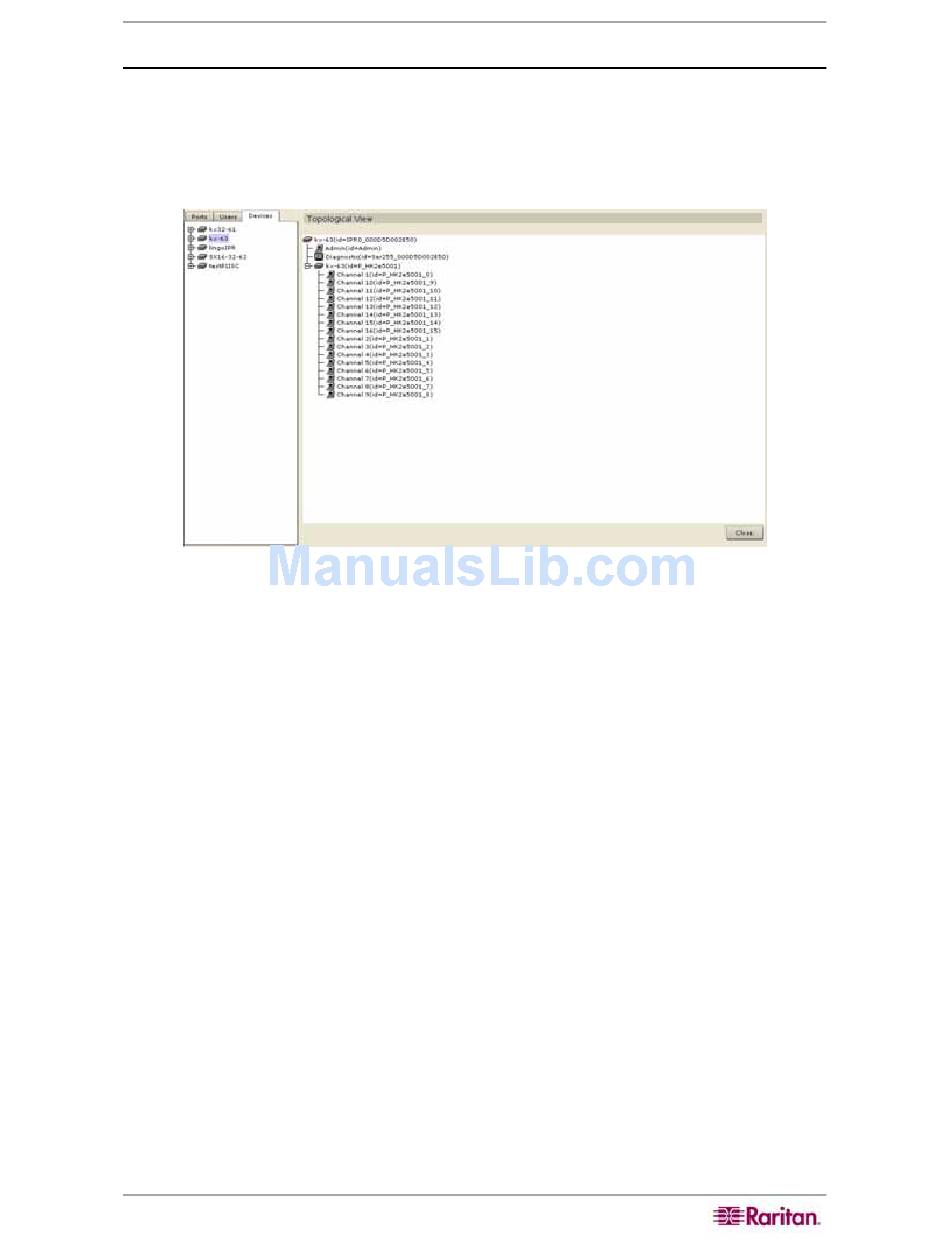

Figure 73 Topological View Screen
