C 9: C R
HAPTER ONFIGURING EMOTE
2. In the Add Module screen, select TACACS+ from the pulldown menu, specify a name for
the server, and click Next.
3. Type the IP address or hostname of the TACACS+ server in the IP Address/Hostname
Name field. For hostname rules, see Terminology/Acronyms in Chapter 1: Introduction.
4. Type the port number in the Port Number field.
5. Type the authentication port in the Authentication Port field.
6. Type and confirm the shared key into the Shared Key field.
7. Click OK to update changes.
A
UTHENTICATION

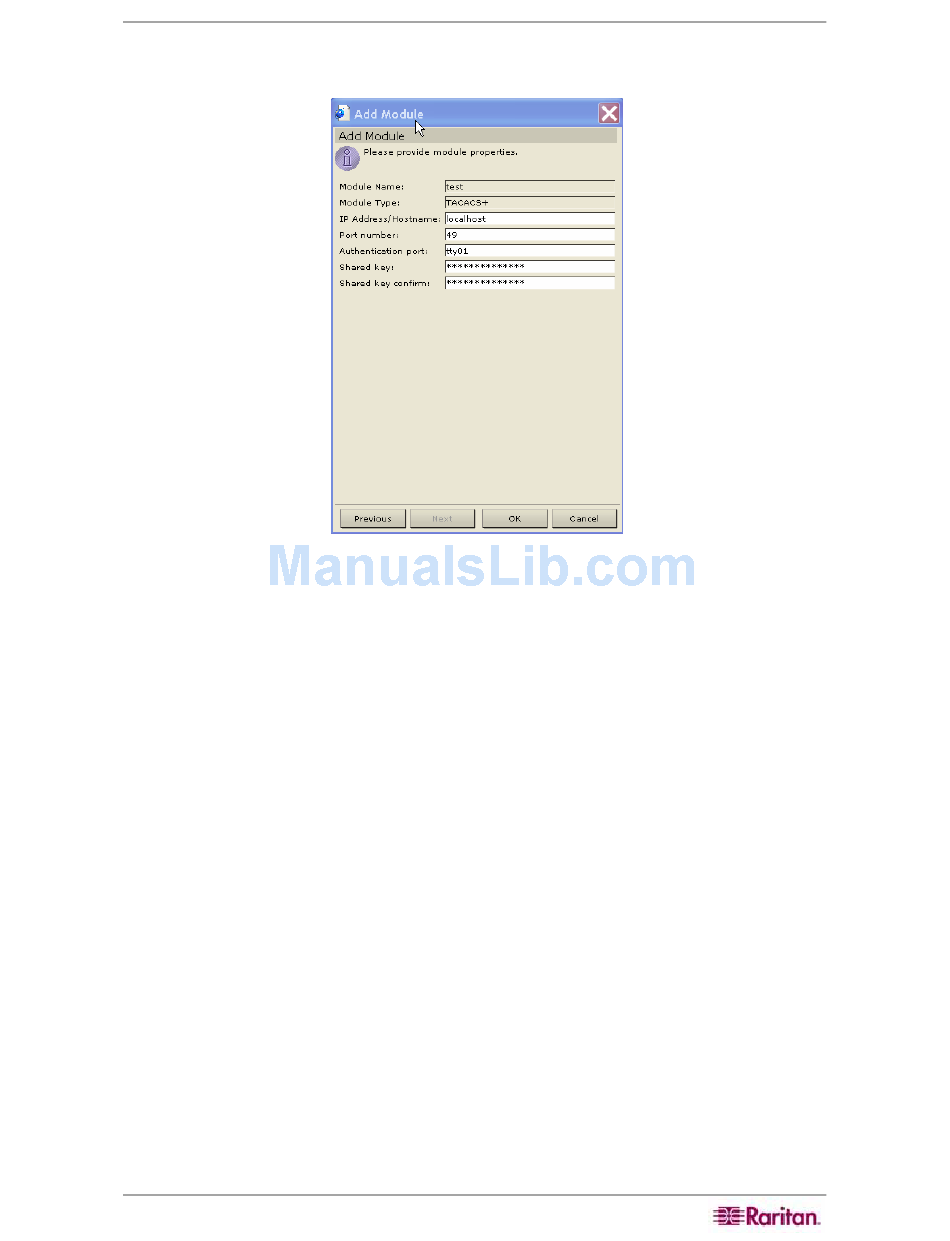

Figure 154 Specifying a TACACS+ Server

129
