5. Click on the Application Name drop-down menu and select name. This application, for
example, Raritan Remote Console (RRC), is used to manage the target system. All ports
should use RRC except for those on an SX.
6. Select the associated category and element from the Port Associations table by double-
clicking the element field.
7. Click OK to save the KVM port configuration. A Port Configured Successfully message
confirms that port has been created.
8. Repeat steps 1 through 7 to configure other KVM ports.

Add Users to System Administrators Group

If you want your users to have access to all devices, ports, and CC-SG, you can simply create and
place users in the System Administrators user group. This simplifies the configuration process by
eliminating the need to create user groups, port groups, and policies to control user access. If you
do not put users in the default System Administrators group, you will need to complete the
additional sections that follow this one. After adding a user, they will be able to log into CC-SG
and connect to ports, configure the system, etc.
Note: Please remember that many of the commands in the Users menu can be accessed by right-
clicking on the user icon and using the shortcut menu that appears.
1. Click on the Users tab.
2. On the Users menu, click Add User. Alternatively, right-click on a user and select Add User.
The Add User screen appears.
3. Type the user's name in the Username field (1-32 characters, alphanumeric characters or
underscores, no spaces).
4. Check the Remote Authentication check box only if the user should be authenticated by
TACACS+, RADIUS, LDAP, or AD. Note: Checking the Remote Authentication box
implies that a remote server is being used for authentication. If so, a local password is not
needed and the Password and Retype Password fields are grayed out.
W
ORKFLOW

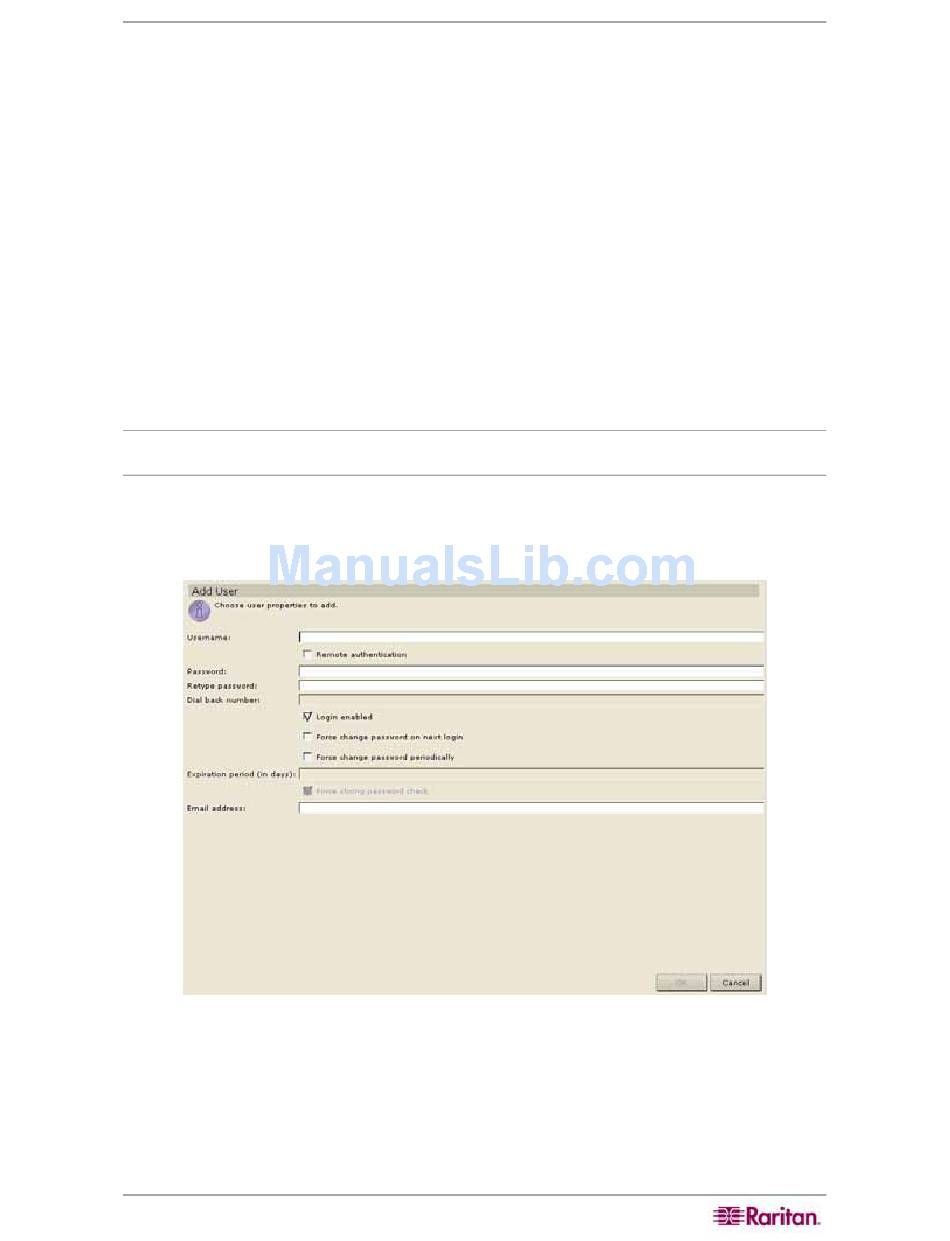

Figure 27 Add User Screen
