Edit a Generic Port
1. Click on the Ports tab and select a Generic port to be edited.
2. On the Ports menu, click Edit Port. The Edit Generic Port screen appears.
3. Type a new port name in the Port Name field.
4. Click on the In-band application name drop-down arrow and select an application from the
list.
5. Type a new port number in the TCP port number field.
6. Type a new username in the Target Username field.
7. Select a new category and element from the Port Associations table.
8. Click OK to edit the port or Cancel to exit without saving the changes. A Port Updated
Successfully confirms that port has been updated.
9. Repeat steps 1 through 8 to edit other ports.
C C
OMMAND ENTER

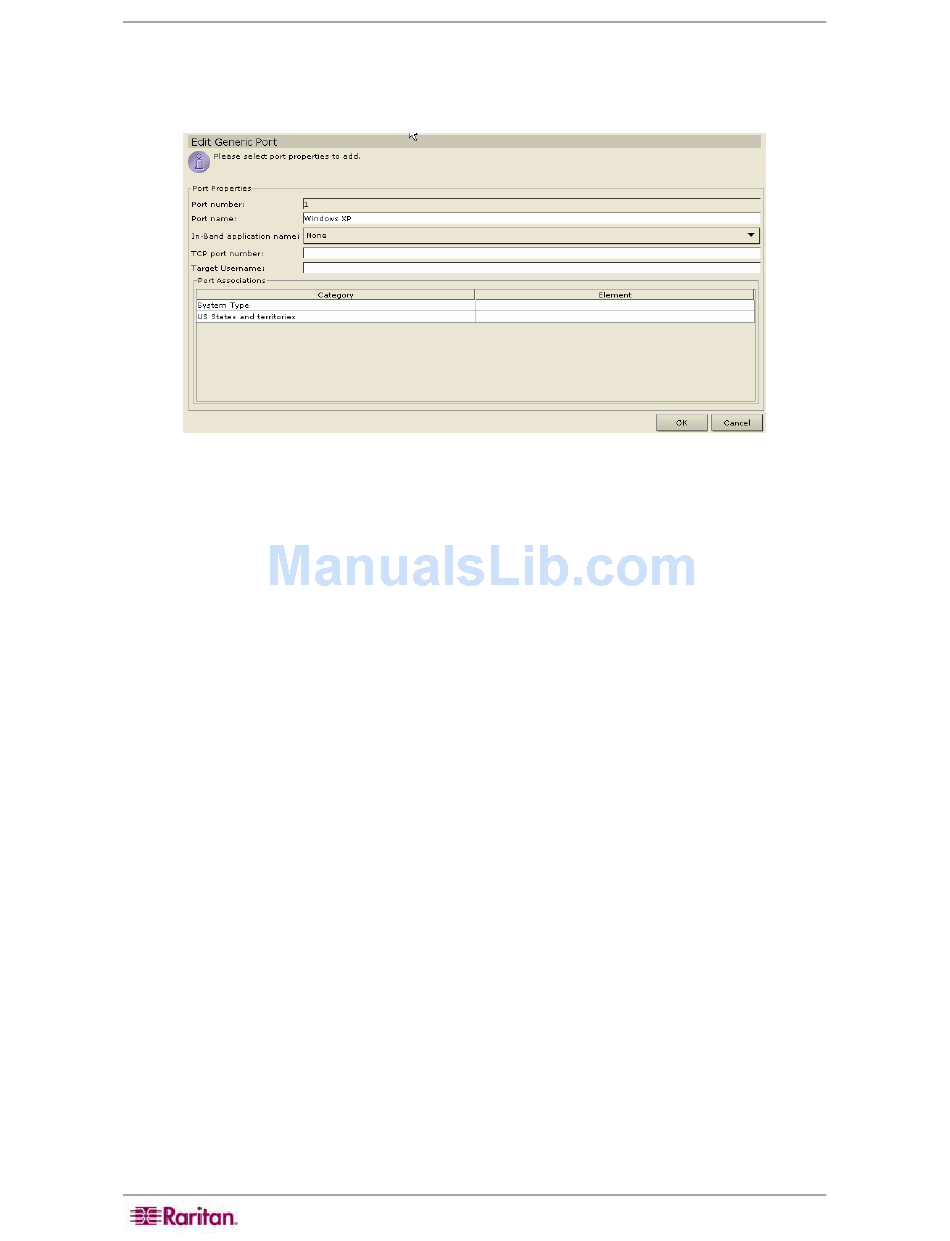

Figure 111 Edit Generic Port Screen
