Create/Edit Port Groups; Figure 29 Port Groups Manager Screen; Figure 30 Add Port Group Window - Raritan Command Center CC-SG Administrator's Manual

30

Create/Edit Port Groups

CC-SG uses port groups to control user access. Policies can be applied to specific user groups
that allow only access to those ports specified in the port group. For example, if you wanted to
restrict user access to only UNIX ports, you would create a port group that included only UNIX
ports. Then you would create a policy that included this port group and apply it to the desired user
group.
Port groups were automatically created per element when the Association Wizard was run, see
Create Associations earlier in this chapter for additional information. These port groups contain
general rules so you may want to edit these port groups and add more specific rules.
1. On the Associations menu, click Groups Manager and then click Port Group Manager.
The Port Groups Manager screen appears.
2. Click Add in the Group panel to add a new group. The Add Port Group window appears.
3. Type the name for the new Port Group in the Enter Port Group Name field.
4. Click OK to add the new group.
5. Create a desired rule (such as PortType=UNIX) using pre-defined categories and elements
and then click Add Rule. In this example, PortType is a category and UNIX is an element.
Repeat for additional rules.
C C
OMMAND ENTER

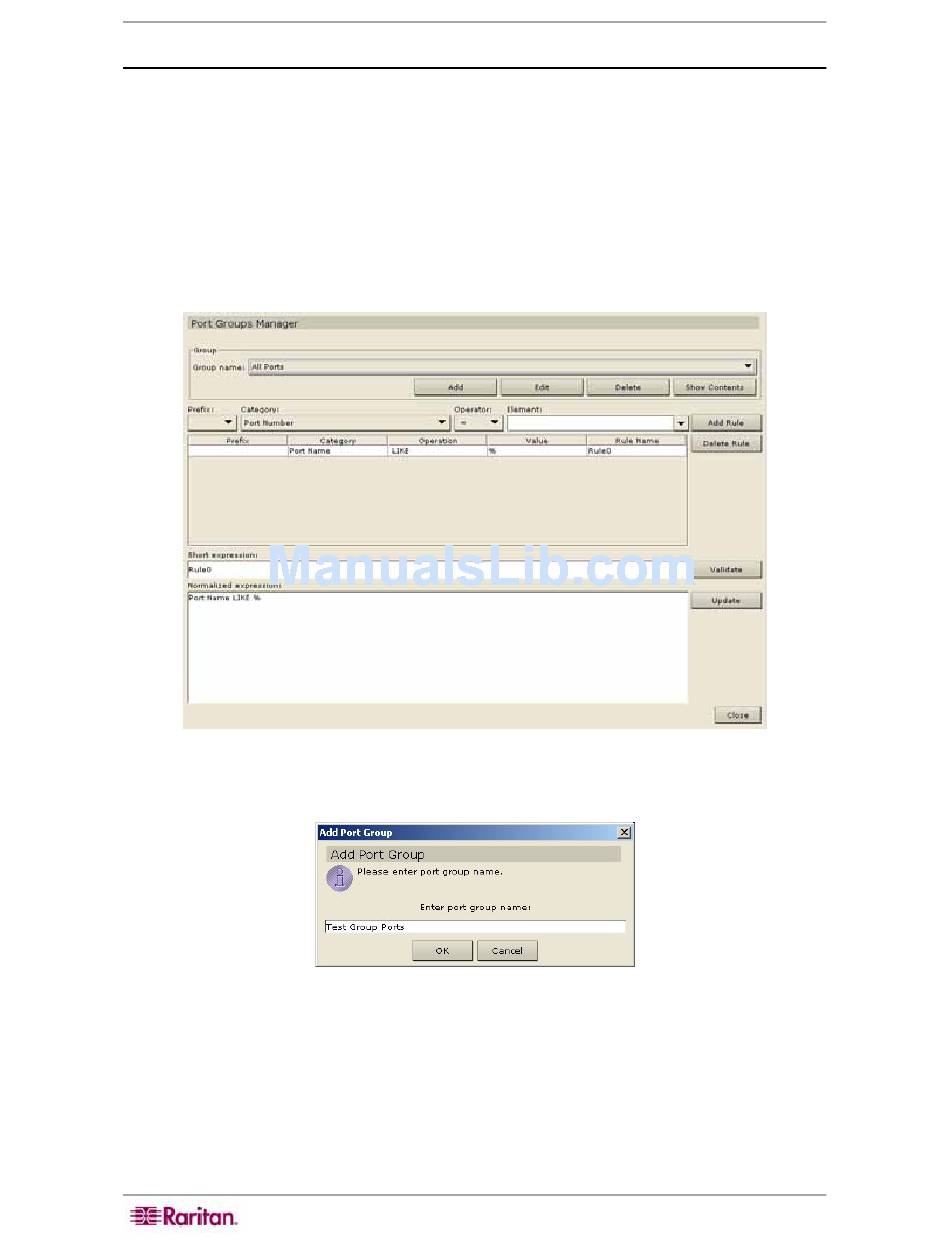

Figure 29 Port Groups Manager Screen

Figure 30 Add Port Group Window

S G A
ECURE ATEWAY DMINISTRATOR
G
UIDE
