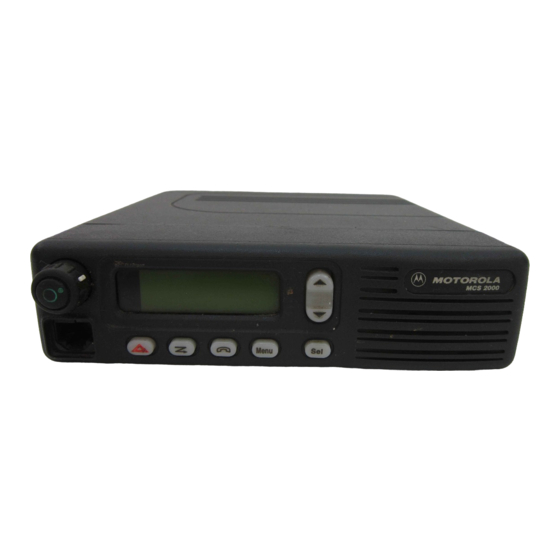

Motorola MCS 2000 User Manual
Motorola MCS 2000 User Manual

Motorola MCS 2000 User Manual

Radio service software
Hide thumbs Also See for MCS 2000:
Table of Contents

Advertisement

MCS 2000™ Radios
Radio Service Software
User's Guide
Software Part Number: RVN-4113F
© 1997 by Motorola, Inc., Radio Products Group
8000 W. Sunrise Blvd., Ft. Lauderdale, FL 33322
68-81081C15-E
Printed in U.S.A. 09/97. All Rights Reserved.

Advertisement

Table of Contents
loading

Summary of Contents for Motorola MCS 2000

  • Page 1 MCS 2000™ Radios Radio Service Software User’s Guide Software Part Number: RVN-4113F © 1997 by Motorola, Inc., Radio Products Group 8000 W. Sunrise Blvd., Ft. Lauderdale, FL 33322 68-81081C15-E Printed in U.S.A. 09/97. All Rights Reserved.
  • Page 2 INSTALL is provided to you for the exclusive purpose of installing MCS 2000 Radio Service Software. Motorola is exclusively responsible for the support of MCS 2000 Radio Service Software, including support during the installation phase. In no event will Knowledge Dynamics Corp.
  • Page 3: Table Of Contents

    Programming a Basic MCS 2000 Radio ........
  • Page 4 VRM500 Receive Discriminator Level ..........62 Signalling Alignment Menu .
  • Page 5 SmartZone Preferred Sites............189 OmniLink Preferred Sites .
  • Page 6 Appendix D - MCS 2000 Features ........
  • Page 7: Introduction

    Service Software (RSS) manual is your guide to customizing and programming a variety of features into the MCS 2000 radio. The MCS 2000 series of Mobile radios has a unique set of features, including unique PL/DPL codes for each channel, a variety of signalling abilities with channel scan, and the convenience of maintenance-free tuning due to the wide-band capability.
  • Page 8: Prerequisites

    Prerequisites To program radios using the RSS, we recommend a basic working knowledge of the following: Microcomputers The radio’s available features (Refer to the appropriate Radio Operator’s Manual.) Your customers’ needs MS-DOS operating system, version 5.0 or later This RSS requires a minimum of 510 kilobytes of free RAM to run. The DOS MEM command can be used to determine the amount of free memory available on your computer (that is, type c:\dos\mem and hit Return ).
  • Page 9: Using This Manual

    Using This Manual The MCS 2000 RSS Manual is designed to teach basic radio feature programming and speed up access to technical reference information. It is intended for both beginners and advanced RSS users. This manual contains information on all of the following:...
  • Page 10: Assembling The Hardware

    Assembling The The figure below shows how to assemble the required (and optional) equipment used to program the MCS 2000 radio. Hardware Portable Products Test Set - P/N RTX4005B or RTX-4005A Test Set (with rework kit RPX-4665A) Provides the capability for...
  • Page 11 shown. 4. Plug one end of the RIB power supply into the RIB and the other end into a wall outlet. After you connect the hardware, switch on the radio by turning the volume control clockwise. You will hear one of the following types of tones.
  • Page 12: What's On The Rss Diskettes

    What’s On The RSS Below are the files located on the diskette you received with this manual. Diskettes File Name File Type Description INSTALL.EXE Installation file Used to install the RSS. INSTALL.DAT Installation file Contains installation data. MCSINS.001 Compressed File that the installation program executable file uncompresses when it installs the RSS on your hard disk.
  • Page 13: Organizing Your Hard Disk

    Organizing Your It is important to spend some time early on deciding which types or groups of files should be located together in the same file directory. File Hard Disk directories can be created using the DOS MD or MKDIR command. You may want to organize your directories first by customer area, then by customer name and finally by radio model type, or perhaps in the reverse order.
  • Page 14: Starting The Rss

    Starting The RSS Create a Back-up Copy of RSS We recommend that you make a back-up copy of the RSS. To make a Diskette(s) back-up copy, follow these steps: 1. Insert the RSS diskette you received with this manual into drive A. 2.
  • Page 15 To install the RSS, follow the steps below: 1. Insert the RSS diskette into drive A. 2. Type A: (press Return). 3. At the A: prompt, type INSTALL. Note: After installing the RSS on a hard disk, you may notice new files with CFG or ODB extensions on your hard drive.
  • Page 16: The Banner Screen

    <DATE> Press Spacebar To Continue (C) Copyright Motorola Inc. 1992 - 1996. All rights reserved. The Version and Date on the BANNER screen above are not shown here. However, your RSS will show the actual version and date on the screen.
  • Page 17: Anatomy Of A Menu

    UPGRADE MENU TO DOS RSS Location ID Area In this area, you will find the words “MOTOROLA Radio Service Software” and a menu or screen path name for the current menu or screen shown on the display. Instruction Area As the name indicates, this area asks you to perform specific actions such as “Select Function, F1-F10”, “Use UP/DOWN arrows to scroll...
  • Page 18: Navigating Through The Rss

    Navigating Through Every action of the RSS is controlled by you through the use of formatted displays and function keys. The RSS Under each menu or screen title in this manual, you will find a sequence of F-keys (or function keys) such as .
  • Page 19: Anatomy Of A Screen

    Anatomy of a The only difference between a menu and a screen lies in the contents of the working area. Screen MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Type. Model: MAIN:CHANGE/VIEW:CONV:PERS Personality..1 CONVENTIONAL PERSONALITY ------------------------ Receive Only....Disabled Signalling....
  • Page 20: Changing A Field Value

    Changing A Field The keys commonly used in the RSS to change a field value and their respective functions are listed below. Value Tab or Enter Used to accept data currently in the field and move the prompt forward one field. If the entry is not accepted (that is, it is probably not a valid value), an error beep will sound.
  • Page 21: Complete Menu Mapping At A Glance

    Complete Menu The menu map below is a guide through the entire RSS. Mapping at a Glance MAIN MENU FLASHport HELP SERVICE GET/ SAVE/ PRINT MENU SETUP EXIT FILE CHANGE/VIEW UPGRADE PROGRAM MAINTENANCE Refer to the following page Create Directory path Delete Archive File Read Data From Radio Codeplug PC Configuration...
  • Page 22 Radio Wide Buttons, Switches, Display, Scan, Phone CHANGE/VIEW MAIN MENU Radio Wide Options VRM100 Options SECURE Options Emergency Options More Options Buttons, Switches, Menu Items Button/Rotary Configuration Switch Configuration Menu Item List Configuration Phone Lists and Options DTMF Access/Deaccess Codes Dial Options Scan Lists and Options Scan Options...
  • Page 23: Configuring Rss Computer Defaults

    COM port that will be used to communicate with the radio. Press F7 on the SERVICE SOFTWARE CONFIGURATION MENU to display the SCREEN COLORS screen. Here, you can specify the colors for your screen’s text, lines, background, and highlighted fields. MOTOROLA Radio Service Software Model: MAIN:CONFIGURATION SERVICE SOFTWARE CONFIGURATION HELP PC CONFIGURATION, Drives, Paths, Ports, etc.
  • Page 24 Setting Default Archive and You can set the drive name and path names for archive files you will Back-up Paths create later. Here’s how to set the default archive and back-up file paths: 1. Press F9 and then F3 at the MAIN MENU to bring up the CONFIGURE PATHS AND PORT screen.
  • Page 25: Main Menu

    Esc key to return to the MAIN MENU. For any problems not covered by this manual or the Radio Service Manual, contact your local Motorola field technical representative. MOTOROLA Radio Service Software Select Function F1 - F10.
  • Page 26 Note: An archive file can be accessed without a radio being connected. F5 - PRINT MENU Prints selected codeplug data. F6 - FILE MAINTENANCE Brings up a menu which allows you to easily create directories and delete files without exiting the RSS. F8 - FLASHport UPGRADE You must have FLASHport software installed on your computer in order to access this menu.
  • Page 27: How To Read The Codeplug

    How to Read the Follow the procedure below to read the codeplug: Codeplug 1. Start up the RSS. If you are not already at the MAIN MENU, press any key at the BANNER screen to access the MAIN MENU. 2. From the MAIN MENU, press F3; the GET/SAVE/PROGRAM MENU will be displayed.
  • Page 28: Service Software Configuration

    Service Software The SERVICE SOFTWARE CONFIGURATION screen can be accessed by pressing F9 at the MAIN MENU. Configuration MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:CONFIGURATION SERVICE SOFTWARE CONFIGURATION ------------------------------ F1 - HELP F2 - F3 - PC CONFIGURATION: Drives, Paths, Ports, etc.
  • Page 29: Configuring Paths And Port

    Configuring Paths From the MAIN MENU, press F9 and then F3 to access this screen. and Port MOTOROLA Radio Service Software Enter Path. Model: MAIN:CONFIGURATION:PC CONFIGURE PATHS AND PORT ------------------------ Archive Path:..FLASH Software Path:..C:\MRSS\MCS\UPGRADE Bootstrap Code Path & FileName:.C:\MRSS\MCS\UPGRADE\MCSBOOT.ENC SRIB Software Path &...
  • Page 30 Field Definitions Archive Path Enter the default directory path where archive files are to be located. The GET/SAVE – SAVE FILE function will default to this path. Note: Refer to the owner’s manual that came with your computer for a complete description of directories and path names.
  • Page 31 Memory Optimization This field is used to control Memory Optimization for the RSS. When enabled, Memory Optimization performs a memory cleanup for successive codeplug reads. This allows computers with a limited amount of available Random Access Memory (RAM) to perform a greater number of codeplug reads before experiencing possible system problems.
  • Page 32: Setting Screen Colors

    Setting Screen From the MAIN MENU, press F9 and then F7 to access this screen. Colors MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: MAIN:CONFIGURATION:SCREEN COLORS SCREEN COLORS ------------- MONITOR TYPE....Color TEXT......Black STATUS TEXT....Black MESSAGE TEXT....Black HIGHLIGHT......Red BACKGROUND....Light Gray...
  • Page 33 Field Definitions Monitor Type Use the UP/DOWN arrow keys to select either monochrome or color display depending on the display capability of your monitor. The default is Monochrome. Text Use the UP/DOWN arrow keys to select the desired color for screen text.
  • Page 34 Notes...
  • Page 35: Basic Radio Programming Tutorial

    Programming a The tutorial assumes that the RSS is up and running and that you are at the MAIN MENU. (Refer to Section 1 for the RSS installation Basic MCS 2000 procedure.) Remember that F1 displays help information about the Radio currently highlighted field or the current screen.
  • Page 36: High-Level Programming Flow

    High-Level Programming The overview of the flow of programming in this example is as follows: Flow 1. Read the radio. 2. Assign button/switch functions that differ from factory defaults. 3. Create a second scan list. (List members must not be filled in at this time.) 4.
  • Page 37 Read Current Radio’s Before you can program the MCS 2000 radio, you must first read and Personality (Codeplug) access the current radio’s personality (codeplug data). Follow these steps to read the codeplug: 1. At the MAIN MENU, press F3 to bring up the GET/SAVE MENU.
  • Page 38 Program Conventional Follow these steps to program conventional personalities: Personalities 1. From the MAIN MENU, press F4, F6 and then F3 to bring up the CONVENTIONAL PERSONALITY screen. 2. Press F2 and then F3 as many times as necessary to add the desired number of personalities.
  • Page 39 Program Zone/Channel Now that the personalities are programmed, assign them to switch Features positions on the ZONE/TALKGROUP (CHANNEL) ASSIGNMENT screen. 1. From the CHANGE/VIEW MENU, press F8 to access the ZONE/ TALKGROUP (CHANNEL) ASSIGNMENT screen. 2. Press F6 and then F3 as many times as necessary to add the desired number of channels.
  • Page 40 Program Personality Now that you have set values for all the features you want, it is time to Into Radio Codeplug actually program them into the radio. Program data into the radio’s codeplug only after creating or editing the radio ‘s codeplug data. Otherwise, the changes will be lost.
  • Page 41: Cloning Radios

    Cloning Radios Cloning is a process by which codeplug information is copied from one radio to another or to multiple others. In order for one radio to be cloned with information from another, they must be of the same model type and version. Radio codeplugs consist of both personality and tuning data.
  • Page 42 Note: You will receive an error message if cloning cannot be performed for any reason. Check all connections or refer to Appendix A for error codes and their explanations. 9. Once cloning is completed, make sure you are at the GET/SAVE/ PROGRAM MENU or MAIN MENU and then disconnect the radio.
  • Page 43: Service Menu Functions

    Service Menu Functions Servicing the Radio Now that the hardware and software installation is complete and the RSS is up and running, you are ready to personalize the radio(s). The Using the RSS following pages are constructed in such a manner that a qualified service technician can keep a radio at full capability throughout its design life by means of correct alignments and configurations.
  • Page 44: Service Menu

    Service Menu Press F2 at the MAIN MENU to access the SERVICE MENU. MOTOROLA Radio Service Software Select Function F1 - F10. Model: Read Radio Completed Successfully. MAIN:SERVICE SERVICE MENU ------------ - HELP - Transmitter Alignments - Receiver Alignments - Signalling Alignments...
  • Page 45 Function Key Descriptions F2 - Tx ALIGN Used to perform standard radio transmitter alignment procedures. (Transmitter Alignment) Standard periodic alignment procedures are performed from this menu. Note: Radio compensation/deviation adjustments must be made prior to performing the signalling deviation adjustment. No adjustments are required for DPL, PL or Trunking Connect Tone deviation.
  • Page 46: Transmitter Alignment Menu

    Transmitter From the MAIN MENU, press F2 twice to access the TRANSMITTER ALIGNMENT MENU. Alignment Menu MOTOROLA Radio Service Software Select Function F1 - F10. Model: ...SERVICE:TRANSMITTER ALIGNMENT MENU TRANSMITTER ALIGNMENT MENU -------------------------- - HELP - Reference Oscillator - Tx Power...
  • Page 47 Function Key Descriptions F2 - REF OSC Refer to your Radio Service Manual for the Reference Oscillator (Reference Oscillator Alignment) Alignment procedure. This procedure should be attempted only by qualified service personnel. F3 - Tx PWR Refer to your Radio Service Manual for the Transmitter Power (Transmit Power Alignment) Alignment procedure.
  • Page 48: Reference Oscillator Alignment

    Reference From the MAIN MENU, press F2 three times to bring up the REFERENCE OSCILLATOR ALIGNMENT screen. Oscillator Alignment MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: ...REFERENCE OSCILLATOR REFERENCE OSCILLATOR -------------------- Frequency Current Value --------- ------------- 177.9875...
  • Page 49: Transmit Power Alignment

    Transmit Power From the MAIN MENU, press F2 twice and then F3 to access the TRANSMIT POWER ALIGNMENT screen. Alignment MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: ...TRANSMIT POWER TRANSMIT POWER -------------- Current Value New Softpot Value...
  • Page 50 Function Key Descriptions F6 - TOGGLE PTT Alternately keys and de-keys the radio being serviced. F8 - PROGRAM VALUE Programs the selected value into the radio. Field Definitions New Softpot Value High Pwr This is the high power attenuation (softpot) for this frequency. The status bar shows this setting in relation to the minimum and maxi- mum settings.
  • Page 51: Transmit Deviation Balance Alignment

    Transmit Deviation From the MAIN MENU, press F2 twice and then F4 to access this screen. Balance Alignment MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: .TRANSMIT DEVIATION BALANCE (COMPENS) TRANSMIT DEVIATION BALANCE (COMPENSATION) ----------------------------------------- Current Frequency...
  • Page 52 Programming Procedure 1. Press F6 to key up the radio. (The radio’s RF output must be terminated into a 50 ohm load.) 2. Apply the appropriate signal according to instructions in your Radio Service Manual. 3. While transmitting, modify the Balance Attenuator setting using the UP/DOWN arrow keys.
  • Page 53: Transmit Deviation Limit Alignment

    Transmit Deviation From the MAIN MENU, press F2 twice and then F5 to access the TRANSMIT DEVIATION LIMIT screen. Limit Alignment MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: ...TRANSMIT DEVIATION LIMIT TRANSMIT DEVIATION LIMIT ------------------------ Current...
  • Page 54 Function Key Descriptions F6 - TOGGLE PTT Alternately keys and de-keys the radio being serviced. F8 - PROGRAM VALUE Programs the selected value into the radio. Field Definitions New Softpot Value This is the VCO softpot value for this frequency. The status bar shows the relationship between this setting and the minimum and maximum settings.
  • Page 55: Transmit Deviation Limit Alignment: Reference Softpot

    From the MAIN MENU, press F2 twice and then F6 to access the TRANSMIT DEVIATION LIMIT: REFERENCE SOFTPOT screen. Limit Alignment: Reference Softpot MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: ..TRANSMIT DEVIATION LIMIT: REFERENCE TRANSMIT DEVIATION LIMIT: REFERENCE...
  • Page 56 Function Key Descriptions F6 - TOGGLE PTT Alternately keys and de-keys the radio being serviced. F8 - PROGRAM VALUE Programs the selected value into the radio. Field Definitions New Softpot Value This is the softpot value for this frequency. The status bar shows the relationship between this setting and the minimum and maximum settings.
  • Page 57: Secure Transmit Deviation

    SECURE Transmit From the MAIN MENU, press F2 twice and then F8 to access the SECURE TRANSMIT DEVIATION screen. Deviation MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: ...SECURE TRANSMIT DEVIATION SECURE TRANSMIT DEVIATION ------------------------- Frequency Current Value...
  • Page 58: Transmit Current Limit

    Transmit Current From the MAIN MENU, press F2 twice and then F9 to access the TRANSMIT CURRENT LIMIT screen. Limit MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: ...CURRENT LIMIT CURRENT LIMIT ------------- Frequency Current Value New Softpot Value...
  • Page 59 Programming Procedure 1. Press F6 to key up the radio. (The radio’s RF output must be terminated into a 50 ohm load.) 2. While transmitting, measure the current drain on the first test frequency. 3. Press F6 to de-key the radio. 4.
  • Page 60: Receive Alignment Menu

    Receive Alignment From the MAIN MENU, press F2 and then F3 to access this screen. Menu MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:SERVICE:RECEIVER ALIGNMENT MENU RECEIVER ALIGNMENT MENU ----------------------- - HELP - Front End Bandpass Filter - Rated Audio Calibration - Squelch Attenuator (12.5kHz)
  • Page 61: Front-End Filter Alignment

    Front-End Filter From the MAIN MENU, press F2, F3 and then F2 to access this screen. Alignment MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: ...FRONT END FILTER (VHF & UHF ONLY) FRONT END FILTER (VHF & UHF ONLY)
  • Page 62: Rated Audio Alignment

    Rated Audio From the MAIN MENU, press F2, F3 and then F3 to access this screen. Alignment MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: ..RECEIVER ALIGNMENT MENU:RATED AUDIO RATED AUDIO ----------- Frequency Current Value New Softpot Value...
  • Page 63: Squelch Attenuator (12.5 Khz) Alignment

    Squelch Attenuator From the MAIN MENU, press F2, F3 and then F4 to access this screen. (12.5 kHz) Alignment MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: ...SQUELCH (12.5kHz) SQUELCH (12.5kHz) ----------------- Current Frequency Value New Softpot Value...
  • Page 64: Squelch Attenuator (20 Khz) Alignment

    Squelch Attenuator From the MAIN MENU, press F2, F3 and then F5 to access this screen. (20 kHz) Alignment MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: ...SQUELCH (20kHz) SQUELCH (20kHz) --------------- Current Frequency Value New Softpot Value...
  • Page 65: Squelch Attenuator (25/30 Khz) Alignment

    Squelch Attenuator From the MAIN MENU, press F2, F3 and then F6 to access this screen. (25/30 kHz) Alignment MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: ...SQUELCH (25/30kHz) SQUELCH (25/30kHz) ------------------ Current Frequency Value New Softpot Value...
  • Page 66: Rssi Alignment

    RSSI Alignment From the MAIN MENU, press F2, F3 and then F7 to access this screen. MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: ...RECEIVER ALIGNMENT MENU:RSSI ALGN RSSI ALIGNMENT -------------- Frequency DEFAULT RSSI..101 --------- RSSI....0 177.9375...
  • Page 67: Secure Receive Discriminator Level

    SECURE Receive From the MAIN MENU, press F2, F3 and then F8 to access this screen. Discriminator Level MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: ...SECURE RECEIVE DISCRIMINATOR LEVEL SECURE RECEIVE DISCRIMINATOR LEVEL ---------------------------------- Frequency Current Value...
  • Page 68: Vrm500 Receive Discriminator Level

    VRM500 Receive From the MAIN MENU, press F2, F3 and then F9 to access this screen. Discriminator Level MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: ...VRM500 RX DISCRIMINATOR LEVEL VRM500 RX DISCRIMINATOR LEVEL ----------------------------- Frequency Current Value...
  • Page 69: Signalling Alignment Menu

    Signalling From the MAIN MENU, press F2 and then F4 to access this screen. Alignment Menu MOTOROLA Radio Service Software Select Function F1 - F10. Model: ...SERVICE:SIGNALLING ALIGNMENT MENU SIGNALLING ALIGNMENT MENU ------------------------- - HELP - DTMF - High Speed...
  • Page 70: Dtmf Transmit Deviation

    DTMF Transmit From the MAIN MENU, press F2, F4 and then F2 to access the DTMF TRANSMIT DEVIATION screen. Deviation MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: ...DTMF TRANSMIT DEVIATION DTMF TRANSMIT DEVIATION ----------------------- Frequency Current Value...
  • Page 71: Transmit Signalling: High Speed

    From the MAIN MENU, press F2, F4 and then F3 to access the TRANSMIT SIGNALLING: HIGH SPEED screen. Signalling: High Speed MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: ...TRANSMIT SIGNALLING: HIGH SPEED TRANSMIT SIGNALLING: HIGH SPEED...
  • Page 72: Transmit Signalling: Mdc-1200

    Transmit Signalling: From the MAIN MENU, press F2 and then F4 twice to access the DTMF TRANSMIT SIGNALLING: MDC 1200 screen. MDC-1200 MOTOROLA Radio Service Software Use UP/DOWN Arrows To Adjust Softpot. Model: ...TRANSMIT SIGNALLING: MDC 1200 TRANSMIT SIGNALLING: MDC 1200...
  • Page 73 Field Definitions New Softpot Value This is the working MDC-1200 Attenuator value. The status bar shows the relationship between this setting and the minimum and maximum settings.
  • Page 74: Controller Board Initialization

    Controller Board From the MAIN MENU, press F2 and then F9 to access the CONTROLLER BOARD INITIALIZATION screen. Initialization MOTOROLA Radio Service Software Model: MAIN:SERVICE:CBI CONTROLLER BOARD INITIALIZATION ------------------------------- Serial Number....###ABC?### Model Number...XXXXXXXXXXXX FLASHcode.....XXXXX-XXXXX-X HELP PROGRAM EXIT RADIO This screen can be accessed from the SERVICE MENU only when a CBI- programmed radio is connected to the computer via the RIB.
  • Page 75 Function Key Descriptions F8 - PROGRAM RADIO Programs the selected value into the radio. The RSS will display the following message: “!!!Warning!!! Continue to program the following serial number into the CBI radio: <Serial Number>.” Press F2 to proceed with the initialization and F10 to cancel. Note: If communication with the radio fails, the RSS will display a pop-up error message.
  • Page 76 Notes...
  • Page 77: Get/Save/Program Menu Functions

    Get/Save/Program Menu Functions This section describes all the functions available from the GET/SAVE/ PROGRAM MENU. To guide you through these functions, GET/SAVE/ PROGRAM-related menus and screens are shown with their respective programming procedures from the MAIN MENU, function key descriptions and field definitions. Note: All functions (supported and unsupported) will be displayed in the menu’s working area.
  • Page 78: Get/Save/Program Menu

    Get/Save/Program At the MAIN MENU, press F3 to bring up this screen. Menu MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:GET/SAVE/PROG GET/SAVE/PROGRAM MENU --------------------- - HELP - Read Data from Radio Codeplug (Requires RIB) - Get Codeplug Data from Archive Disk File...
  • Page 79 Function Key Descriptions F2 - READ RADIO Reads the information (data) stored in the radio codeplug (EEPROM) (Read Radio Codeplug) and transfers it to computer memory. A radio and RIB must be properly connected to the computer and power turned on before you press this key. The status of the READ operation will be displayed at the bottom of the screen.
  • Page 80: Reading Codeplug Data From Radio (Requires Rib)

    Reading Codeplug From the MAIN MENU, press F3 and then F2 to access this screen. Data From Radio (Requires RIB) MOTOROLA Radio Service Software Model: MAIN:GET/SAVE/PROG:READ RADIO READ RADIO CODEPLUG ------------------- Reading Codeplug Block 1 of 9 100% |----+----+----+----+----+----+----+----+----+----+----+----| You may read the codeplug from the radio or from the archive disk.
  • Page 81: Get Codeplug Data From Archive File

    Get Codeplug Data From the MAIN MENU, press F3 twice to access this screen. From Archive File MOTOROLA Radio Service Software Press Enter to Select File Name. Model: Press F8 to Load Codeplug File. MAIN:GET/SAVE/PROG:GET FILE Archive:C:\MRSS\MCS\ARCHIVE ARCHIVE FILES ------------- A466ASNO.331...
  • Page 82: Get Tcms Codeplug Update Disk File

    Get TCMS From the MAIN MENU, press F3 then F4 to access this screen. Codeplug Update Disk File MOTOROLA Radio Service Software Enter Path Model: MAIN:GET/SAVE/PROG:MERGE TCMS Path S/N: ....MERGE FORM ---------- HELP Update EXIT Data This screen is used to update the codeplug information with trunking information from the TCMS (Trunking Code Management System).
  • Page 83: Clone Radio

    Clone Radio From the MAIN MENU, press F3 and then F5 to access the TRUNKED CLONING screen. MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:GET/SAVE/PROG:CLONE RADIO NEW TRUNKING IDS Serial Number.... ---------------- System Type I II/IIi Pers #...
  • Page 84 Full Cloning System keys for all Trunked Systems in the radio are required to perform a full clone. Follow the steps below for Full Cloning: 1. Press F2 at the GET/SAVE/PROGRAM MENU to read the radio codeplug to be cloned. That is the “source” codeplug. An archive file may also be used as the “source”.
  • Page 85 3. Enter the serial number of the radio to be cloned or press F2 to read the serial number from the connected radio. At this point, you will have a codeplug image for the “target” radio which contains Conventional data and Radio wide data from the “source”...
  • Page 86: Save Codeplug Data To An Archive File

    Save Codeplug From the MAIN MENU, press F3 and then F7 to access this screen. Data to an Archive File MOTOROLA Radio Service Software Enter Archive Path. Model: ..GET/SAVE/PROG:CLONE RADIO:SAVE FILE Archive: SAVE CODEPLUG DATA TO ARCHIVE FILE ---------------------------------- Archive Filename..A466ASNO.331 Model Number..M01KHH9PW5AN...
  • Page 87 Field Definitions Archive File Name This is the DOS name of the archive file which defaults to the serial number of the radio. The standard DOS file naming convention must be used, that is, the file name must be a one- to eight-character alphanumeric name with a one- to three-character alphanumeric extension (xxxxxxxx.yyy).
  • Page 88: Program The Radio's Codeplug (Requires Rib)

    Program the Radio’s From the MAIN MENU, press F3 and then F8 to bring up this screen. Codeplug (Requires RIB) MOTOROLA Radio Service Software Model: MAIN:GET/SAVE/PROG:READ RADIO PROGRAM RADIO CODEPLUG ---------------------- Programming Codeplug Block 1 of 34 100% |----+----+----+----+----+----+----+----+----+----+----+----| This screen allows you to program the radio. A radio interface box (RIB) is required to perform this operation.
  • Page 89: Programming History

    Programming History From the MAIN MENU, press F3 and then F9 to access this screen. MOTOROLA Radio Service Software Information Only. These Fields Cannot Model: be Changed. MAIN:GET/SAVE/PROG:HISTORY PROGRAMMING HISTORY ------------------- Model Number..M01KHH9PW5AN Software Option....H38 Serial Number....Radio Software Version...
  • Page 90 Program Source This is a view-only field. Displays the source of the most recent internal codeplug programming: Programmed by a standard RSS. Factory Programmed in the factory. Labtool Programmed using a special development RSS. FTR Key Programmed using a FTR (Field Technical Representative) hardware key.
  • Page 91: Change/View Menu Functions

    Change/View Menu Functions This section describes all the functions available from the CHANGE/VIEW MENU. To guide you through these functions, CHANGE/VIEW-related menus and screens are shown with their respective RSS locations from the MAIN MENU, function key descriptions and field definitions. Note: All functions (supported and unsupported) will be displayed in the menu’s working area.
  • Page 92 Trunking Systems, Personalities, Call Lists, Options Trunking Radio Wide Options SmartZone Environment VOC Options Trunking Systems: System ID, Control Channels, etc. Control Channel/Channel Assignment More Options Trunking Personality: Talk Groups, Emergency Options Talkgroups Emergency Options More Options Preferred Sites VRM100 or VRM500 Trunk Options Trunking Call List Data Conventional Systems, Personalities, MDC, Options Conventional Radio Wide Configuration...
  • Page 93: Change/View Menu

    Change/View Menu Press F4 at the MAIN MENU to access the CHANGE/VIEW MENU. MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:CHANGE/VIEW CHANGE/VIEW MENU ---------------- - HELP - Radio Wide Buttons, Switches, Display, Scan, Phone - Trunking Systems, Personalities, Call Lists, Options...
  • Page 94 Function Key Descriptions F3 - RADIO CONFIG Used to change or view radio parameters and options that affect (Radio Wide Configuration) overall radio operation (including Conventional and Trunking) such as button and volume default settings. Typically, when you begin to edit a codeplug, you should come to this menu and configure Radio wide options first by working your way through the screens below this menu.
  • Page 95: Radio Wide Configuration Menu

    Radio Wide From the MAIN MENU, press F4 and then F3 to access this menu. Configuration Menu MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:CHANGE/VIEW:CONFIG RADIO WIDE CONFIGURATION MENU ----------------------------- - HELP - Radio Wide Options - Buttons, Switches, Menu Items...
  • Page 96: Radio Wide Options

    Radio Wide Options From the MAIN MENU, press F4, F3 and then F2 to access this screen. MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: MAIN:CHANGE/VIEW:CONFIG:RADIO OPTIONS RADIO WIDE OPTIONS ------------------ Alert Tones....Enabled Control Station Equipped.Disabled Min Alert Tone Volume..128 VRM100 Capable....Enabled...
  • Page 97 Field Definitions Alert Tones Enables or disables the radio’s Alert Tones. The default is Enabled. Min Alert Tone Volume This field will be visible only if the Alert Tones field is set to Enabled. Enter or scroll to select the desired volume level. This is the minimum alert tone volume level the radio will use.
  • Page 98 VRM500 and Control Station Equipped fields to Enabled. Use the UP/DOWN arrow keys to enable/disable VRM100 capabilities. When the VRM100 modem is connected to the MCS 2000 radio, it can be used to transfer data between remote units and a single central unit by utilizing the Trunking network.
  • Page 99 enabled. Similarly, if this field is set to Enabled, you will not be able to set the VRM100 and Control Station Equipped fields to Enabled. Use the UP/DOWN arrow keys to enable/disable the radio’s VRM500 capabilities. If the VRM500 Capable feature is enabled, the radio can be connected to the VRM500 modem which operates in ‘data near trunking’...
  • Page 100 Note: If this field is set to less than one second, the other Long Press buttons will still take one second to activate. RSS Setting for Long Press Long Press Button Timer Emergency Activation Timer Button Duration Field 250 ms 1000 ms 125 ms 500 ms...
  • Page 101 SECURE Equipped This field will not be visible unless a SECURE-capable radio has been read. This field is used to enable SECURE operation for radios equipped with the SECURE hardware option. Setting this field to Yes will allow you to access the SECURE OPTIONS screen.
  • Page 102: Vrm100 Options

    VRM100 Options From the MAIN MENU, press F4, F3, F2 and then F5 to access this screen. DCBE MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: ...CONFIG:RADIO OPTIONS:VRM OPTIONS VRM100 OPTIONS -------------- Disconnect On Data....Disabled Data On Failsoft....Enabled Speaker Unmute On Data....Disabled...
  • Page 103 Channel Grant Polarity Use the UP/DOWN arrow keys to select Active High or Active Low. The value in this field determines the polarity of output signal CG. The default is Active High. Data Mode Request Polarity Use the UP/DOWN arrow keys to select Active High or Active Low. The value in this field determines the polarity of the input signal DMR.
  • Page 104: Radio Wide Secure Options

    Radio Wide SECURE From the MAIN MENU, press F4, F3, F2 and F6 to access this screen. Options DCBF MOTOROLA Radio Service Software Enter or Scroll to Select Value. Model: ..CONFIG:RADIO OPTIONS:SECURE OPTIONS RADIO WIDE SECURE OPTIONS ------------------------- XL IC Present......Yes Tx Clear Alert Tones.....Enabled...
  • Page 105 Non-XL Scan Unsquelch Use the UP/DOWN arrow keys to select the Non-XL Scan Unsquelch Duration (ms) Duration. When scanning for coded transmissions, this field determines the period of time that the radio will wait for a Non-XL (Cipher Feedback) encrypted signal to be detected following a Carrier Detect.
  • Page 106: Radio Wide Emergency Options

    Radio Wide From the MAIN MENU, press F4, F3, F2 and then F7 to access this screen. Emergency Options DCBG MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: ...CONFIG:RADIO OPTIONS:EMERG OPT RADIO WIDE EMERGENCY OPTIONS ---------------------------- Silent Alarm.....Enabled Unmute Option..Enabled...
  • Page 107 feedback to the person initiating the emergency state via code words, without drawing undesirable attention. The factory default is Disabled. Channel Delay (sec) Use the UP/DOWN arrow keys to select the Emergency Channel Delay or enter a value directly. The radio must be on a channel for the time specified here before it can transmit an emergency signal.
  • Page 108: More Radio Wide Options

    More Radio Wide From the MAIN MENU, press F4, F3, F2 and then F9 to access this screen. Options DCBI MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: ...CONFIG:RADIO OPTIONS:OPTIONS RADIO WIDE OPTIONS ------------------ Mic AGC....Disabled Car Radio Mute....Enabled Car Radio Mute Timer (sec)..10...
  • Page 109 Car Radio Mute Timer (sec) This field is visible only if the Car Radio Mute field is set to Enabled. Use the UP/DOWN arrow keys or directly enter a value for the Car Radio Mute Timer. When this feature is enabled, the car radio/cassette remains muted after a voice transmit or receive is completed for the period of time specified in this field in order to avoid unmuting in the middle of a conversation.Valid values range from 1 to 60 seconds in...
  • Page 110 6. Read the radio using the RSS. 7. Set this field to Fixed. 8. Reprogram the radio using the RSS. 9. Save the codeplug as an archive file. 10.You may now clone the codeplug to all radios in your fleet. The factory default is Operator Selectable.
  • Page 111: Radio Wide Features Configuration Menu

    Radio Wide At the MAIN MENU, press F4, and then F3 twice to access this screen. Features Configuration Menu MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:CHANGE/VIEW:CONFIG:FEATURES RADIO WIDE FEATURES CONFIGURATION MENU -------------------------------------- - HELP - Button/Rotary Configuration...
  • Page 112: Radio Wide Button Configuration

    Radio Wide At the MAIN MENU, press F4, F3 twice, and then F2 to access this screen. Button Configuration MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. DCCB Model: M01KHH9PW5AN ..CHANGE/VIEW:CONFIG:FEATURES:BUTTONS _ PWR ___[Unpr]___[Unpr]_____ TOP BUTTONS HAND HELD...
  • Page 113 MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: M01KHM9PW5AN ..CHANGE/VIEW:CONFIG:FEATURES:BUTTONS CONTROL HEAD - E [ChDn] [ChUp] [ZnUp] ____ CONTROL HEAD BUTTONS [ZnDn] | CHAN | \____/ [Unpr] [Unpr] [Unpr] [Unpr] [Unpr] [Unpr] [Unpr] [ Sel] [Menu] MICROPHONE BUTTONS...
  • Page 114 Button Function Description Blank This button is not assigned to any feature of the radio. The Direct Call Alert (CA1, CA2, ...) buttons allow instant access to the radio's Call Alert feature. When the user presses a button programmed to CA #, the radio will enter the Call Alert feature and transmit the list member corresponding to the button's Index field.
  • Page 115 LPwr Toggles the transmitting power from low to high. Menu Used to pick functionalities which are not programmed into a designated button. The Direct Message (MG1, MG2, ...) buttons allow instant access to the radio's Message feature. When a button programmed to MG # is pressed, the radio will check to see if it is currently in a personality which has Message enabled.
  • Page 116 The Private Call (PC1, PC2, ...) buttons allow instant access to the radio's Private Call feature. Pressing a button programmed to PC # will cause the radio to enter the Private Call feature at the list member corresponding to the button's Index field. The PTT must be pressed to initiate the private call.
  • Page 117: Radio Wide Switch Configuration

    Radio Wide At the MAIN MENU, press F4 and then F3 three times to access this screen. Switch Configuration MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. DCCC Model: ...CONFIG:FEATURES:SWITCHES RADIO WIDE SWITCH CONFIGURATION ------------------------------- Switch Labels Feature...
  • Page 118: Radio Wide Menu Item Configuration

    Radio Wide At the MAIN MENU, press F4, F3 twice, and then F4 to access this screen. Menu Item Configuration MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. DCCD Model: ...CHANGE/VIEW:CONFIG:FEATURES:MENUS RADIO WIDE MENU ITEM CONFIGURATION ---------------------------------- Conv Item...
  • Page 119 Field Definitions Conv Item Use the UP/DOWN arrow keys to select the desired menu function. Press F2 to add and F4 to delete the highlighted Conventional item. Depending on your radio version and model number, you will be able to choose from some or all of the functions listed below.
  • Page 120 Note: Do NOT duplicate a function on multiple controls (on a button and a switch, or a button and a menu for instance). This may cause the radio to malfunction and confuse the operator.
  • Page 121 Trunk Item Use the UP/DOWN arrow keys to select the desired menu function. Use F7 to add, and F9 to delete, Trunking Menu functions. Depending on your radio version and model number, you will be able to choose from all or some of the functions listed below.
  • Page 122 SITE Change AMSS or SmartZone Site. For the radio to function properly, this feature must also be enabled on the TRUNKING SYSTEM screen (F4/F4/F3). Display the last acknowledged status to be transmitted and send status. TX IN Enable/disable Tx Inhibit. VIEW View Phone/Scan lists.
  • Page 123: Dek Configuration

    DEK Configuration At the MAIN MENU, press F4, F3 twice, and then F5 to access this screen. DCCE MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: MAIN:CHANGE/VIEW:CONFIG:FEATURES:DEK Number of DEK boxes...3 DEK BUTTON CONFIGURATION DEK C [Blnk ] [Blnk ] [Blnk ] [Blnk ] [Blnk ] [Blnk ] [Blnk ] [Blnk ]...
  • Page 124: Phone Configuration

    Phone At the MAIN MENU, press F4, F3 and then F4 to access this screen. Configuration MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: MAIN:CHANGE/VIEW:CONFIG:PHONE PHONE CONFIGURATION ------------------- Man Acc Live Dialing..Disabled Phone Num Display Format..None Phone Number...
  • Page 125 Phone Num Display Format Use the UP/DOWN arrow keys to select the format for displaying telephone numbers. Valid choices are USA and None. If set to USA, the phone numbers will be assumed to be in the format (area) code/ number.
  • Page 126: Dtmf Access/Deaccess Codes

    DTMF Access/ At the MAIN MENU, press F4, F3, F4 and then F8 to access this screen. Deaccess Codes DCDH MOTOROLA Radio Service Software Enter Code. Model: MAIN:CHANGE/VIEW:CONFIG:PHONE:CODES DTMF ACCESS/DEACCESS CODES -------------------------- Access Code Deaccess Code ----------- ------------- *1P# *1P#...
  • Page 127 Field Definitions Access Code Enter the code that will be used to access the phone line. Some Conventional interconnect systems require a “*” to access the telephone line. Other systems require a multi-digit Access Code which consists of 1 to 4 digits and may or may not contain a “*”. Multi-digit Access Codes are used to prevent unauthorized subscriber units from accessing the interconnect system.
  • Page 128: Dialing Options

    Dialing Options At the MAIN MENU, press F4, F3, F4 and then F9 to access this screen. DCDI MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: MAIN:CHANGE/VIEW:CONFIG:PHONE:DTMF DIALING OPTIONS --------------- Phone Dialing. Delayed Buffered DTMF Pause Time (ms)..1000 DTMF Digit Hangtime (ms)..1000...
  • Page 129 Initial Delay (ms) Use the UP/DOWN arrows to select the pre-time for DTMF signalling or the length of time that carrier is transmitted before the DTMF digit is transmitted. Valid selections are 0 (zero) to 6375 ms in 25-ms increments. The default is 250 ms.
  • Page 130: Radio Wide Scan Lists And Options

    Radio Wide Scan From the MAIN MENU, press F4, F3 and then F5 to access this screen. Lists and Options MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: Page 1 of 2 MAIN:CHANGE/VIEW:CONFIG:SCAN Scan List.....1 SCAN LIST...
  • Page 131 Field Definitions Scan List Use the UP/DOWN arrow keys to select a specific scan list, or use the F3/F4 function keys to scroll through the lists. Each mode has a unique scan list. Each Conventional and Trunking personality may have a unique scan list. The scan lists defined on this screen are assigned on the CONVENTIONAL and TRUNKING PERSONALITY screens.
  • Page 132 Priority 1 Member This field is visible only when the Priority 1 Type field is set to Fixed or OP/ SEL. Use the UP/DOWN arrow keys to select the Scan member which has First Priority in scan selection. The channel number may also be entered directly.
  • Page 133 Note: If the field displays “???”, an invalid channel condition exists. Trunking System ID (not shown) This field is visible only if the Scan Type field is set to Priority Monitor or Subfleet. Use the UP/DOWN arrow keys to select the Trunking System this personality is to use.
  • Page 134: Radio Wide Scan Options

    Radio Wide Scan From the MAIN MENU, press F4, F3, F5 and then F8 to access this screen. Options DCEH MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: MAIN:CHANGE/VIEW:CONFIG:SCAN:OPTIONS SCAN OPTIONS ------------ RADIO WIDE CONVENTIONAL ---------- ------------ Nuisance Mode Delete..Disabled...
  • Page 135 Rx Hold Time (sec) Use the UP/DOWN arrow keys to select the amount of time the radio remains on a channel after a message has been received before scanning resumes. Valid entries range from 0 (zero) to 255 seconds in one-second increments.
  • Page 136 Priority Chan Marking Use the UP/DOWN arrow keys to enable/disable this feature. When this option is enabled and the radio is in Priority Scan mode, the radio checks the channel for activity and proper PL. If the channel has Carrier but the wrong PL or no PL, the channel is marked so that the radio will not check a second time for the proper PL.
  • Page 137: Radio Wide Display Options

    Radio Wide Display From the MAIN MENU, press F4, F3 and then F6 to access this screen. Options MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: MAIN:CHANGE/VIEW:CONFIG:DISP DATA RADIO WIDE DISPLAY OPTIONS -------------------------- Text Justification..Left Alt Display Time (ms)..1000 Temp Msg Display Time (ms)..1000...
  • Page 138 Slow Scroll Rate (ms) Use the UP/DOWN arrow keys to select the Slow Scroll Rate, the rate at which the display will slow scroll through a list. The radio will first slow scroll and then fast scroll after the slow scroll count expires. Valid entries are 250 to 6250 ms in 250-ms increments.
  • Page 139 Receive and the current channel when it unmutes on an emergency call. For eight-character display models, “EMER RCV” will be displayed. Emergency must be enabled on each Trunking personality on the EMERGENCY DATA CONFIGURATION screen (F4/F4/F4/F8) if your radio supports the emergency feature. The default is Disabled.
  • Page 140: Radio Wide Display More Options

    Radio Wide Display From the MAIN MENU, press F4, F3, F6, and then F9 to access this screen. More Options DCFI MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: ...CONFIG:DISP DATA:MORE OPTIONS RADIO WIDE DISPLAY MORE OPTIONS ------------------------------- Caller ID....
  • Page 141: Alarm Options

    Alarm Options From the MAIN MENU, press F4, F3, and then F7 to access this screen. MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: MAIN:CHANGE/VIEW:CONFIG:ALARM OPTIONS ALARM OPTIONS ------------- Horn And Lights.... Enabled Permanent Horn & Lights...Disabled Alarm Rearm Option..Disabled...
  • Page 142 Notes...
  • Page 143: Trunking Menu

    Trunking Menu From the MAIN MENU, press F4 twice to access this screen. MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:CHANGE/VIEW:TRUNKING TRUNKING MENU ------------- F1 - HELP F2 - Trunking Radio Wide Options F3 - Trunking Systems: System ID, Control Channels, etc.
  • Page 144: Trunking Radio Wide Options

    Trunking Radio From the MAIN MENU, press F4 twice and then F2 to access this screen. Wide Options MOTOROLA Radio Service Software Enter or Scroll to Select Value. Model: ...CHANGE/VIEW:TRUNKING:WIDE OPTIONS TRUNKING RADIO WIDE OPTIONS --------------------------- Telephone Interconnect..Half Duplex ISW Window Adjust....9B Auto Dial Holdoff (ms)....2000...
  • Page 145 0 (zero) to FFFF in increments of 1. The default varies according to radio bandsplit. Do NOT modify this field unless you are a Motorola Field Technical Representative or unless you understand Trunking system timing and are absolutely certain that your modification is correct.
  • Page 146: Smartzone Environment

    SmartZone From the MAIN MENU, press F4 twice and then F2 twice to access this screen. Environment DDBB MOTOROLA Radio Service Software Enter or Scroll to Select Value. Model: ..WIDE OPTIONS:SMARTZONE ENVIRONMENT SMARTZONE ENVIRONMENT ----------- Failsoft Inactivity (sec)..120 Filter Constant K1....7 Busy Override Delay (sec)..4...
  • Page 147 Domain: {n: 60 <= n <= 255}. Note: RSSI or Received Signal Strength Indication refers to the strength of the current signal. Although the MCS 2000 is a companion to the MTS 2000 portable, the RSSI threshold constants and site switching characteristics are not the same.
  • Page 148 RSSI Good Threshold Use the UP/DOWN arrows to make your selection or enter a value directly. In the RSSI sampling scheme, RSSI values are separated into four levels: poor, acceptable, good and excellent. This value specifies the acceptable/good boundary. Domain {L: 00 <= L <= FF}. RSSI Excellent Threshold Use the UP/DOWN arrows to make your selection or enter a value directly.
  • Page 149 quality. All levels except GOOD will try to switch to a site of this audio quality. Audio Quality Level Excellent Excellent Threshold Good Audio Level Quality Good Threshold Acceptable Acceptable Threshold Poor switches to: Note: If preferred sites are programmed in your radio, the radio will always search for and switch to a preferred site with an ACCEPTABLE or higher RSSI.
  • Page 150 where the domain of K is {K: K = K1, K2, K3} and 0 (no filter) <= K3 <= K2 <= K1 <= 9 (heavily damped filter). Used when less than 8 seconds elapse between RSSI samples. Used when between 8 and 16 seconds elapse between RSSI samples.
  • Page 151: Voice-On-Control (Voc) Options

    Voice-On-Control From the MAIN MENU, press F4 twice, F2 and then F3 to access this screen. (VOC) Options DDBC MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: ...TRUNKING:WIDE OPTIONS:VOC OPTIONS VOC OPTIONS ----------- VOC Capable.....Disabled RSSI Acceptable Threshold.....61 VOC Site Lock Time (sec)....60...
  • Page 152 VOC Site Lock Time (sec) Enter the desired value directly or use the UP/DOWN arrow keys to scroll through the available choices. This field defines the maximum time that a radio will remain locked onto a Voice-on-Control Site before it will attempt to lock on to another site (and possibly enter an out-of-range state).
  • Page 153: Trunking Systems

    Trunking Systems From the MAIN MENU, press F4 twice and then F3 to access these screen. MOTOROLA Radio Service Software Enter or Scroll to Select Value. Model: M01UGN6PW6AN MAIN:CHANGE/VIEW:TRUNKING:SYSTEM System.....1 TRUNKING SYSTEM --------------- System Key ....Disabled System Type.....I UNIVERSAL ID....1 System ID....0001...
  • Page 154 Trunking System is Type II or IIi, the individual ID is a four-digit hexadecimal number. Type I The original MOTOROLA Trunked signalling protocol. Type II An enhanced version of the original protocol that provides additional fleet management flexibility for a given system via an expanded signalling format.
  • Page 155 Wide Area Coverage Automatic Multiple Site Select. Local AMSS Local Automatic Multiple Site Select. SmartZone Motorola system for wide area roaming. Disabled Disable wide area coverage. Up to four control channels are used for standard trunking operation and up to eight are used for WAC AMSS, regardless of the number listed on the Control Channel Screen (F4/F4/F3/F6).
  • Page 156 Affiliation Type (Type II/IIi Only) Use the UP/DOWN arrow keys to select the desired Affiliation Type. Automatic The radio will immediately affiliate with the central controller as soon as it is turned on and will automatically re-affiliate each time the talkgroup is changed (that is, if the selected talkgroup does not match last affiliated talkgroup).
  • Page 157 Universal ID (Type I Only) Enter the desired ID directly. When Trunking Type I is selected, a Universal ID is used. All individual calls (Phone, Private Call, and Call Alert) will be received if they are addressed to the Universal ID, even though the operator might have selected another personality in that system.
  • Page 158 Individual ID A system key or FTR key is required to access this field. Enter the Trunking Individual ID in hexadecimals. The Individual ID is a number that uniquely identifies an individual radio on a system (or personality for Type I). Type I systems have a unique ID for each personality. For Type II/IIi radios, valid IDs range between 1 and FFFF.
  • Page 159: Channel Assignment Data (Uhf/Vhf Models Only)

    Channel From the MAIN MENU, press F4 twice, F3 and then F6 to access this screen. Assignment Data (UHF/VHF models MOTOROLA Radio Service Software Enter or Scroll to Select System. only) Model: DDCF ...TRUNKING:SYSTEM:CHAN ASSIGN System.... 1 CHANNEL ASSIGNMENT DATA...
  • Page 160 Field Definitions System Use the UP/DOWN arrow keys to scroll through the available systems. Alternately the F3/F4 function keys can be used to navigate through the available systems. Status Use the UP/DOWN arrow keys to enable this frequency split. Three different frequency splits may be defined for each system.
  • Page 161: Control Channels

    Control Channels From the MAIN MENU, press F4 twice, F3 and then F6 twice to access this screen. DDCF MOTOROLA Radio Service Software Enter or Scroll to Select System. Model: ...SYSTEM:CHAN ASSIGN:CONTROL CHANNEL System.... 1 CONTROL CHANNELS ---------------- Number Frequency...
  • Page 162 Field Definitions System Use the UP/DOWN arrow keys or the F3/F4 keys to scroll through the available systems. Tx Frequency Enter the Control Channel Transmit frequency directly in MHz. Four Control Channel Frequencies are standard (eight if Wide Area AMSS is enabled and one for Local AMSS).
  • Page 163: Trunking System Options

    Trunking System From the MAIN MENU, press F4 twice, F3 and then F9 to access this screen. Options DDCI MOTOROLA Radio Service Software Enter or Scroll to Select System. Model: MO1UGN6PW6AN ..CHANGE/VIEW:TRUNKING:SYSTEM:OPTIONS System.... 1 TRUNKING SYSTEM OPTIONS ----------------------- Tx Power Select....High Phone DTMF Timing....1...
  • Page 164 MOTOROLA Radio Service Software Enter or Scroll to Select System. Model: M01RFL9PW4AN ..CHANGE/VIEW:TRUNKING:SYSTEM:OPTIONS System.... 1 TRUNKING SYSTEM OPTIONS ----------------------- Tx Power Select....High Phone DTMF Timing....1 Initial Delay (msec)..1000 Digit Duration (msec)..125 Inter Digit Delay (msec)..75 Hot DTMF Timing....1 Initial Delay (msec)..1000 Digit Duration (msec)..125...
  • Page 165 Note: Refer to the Radio Catalog Sheets for the maximum number of systems allowed for this model. Tx Power Select Use the UP/DOWN arrow keys to select either High or Low transmit power operation for the radio on this system. The transmit power may be reduced using this field.
  • Page 166 Phone DTMF Timing Use the UP/DOWN arrow keys to select the set of DTMF timing parameters for the current personality. Timing may be changed for Initial Delay, Digit Duration and Interdigit Delay. The radio contains a table with four sets of values of these parameters. The actual parameters are entered on the RADIO WIDE PHONE CONFIGURATION screen (F4/F3/ F4).
  • Page 167 will keep up with the location of the roaming subscriber units. The factory default is 5 seconds.
  • Page 168: Trunking One-Touch Button Options

    Trunking One-Touch From the MAIN MENU, press F4 twice, F3, F9 and then F5 to access this screen. Button Options DDCIE MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: ...TRUNKING:SYSTEM:OPTIONS:ONE TOUCH ONE TOUCH BUTTON OPTIONS ------------------------ Button 1 Feature..Disabled Index..1...
  • Page 169 Field Definitions Button (number) Use the UP/DOWN arrow keys to select the feature that corresponds to this one-touch button. One-touch buttons 1 through 4 may be programmed as Trunking buttons on either the control head or the handset buttons on the RADIO WIDE BUTTON CONFIGURATION screen (F4/F3/F3/F2).
  • Page 170: Trunking Status Alias

    Trunking Status From the MAIN MENU, press F4 twice, F3, F9 and then F6 to access this screen. Alias DDCIF MOTOROLA Radio Service Software Enter or Scroll to Select Value. Model: ...SYSTEM:OPTIONS:STATUS ALIAS TRUNKING STATUS ALIAS --------------------- Num Status Alias Number...
  • Page 171: Trunking Message Alias

    Trunking Message From the MAIN MENU, press F4 twice, F3, F9 and then F7 to access this screen. Alias DDCIG MOTOROLA Radio Service Software Enter or Scroll to Select Value. Model: ...SYSTEM:OPTIONS:MESSAGE ALIAS TRUNKING MESSAGE ALIAS ---------------------- Num Message Alias Number...
  • Page 172: Trunking Site Alias

    Trunking Site Alias From the MAIN MENU, press F4 twice, F3, F9 and then F8 to access this screen. DDCIH MOTOROLA Radio Service Software Enter or Scroll to Select Value. Model: ...SYSTEM:OPTIONS:SITE ALIAS TRUNKING SITE ALIAS ------------------- Site Alias Number...
  • Page 173: Trunking Personality

    Trunking From the MAIN MENU, press F4 three times to access this screen. Personality MOTOROLA Radio Service Software Enter or Scroll to Select Value. Model: M01UGN6PW6AN MAIN:CHANGE/VIEW:TRUNKING:PERS Personality..1 TRUNKING PERSONALITY -------------------- Protocol Type....II Private Call Type...PC II System/ID....1-0001 Operation....Resp Only Type......II/IIi...
  • Page 174 MOTOROLA Radio Service Software Enter or Scroll to Select Value. Model: M01RFL9PW5AN MAIN:CHANGE/VIEW:TRUNKING:PERS Personality..1 TRUNKING PERSONALITY -------------------- Protocol Type....II Private Call Type..Enhanced PC System/ID....1-0001 Operation....Resp Only Type......II/IIi Call Alert Operation..Unlimited Announcement Group...None Phone Interconnect..Unlimited Hot Keypad (DTMF)..Disabled Status....Disabled Individual ID....1-0001 Message....Disabled...
  • Page 175 Use the UP/DOWN arrows to select the Protocol Type. This refers to the type of Trunking system. The available options are: Type I The original MOTOROLA Trunked signalling protocol. Type II An enhanced version of the original protocol that provides additional fleet management flexibility for a given system via an expanded signalling format.
  • Page 176 Individual Size Code Prefix Fleet Subfleet 0 - 7 00 - 7F A - C 000 - 00F 0 - 7 00 - 0F A - G 000 - 03F 0 - 7 00 - 07 A - G 000 - 07F 0 - 7 00 - 00 A - O...
  • Page 177 Individual ID Contains the Individual ID number that uniquely identifies your radio on a particular system. Valid IDs range between 1 and FFFF. The decimal equivalent of the Individual ID is used for your radio’s Private Conversation Call ID (7 + ID#), interconnect land-to-portable unit calls (7 + ID #) and interconnect land-to-portable talkgroup calls (7 + ID #).
  • Page 178 Private Call Type Use the UP/DOWN arrow keys to select the desired Private Call type from among the following: PC I Limited to selected fleet and pool. (800 MHz, Type I personalities only). PC II Permits calls between fleets and sends an initiator ID so that the person receiving the call will know who sent it (800 MHz, Type I, II and IIi personalities).
  • Page 179 Phone Interconnect Use the UP/DOWN arrow keys to select the type of Phone Interconnect for this personality. This option allows the radio to initiate and receive land-to-portable telephone calls and specifies the type of Interconnect. The choices are: Answer Only Allows the radio to accept calls only.
  • Page 180 Call ID List This field will not be visible if the Operation field is set to Resp Only. Use the UP/DOWN arrow keys to select the Call List ID for the current personality. This is the number of the Call ID list that this personality will use for Private Call.
  • Page 181: Wac Amss Failsoft

    WAC AMSS Failsoft From the MAIN MENU, press F4 thrice and then F6 to access this screen. DDDF MOTOROLA Radio Service Software Enter or Scroll to Select Value. Model: ..CHANGE/VIEW:TRUNKING:PERS:WAC FLSFT Personality..1 WAC AMSS FAILSOFT ----------------- Number Status Frequency Number...
  • Page 182 Frequency Enter the WAC AMSS frequency for Failsoft operation directly in MHz. If the radio is set to Failsoft by Talkgroup, it will use these frequencies to transmit and receive on. Failsoft by Talkgroup is NOT compatible with WAC AMSS. Control Channel Enter the Control Channel frequency directly in MHz.
  • Page 183: Trunking Subfleets

    Trunking Subfleets From the MAIN MENU, press F4 thrice and then F7 to access this screen. DDDG MOTOROLA Radio Service Software Model: ...CHANGE/VIEW:TRUNKING:PERS:TLK GRP Personality..1 TRUNKING TALKGROUPS ------------------- # Tlk Grp Rx Freq Tx Freq Strapping - ------- ------- -------...
  • Page 184 Field Definitions Personality Displays the number of the current personality. Talkgroup/Subfleet This screen is used to enter subfleets that will use each personality. Once the talkgroups/subfleets are entered, they are assigned to a Zone/ System and a Channel/Subfleet selector position on the ZONE/ SUMMARY screen (F4/F8).
  • Page 185: Trunking Emergency Data Configuration

    Use the UP/DOWN arrow keys to select the Trunking Protocol Type for the current personality. Type I The original Motorola Trunked signalling protocol. Type II An enhanced version of the original Trunked Signalling protocol that provides additional fleet management flexibility for a given system via an expanded signalling format.
  • Page 186 Access Type This field will be visible only if the Protocol Type field is set to IIi. Use the UP/DOWN arrow keys to select the Trunking Access Type. This determines how the radio will access a Type II/IIi system. Select Tx Fast/Rx Fast for use with fast access systems and Tx Fast/ Rx Slow for slow access protocol emergency subfleets.
  • Page 187 If silent alarm is selected, there will be no display or audible indication when the alarm condition is entered. Nor will there be any indication of alarm acknowledgment. In addition, the radio will mute the receiver audio so that no radio traffic is heard. This feature is one of the necessary components for Hot Mic Emergency to function properly.
  • Page 188 style. This feature is one of the necessary components for Hot Mic Emergency to function properly. The default is Disabled.
  • Page 189 Emergency Hot Mic (not shown) This field will be visible only if all of the five conditions listed below are met. If this feature is enabled, Emergency Hot Mic operation (also known as Trunking Emergency with voice to follow) will be activated. When an Emergency Alarm is generated and emergency alarm acknowledge is received, the radio will automatically drop into emergency call mode and begin transmitting with the microphone muted for the time...
  • Page 190 Revert Fleet ID/Subfleet The Fleet ID is a three-digit hexadecimal number where the first digit is the Prefix and second two digits are the Fleet. For any size code, the subfleets for Fleetwide and Dynamic Regrouping are always available. Size Code Prefix Fleet Subfleet...
  • Page 191 Revert Talkgroup Use the UP/DOWN arrow keys to make your selection. This field (or Revert Subfleet) Strapping configures the transmit mode of Emergency Talkgroup or Emergency Subfleet. If set to Clear or SECURE, the Emergency Talkgroup or the Emergency Subfleet is forced to that particular transmit mode. When set to Select, the user is allowed to select the SECURE or Clear transmit modes using a radio button programmed to SECURE.
  • Page 192: Trunking Personality Options

    Trunking From the MAIN MENU, press F4 thrice and then F9 to access this screen. Personality Options DDDI MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: MAIN:CHANGE/VIEW:TRUNKING:PERS:OPT Personality..1 TRUNKING PERSONALITY OPTIONS ---------------------------- Conversation Type....Message Talk Permit Tone....Enabled VRM100......
  • Page 193 Field Definitions Personality Use the UP/DOWN arrow keys to scroll through the available personalities. Alternately the F3/F4 function keys can be used to navigate through the available personalities. Conversation Type Use the UP/DOWN arrow keys to select the Trunking Conversation type.
  • Page 194 When the System Wide Transmit field is set to Disabled, the user will not be allowed to enter 'SYS' (System Wide Talkgroup) into the talkgroup list of the corresponding personality. The System Wide Transmit field cannot be set to Disabled if there is a talkgroup entry which has 'SYS'.
  • Page 195: Smartzone Preferred Sites

    SmartZone From the MAIN MENU, press F4 thrice, F9 and then F6 to access this screen. Preferred Sites MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. DDDIF Model: ..TRUNKING:PERS:OPT:PREFERRED SITES SMART ZONE PREFERRED SITES -------------------------- Ignore Site Resource Preference..Disabled...
  • Page 196: Omnilink Preferred Sites

    OmniLink From the MAIN MENU, press F4 thrice, F9 and then F6 to access this screen. Preferred Sites DDDIF MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: ..TRUNKING:PERS:OPT:PREFERRED SITES OMNILINK PREFERRED SITES ------------------------ Ignore Site Resource Preference..Disabled...
  • Page 197 Site ID The value specifies the ID of the site which has preferred status. The ID may range from 1 to 64. The factory default is 1. Prefer Status Use the UP/DOWN arrow keys to make your selection. This field controls the preferred site status for the site.
  • Page 198: Vrm100 Trunk Options

    VRM100 Trunk From the MAIN MENU, press F4 thrice, F9 and then F7 to access this screen. Options DDDIG MOTOROLA Radio Service Software Model: ...TRUNKING:PERS:OPT:VRM100 Personality..1 VRM100 TRUNK OPTIONS -------------------- VRM100 Pager ID....00001 VRM100 Talk Group....001 HELP EXIT VRM100 Trunking Options for Type II (800 MHz)
  • Page 199 Field Definitions VRM100 Pager ID This field will be visible only if VRM100 operation has been enabled for the radio. (Refer to dependencies detailed in the screen description above.) Enter the Trunking Pager ID. This value represents the Trunking Pager ID of the radio unit which serves as VRM100 master pager unit in the VRM100 network.
  • Page 200 The Fleet ID is a three-digit hexadecimal number where the first digit is the prefix and the second two digits are the Fleet. For any size code, the subfleets for Fleetwide and Dynamic Regrouping are always available. Note: The size code and Fleet ID chosen must match the programming of the Central Controller.
  • Page 201: Vrm500 Trunk Options

    VRM500 Trunk From the MAIN MENU, press F4 thrice, F9 and then F7 to access this screen. Options DDDIG MOTOROLA Radio Service Software Model: ...TRUNKING:PERS:OPT:VRM500 Personality..1 VRM500 TRUNK OPTIONS -------------------- VRM500 Pager Individual ID..1 VRM500 Deaffiliation..Disabled HELP EXIT This screen will vary depending on whether you have enabled VRM100 or VRM500 operation for the radio and the model of the current radio codeplug.
  • Page 202 Notes...
  • Page 203: Trunking Call List Table

    Trunking Call List From the MAIN MENU, press F4 twice and then F5 to access this screen. Table MOTOROLA Radio Service Software Enter or Scroll to Select List. Model: MAIN:CHANGE/VIEW:TRUNKING:CALL LIST Call List..1 CALL LIST TABLE --------------- # Call ID...
  • Page 204: Conventional Menu

    Conventional Menu From the MAIN MENU, press F4 and then F6 to access this screen. MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:CHANGE/VIEW:CONV CONVENTIONAL MENU ----------------- F1 - HELP F2 - Conventional Radio Wide Configuration F3 - Conventional Personalities, Options...
  • Page 205: Conventional Radio Wide Options

    Conventional Radio From the MAIN MENU, press F4, F6 and then F2 to access this screen. Wide Options MOTOROLA Radio Service Software Enter or Scroll to Select Value. Model: MAIN:CHANGE/VIEW:CONV:WIDE OPTIONS CONVENTIONAL RADIO WIDE OPTIONS ------------------------------- Smart PTT Retry Timer (ms)..275 Smart PTT Quick Key Timer (ms)..500...
  • Page 206 Hub Defeats PL This feature is only applicable to portable radios when a Vehicular Adapter is used. Use the UP/DOWN arrow keys to enable/disable the Hang-Up Box (HUB) Defeats PL feature. When Hub Defeats PL is enabled, PL/ DPL will be disabled when the microphone is removed from the hang- up box.
  • Page 207: Mpl List Configuration

    MPL List From the MAIN MENU, press F4, F6, F2, and then F2 to access this screen. Configuration DFBB MOTOROLA Radio Service Software Enter or Scroll to Select List. Model: MAIN:CHANGE/VIEW:CONV:WIDE OPTIONS:MPL MPL LIST CONFIGURATION ---------------------- MPL Number..1 MPL Name....MPL 1...
  • Page 208 PL Code Refer to the Conventional Personality Screen’s Field Definitions. DPL Code Refer to the Conventional Personality Screen’s Field Definitions. DPL Invert Refer to the Conventional Personality Screen’s Field Definitions.
  • Page 209: Conventional Personality

    Conventional From the MAIN MENU, press F4, F6 and then F3 to access this screen. Personality MOTOROLA Radio Service Software Enter or Scroll to Select System. Model: MAIN:CHANGE/VIEW:CONV:PERS Personality..1 CONVENTIONAL PERSONALITY ------------------------ Receive Only....Disabled Signalling....MDC Direct / Talkaround..Enabled MDC System #....1 Time Out Timer..3-...
  • Page 210 Personality Use the UP/DOWN arrow keys to select the desired Conventional Personality. You may also enter the number directly. Note: Refer to the Motorola Radio Catalog Sheets for the maximum number of personalities allowed for this model. Receive Only Use the UP/DOWN arrow keys to enable/disable Receive-only operation on this personality.
  • Page 211 The default is None. Signalling Use the UP/DOWN arrow keys to enable MDC or other signalling types provided for this personality. MDC is a MOTOROLA proprietary, 1200-baud digital signalling protocol used for unit identification, selective signalling and emergency features. GE STAR...
  • Page 212 Enter the Receive, Transmit or Direct (Talkaround) frequency directly in MHz. Alternatively, the UP/DOWN arrow keys may be used to scroll through the valid channels. Blank receive frequency fields are not allowed. Note: Refer to the MOTOROLA Catalog Sheets/Price Pages for valid receive frequencies for this model.
  • Page 213 The code can also be selected by pressing the first letter and then scrolling to select the correct code. Press F1 HELP while in this field to view a list of standard frequencies and their respective codes. Standard Private-Line Frequencies/Motorola codes are: Freq Code...
  • Page 214 DPL Code Enter the DPL (Digital Private-Line) code directly (023 for instance). Leading zeros are required. Alternatively, the UP/DOWN arrow keys may be used to scroll through the standard codes. Press F1 HELP while in this field to view a list of standard frequencies and their respective codes.
  • Page 215: Secure Options

    SECURE Options From the MAIN MENU, press F4, F6, F3 and then F6 to access this screen. DFCF MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: MAIN:CHANGE/VIEW:CONV:PERS:SECURE Personality..1 CONVENTIONAL SECURE PERSONALITY ------------------------------- Secure/Clear Strapping....Secure XL Transmit......Enabled Scan Holdoff Strapping....Both...
  • Page 216 XL Transmit Use the UP/DOWN arrow keys to enable XL transmit mode for this personality. This field configures the transmit mode of the XL chip. When set to Enabled, XL encrypted data will be transmitted in SECURE transmit mode. When set to Disabled, Non-XL (Cipher Feedback) encrypted data will be transmitted in SECURE transmit mode.
  • Page 217 remain muted when dekeying following a secure transmission. In radio systems having a large amount of data throughput delay, the tail end of the user's transmitted message could be heard following dekey if this field is not set correctly to account for systems delays. The factory default is 0 ms.
  • Page 218: Personality Mdc Options

    Use the UP/DOWN arrow keys to select the desired Conventional personality. The number may also be entered directly or selected using the function keys. Note: Refer to the Motorola Radio Catalog Sheets for the maximum number of personalities allowed for this model. Call Alert Decode Use the UP/DOWN arrow keys to enable/disable Call Alert Decode.
  • Page 219 Call Alert Encode Use the UP/DOWN arrow keys to enable/disable Call Alert Encode. If this feature is enabled, the user will be able to send pages to other radios. Note: If this feature is enabled and the user must be able to select target radio(s) ID(s) via the Call list, data must be programmed into the appropriate Call List Table.
  • Page 220 MDC Unlimited Calling This field will be visible only if the Selective Call Encode field is set to Enabled. Use the UP/DOWN arrow keys to enable/disable Unlimited Calling. If this option is enabled, the user will be able to directly enter from the keypad IDs of radios he or she wants to call.
  • Page 221: Conventional Personality Phone Options

    Use the UP/DOWN arrow keys to select the desired Conventional Personality. The number may also be entered directly. Note: Refer to the Motorola Radio Catalog Sheets for the maximum number of personalities allowed for this model. Auto Access Code Select Use the UP/DOWN arrow keys to select an Auto Access Code for this personality.
  • Page 222 DTMF Access Timing Table Use the UP/DOWN arrow keys to select the set of DTMF timing parameters for this personality. Timing can be changed for Initial Delay, Digit Duration and Integer Delay. The radio contains a table with four sets of values for each of these parameters. The actual parameters are entered on the RADIO WIDE PHONE CONFIGURATION screen (F4/F3/F4).
  • Page 223: More Conventional Personality Options

    Personality Use the UP/DOWN arrow keys to select the desired Conventional Personality. The number may also be entered directly. Note: Refer to the Motorola Radio Catalog Sheets for the maximum number of personalities allowed for this model. Smart PTT Use the UP/DOWN arrow keys to enable/disable the Smart PTT function.
  • Page 224 prevents users from listening in on (or transmitting over) conversations that they are not part of. The Monitor button is Disabled when this feature is active. The default is Disabled. Quick Key Override This field will be visible only when the Smart PTT field is set to a value other than Disabled.
  • Page 225 muted. By muting before the carrier drops, the noise burst (squelch tail) on the receiving end is substantially reduced. The default is Enabled. Squelch (Fine Tune) Use the UP/DOWN arrow keys to adjust the Squelch Fine Tuning. This value is combined with the master squelch setting to determine the overall squelch for this personality.
  • Page 226 Tx Deviation Use the UP/DOWN arrow keys to select the Transmitter Deviation for this personality. This is the maximum amount that modulation can cause the carrier to deviate from its unmodulated frequency. The choices are: 2.5 kHz VHF, UHF, and 800 MHz Band Analog (12.5 kHz Channel Spacing) 4.0 kHz 821 MHz Band (20 kHz Channel Spacing)
  • Page 227: Conventional Personality Rac Options

    Conventional From the MAIN MENU, press F4, F6, F3, F9 and then F7 to access this screen. Personality RAC Options MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. DFCIG Model: ...CHANGE/VIEW:CONV:PERS:OPTIONS:RAC Personality..1 CONV PERS RAC OPTIONS --------------------- Repeater Access......Enabled Tone Signalling System....1...
  • Page 228 Use the UP/DOWN arrow keys, enter the system number directly, or use the F3/F4 function keys to select the desired Conventional Personality. Note: Refer to the Motorola Radio Catalog Sheets for the maximum number of personalities allowed for this model. Repeater Access This option enables Repeater Access on this personality.
  • Page 229 RAB 2 Code Type This field will be visible only if the Repeater Access field is set to Enabled and the Access Type field is set to Manual. Use the UP/DOWN arrow keys to select the type of Repeater Access Button operation. Depending on your radio capabilities, choices will be Single Tone, DTMF, MDC or None.
  • Page 230: Mdc Configuration Menu

    MDC Configuration From the MAIN MENU, press F4, F6, and then F4 to access this screen. Menu MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:CHANGE/VIEW:CONV:MDC MDC CONFIGURATION MENU ---------------------- F1 - HELP F2 - F3 - MDC Systems...
  • Page 231: Mdc Systems

    MDC Systems From the MAIN MENU, press F4, F6, F4 and then F3 to access this screen. DFDC MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: MAIN:CHANGE/VIEW:CONV:MDC:SYSTEMS MDC System..1 MDC SYSTEMS ----------- Primary ID....0001 Emergency....Enabled Secondary ID.....00000000 Emergency Type..Alarm and Call...
  • Page 232 Field Definitions MDC System Use the UP/DOWN arrow keys to change the MDC system or directly enter the system number. Primary ID Enter the four-digit hexadecimal for primary unit ID or use the UP/ DOWN arrow keys to select a primary identification code from 1 to DEEE.
  • Page 233 Trailing PTT-ID Use the UP/DOWN arrow keys to enable/disable the MDC unit identification data packet transmission at the end of each transmission (EOT). If the trailing PTT-ID feature is enabled and the microphone PTT is released, the radio will automatically send the radio’s unit identification code to the dispatcher.The PTT-ID Sidetone will NOT sound for trailing PTT-IDs.
  • Page 234 Emergency Use the UP/DOWN arrow keys to enable/disable this feature. The default is Disabled. Emergency Type This field will be visible only if the Emergency field is set to Enabled. The following choices are available: Alarm Only An emergency message is repeatedly sent to the base station until it is cancelled in one of the following ways: All the allowed retries (both polite and impolite) have been sent;...
  • Page 235: More Emergency Options

    More Emergency From the MAIN MENU, press F4, F6, F4, F3 and then F7 to access this screen. Options DFDCG MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: ...CONV:MDC:SYSTEMS:MORE EMER OPT MDC System..1 MORE EMERGENCY OPTIONS ---------------------- MDC Hot Mic Emergency....Enabled...
  • Page 236: Mdc System Options

    MDC System From the MAIN MENU, press F4, F6, F4, F3 and then F9 to access this screen. Options DFDCI MOTOROLA Radio Service Software Enter or Scroll to Select Value. Model: ...CONV:MDC:SYSTEMS:OPTIONS MDC System..1 MDC SYSTEM OPTIONS ------------------ Emergency System Pretime (ms)...500 Polite Retries....5...
  • Page 237 Inter-Packet Time (ms) Use the UP/DOWN arrow keys to choose a value or enter the desired value directly. The inter-sequence pre-time is the period of time between consecutive MDC messages. Valid entries are in the range 0 (zero) to 6350 ms in 50-ms increments. Note: Due to the rounding that occurs when preamble during pre-time is enabled, the value shown may change by 50 ms when a codeplug is read from a radio or file.
  • Page 238 Auto Reset Time (sec) Use the UP/DOWN arrow keys to choose a value or enter the desired value directly. This is the time duration for which the radio will remain in Carrier Squelch mode after it has received a Select Call directed to it.
  • Page 239 Global Tx Multiplier Use the UP/DOWN arrow keys to enable/disable this feature. Enabling this feature causes the default Tx Multiplier field value to double. This effectively doubles how long the transmitter will key after the radio exhausts all retries without receiving an Ack during Emergency Call. If this feature is disabled, no doubling of the Tx Multiplier field value will occur.
  • Page 240: Mdc System Remote Options

    MDC System From the MAIN MENU, press F4, F6, F4, F3, F9 and then F9 to access this screen. Remote Options DFDCI MOTOROLA Radio Service Software Enter or Scroll to Select System. Model: ...MDC:SYSTEMS:OPTIONS:REM OPTIONS MDC System..1 MDC SYSTEM REMOTE OPTIONS ------------------------- Remote Mon/Radio Trace..Enabled...
  • Page 241 Tx Base Time (sec) Use the UP/DOWN arrow keys to select the desired MDC Tx Base Time. The value may also be entered directly. The MDC Tx Base Time is a value used to calculate the period that a radio will key-up after receiving an MDC Remote Monitor/Radio Trace command.
  • Page 242: Mdc Call List Table

    MDC Call List Table From the MAIN MENU, press F4, F6, and then F7 to access this screen. DFDD MOTOROLA Radio Service Software Enter or Scroll to Select Value. Model: ...CHANGE/VIEW:CONV:MDC:MDC CALL LIST CALL LIST TABLE --------------- # Call ID...
  • Page 243 Field Definitions Call ID Enter the four-digit (hexadecimal) MDC CALL ID comprised of hexadecimal digits “A” through “F” for this member of the call list. The Call ID is used to target a radio when an individual or group call has to be sent to that radio or set of radios.
  • Page 244: Mdc Repeater Id

    MDC Repeater ID From the MAIN MENU, press F4, F6, F4 and then F5 to access this screen. DFDE MOTOROLA Radio Service Software Enter ID (Only 0-9 Digits Allowed). Model: MAIN:CHANGE/VIEW:CONV:MDC:RPTR ID MDC REPEATER ID --------------- Repeater ID Repeater -----------...
  • Page 245: Auxiliary Menu

    Auxiliary Menu From the MAIN MENU, press F4, F6, and then F7 to access this screen. MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:CHANGE/VIEW:CONV:AUX AUXILARY SYSTEMS MENU --------------------- F1 - HELP F2 - Singletone Systems F3 - Singletone List...
  • Page 246: Single Tone Systems

    Single Tone Systems From the MAIN MENU, press F4, F6, F7 and then F2 to access this screen. DFGB MOTOROLA Radio Service Software Enter or Scroll to Select System. Model: ...CONV:AUX:SINGLETONE SYSTEM System.... 1 SINGLETONE SYSTEM ----------------- Tone Pretime (ms)......250 Tone Duration (ms).......500...
  • Page 247 Tone Duration (ms) Use the UP/DOWN arrow keys to select or directly enter the desired value. Upon expiration of the Single Tone Pretime period, the Single Tone will be encoded onto the carrier for the duration of the value specified in this field. The valid range of values is 25 to 6375 ms in 25- ms increments.
  • Page 248: Single Tone List

    Single Tone List From the MAIN MENU, press F4, F6, F7 and then F3 to access this screen. DFGC MOTOROLA Radio Service Software Enter or Scroll to Select Frequency. Model: ...CONV:AUX:SINGLETONE LIST SINGLETONE LIST --------------- Tone (Hz) Tone (Hz) --------- --------- 300.0...
  • Page 249: Quik-Call Ii System

    Use the UP/DOWN arrow keys to scroll through the available selections. This field dictates the System Signalling Type to be used. It affects the values in the Code (A, B, C, D) fields. Available choices are: Motorola, GE, Plectron, and Federal. The default is Motorola.
  • Page 250 Signalling Muting Type Use the UP/DOWN arrow keys to scroll through the available selections. This field dictates the Signalling Muting Type to be used during Quik-Call II operations: Both Signalling Unmuting (Quik-Call) and Radio Unmuting must be satisfied for the radio to unmute. Either Signalling Unmuting (Quik-Call) or Radio Unmuting must be satisfied for the radio to unmute.
  • Page 251 Decoder Option Use the UP/DOWN arrow keys to scroll through the available selections. This field controls the number of decoders (1 or 2) and the decode sequences to be used on this Quik-Call II system. The available selections are: (1) A-B (1) A-B, (2) A-C (1) A-B, (2) C-B (1) A-B, (2) B...
  • Page 252: Quik-Call Ii System Options

    Quik-Call II System From the MAIN MENU, press F4, F6, F7, F4 and then F9 to access this screen. Options DFGDI MOTOROLA Radio Service Software Enter or Scroll to Select System. Model: ...AUX:QUIK-CALL II SYSTEM:OPTIONS System.....1 QUIK-CALL II SYSTEM OPTIONS --------------------------- Inter-Tone Duration (sec)....2.0...
  • Page 253 Detections Required Use the UP/DOWN arrow keys to scroll through the available choices or directly enter the desired value. This field dictates the number of valid tone detections (per observation window) required within the last 8 observation windows to qualify a Quik-Call II tone detection. Valid values are integers ranging from 1 to 7.
  • Page 254: Ge Star System

    GE STAR System From the MAIN MENU, press F4, F6, F7 and then F5 to access this screen. DFGE MOTOROLA Radio Service Software Use UP/DOWN Arrows to Select Choice. Model: ..CHANGE/VIEW:CONV:AUX:GE STAR SYSTEM System.....1 GE STAR SYSTEM -------------- Addressing Mode..Extended Emergency Alarm..
  • Page 255 Radio ID Use the UP/DOWN arrow keys to scroll or directly enter the Radio ID. This field specifies the ID of the radio in decimals. For normal addressing mode, valid radio IDs range from 0 (zero) to 2047. For the extended addressing mode, valid radio IDs range from 0 (zero) to 9999.
  • Page 256 Coast Time (ms) This field will be visible only if the DOS field is set to Enabled. Use the UP/ DOWN arrow keys to scroll through the available choices or directly enter the desired time. This field specifies the duration that the radio waits with speaker muted after DOS detect has been lost but prior to unmuting.
  • Page 257: Conventional Message Alias List

    Conventional From the MAIN MENU, press F4, F6, and then F8 to access this screen. Message Alias List MOTOROLA Radio Service Software Enter or Scroll to Select Value. Model: ..CHANGE/VIEW:CONV:MESSAGE ALIAS LIST CONV MESSAGE ALIAS LIST ----------------------- Entry Message Alias Number...
  • Page 258: Conventional Status Alias List

    Conventional From the MAIN MENU, press F4, F6, and then F9 to access this screen. Status Alias List MOTOROLA Radio Service Software Enter or Scroll to Select Value. Model: ...CHANGE/VIEW:CONV:STATUS ALIAS LIST CONV STATUS ALIAS LIST ---------------------- Entry Status Alias Number...
  • Page 259: Zone/Talkgroup Assignment

    Zone/Talkgroup At the MAIN MENU, press F4 and then F8 to access this screen. Assignment MOTOROLA Radio Service Software Enter or Scroll to Select Value. Model: MAIN:CHANGE/VIEW:ZONE/CHAN Zone Number... 1 ZONE/TALKGROUP (CHANNEL) ASSIGNMENT ----------------------------------- Zone Name.Z1 Personality Talkgroup Channel Number...
  • Page 260 Field Definitions Zone Number Use the UP/DOWN arrow keys to select the desired zone. The number may also be entered directly. Zone Name Each zone may be assigned an alphanumeric name. The number of characters allotted for the zone name versus the channel name is defined on the RADIO WIDE DISPLAY OPTIONS screen (F4/F3/F6).
  • Page 261: Print Menu Functions

    Print Menu Functions The print function is used to produce permanent records of codeplug configurations. A printer is required and should be connected to your computer according to instructions in the user’s manual that came with your computer. Graphics capability is NOT required. In order to print radio configuration data, you must first read or retrieve a codeplug file using the GET/SAVE MENU and related screens.
  • Page 262: Print Menu

    Print Menu At the MAIN MENU, press F5 to access the PRINT MENU. MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:PRINT PRINT MENU ---------- - HELP - Radio Wide Buttons, Switches, Display, Scan, Phone - Trunking Systems, Personalities, Call Lists, Options...
  • Page 263: Print

    Print From the MAIN MENU, press F5 and then F3 to access the RADIO WIDE CONFIGURATION PRINT MENU. Radio Wide Features Configuration Menu MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:PRINT:CONFIG RADIO WIDE CONFIGURATION MENU ----------------------------- - HELP...
  • Page 264: Trunking Print Menu

    Trunking Print Menu At the MAIN MENU, press F5 and then F4 to bring up the TRUNKING PRINT MENU. MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:PRINT:TRUNKING TRUNKING MENU ------------- - HELP - Trunking Radio Wide Options - Trunking Systems: System ID, Control Channels, etc.
  • Page 265: Conventional Print Menu

    Conventional Print At the MAIN MENU, press F5 and then F6 to access the CONVENTIONAL PRINT MENU. Menu MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:PRINT:CONV CONVENTIONAL MENU ----------------- - HELP - Conventional Radio Wide Configuration - Conventional Personalities, Options...
  • Page 266 Notes...
  • Page 267: File Maintenance Menu Functions

    File Maintenance Menu Functions This section describes all the functions available from the FILE MAINTENANCE MENU. To guide you through these functions, related menus and screens are shown with their paths from the MAIN MENU, function key descriptions and field definitions. Menu Map FILE MAINTENANCE...
  • Page 268: File Maintenance Menu

    File Maintenance At the MAIN MENU, press F6 to access the FILE MAINTENANCE MENU. Menu MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:FILE MAINT FILE MAINTENANCE MENU --------------------- - HELP - Create Directory Path - Delete Archive File...
  • Page 269: Create Directory Path

    Create Directory From the MAIN MENU, press F6 and then F2 to bring up this screen. Path MOTOROLA Radio Service Software Enter Path. Model: MAIN:FILE MAINT:CREATE CREATE DIRECTORY PATH --------------------- New Path Name : HELP DEFINE EXIT PATH This screen allows you to create a new directory on your computer disk drive.
  • Page 270: Delete Archive File

    Delete Archive File From the MAIN MENU, press F6 and then F5 to bring up this screen. MOTOROLA Radio Service Software Enter Path. Model: MAIN:FILE MAINT:DELETE ARCHIVE Current Archive DELETE ARCHIVE FILE ------------------- FileName FileName FileName FileName -------------- -------------- -------------- -------------- khh_h38.exe...
  • Page 271: Flashport Upgrade

    FLASHport Upgrade FLASHport is a revolutionary new method of upgrading the software in a subscriber radio. It involves enabling downloading new features to the radio or FLASHing new software into the radio. This section is a brief preview of FLASHport capabilities. Detailed procedures can be found in the FLASHport User’s Manual that accompanies the FLASHport software upgrade kit.
  • Page 272: Flashport Upgrade

    FLASHport Upgrade At the MAIN MENU, press F8 to access the FLASHport UPGRADE MENU. MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:FLASHport UPGRADE FLASHPORT UPGRADE MENU ---------------------- - HELP - View Radio Configuration - View FLASHkey Configuration...
  • Page 273: View Radio Configuration

    View Radio At the MAIN MENU, press F8 and then F2 to access this screen. Configuration MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:FLASHport:RADIO CONFIG RADIO CONFIGURATION ------------------- FLASHcode.......000004-000000-6 Memory........1Meg System Package......H37 System Version......1.0 HELP ENHANCEMENT EXIT...
  • Page 274: Enhancement Options

    Enhancement At the MAIN MENU, press F8, F2 and then F7 to access this screen. Options MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:FLASHport:RADIO CONFIG:OPTIONS ENHANCEMENT OPTIONS ------------------- SmartZone Operation..Disabled Stat Alert Decode Feat..Disabled SMARTNET Operation..Disabled Stat Alert Encode Feat..Disabled Startsite Operation..Disabled...
  • Page 275: View Flashkey Configuration

    View FLASHkey At the MAIN MENU, press F8 and then F3 to access this screen. Configuration MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:FLASHport:FLASHkey FLASHKEY CONFIGURATION ---------------------- Model Number.......M01KHH9PW5AN Current FLASHcode....00001-000000-9 New FLASHcode....00001-000000-9 Required FLASH Software....TVN6369A Upgrades Purchased......1 Upgrades Remaining......1...
  • Page 276: View Features

    View Features At the MAIN MENU, press F8, F3 and then F5 to access this screen. MOTOROLA Radio Service Software Select Function F1 - F10. Model: MAIN:FLASHport:FLASHkey:FEATURES Current FLASHcode New FLASHcode ----------------- ------------- FLASHcode...000001-000000-9 FLASHcode...000001-000000-9 System Package....H35 System Package....H35 System Version....0 System Version....0...
  • Page 277: More Features

    More Features At the MAIN MENU, press F8, F3, F5 and then F9 to access this screen. HCEI MOTOROLA Radio Service Software Select Function F1 - F10. Model: ...FLASHkey:MORE FEATURES Current FLASHcode New FLASHcode ----------------- ------------- Trk One Touch Button..Disabled Trk One Touch Button..Disabled...
  • Page 278: Upgrade Radio

    Upgrade Radio At the MAIN MENU, press F8 twice to access this screen. MOTOROLA Radio Service Software Press Enter to Select Upgrade File. Model: Press F8 to Upgrade the Radio. MAIN:FLASHport:UPGRADE RADIO Software Path: C:\MRSS\MCS\UPGRADE DIRECTORY CONTENTS ------------------ mcsboot.enc HELP...
  • Page 279: Appendix A - Computer-To-Radio Communication Error Codes

    Computer-to-Radio Communication Error Codes Error Description Recommended Corrective Action Code No response from the Check programming cable connections. radio Eliminate background routines on the PC. Check power to the RIB. Transmit register time-out Check serial port. Busy low time-out. Busy low time-out Check to make sure that the radio is turned on.
  • Page 280 Notes...
  • Page 281: Appendix B - Tpl Frequencies And Codes

    TPL Frequencies and Codes Frequency (Hz) Code Frequency (Hz) Code 067.0 136.5 069.3 141.3 071.9 146.2 074.4 151.4 077.0 156.7 079.7 162.2 082.5 167.9 085.4 173.8 088.5 179.9 091.5 186.2 094.8 192.8 097.4 203.5 100.0 206.5 103.5 210.7 107.2 218.1 110.9 225.7 114.8...
  • Page 282 Notes...
  • Page 283: Appendix C - Dpl Codes

    DPL Codes Code Code Code Code...
  • Page 284 Notes...
  • Page 285: Appendix D - Mcs 2000 Features

    MCS 2000 Features Conventional Signalling System Features DTMF/ Features MDC-1200 DTMF Phone Data-Operated Squelch Radio Check PTT-ID Encode Emergency Alarm Encode Voice Selective Call Encode/ Decode Emergency Revert Memory Dial (19 Numbers) Last Number Dial 19 Access/De-Access Codes Call Alert...
  • Page 286 Trunking Signalling System Features Features Type I Type II Universal ID Failsoft PTT-ID Emergency Alarm Call Private Call Encode/Decode Encode/Decode Call Alert Encode/Decode Encode/Decode Phone Interconnect Encode/Decode Encode/Decode Hot Keypad Status/Message Encode Talkgroup Scan Priority Monitor Subfleet Scan Mandown Affiliation Dynamic Regrouping Radio Inhibit AMSS...
  • Page 287 Radio Wide Features Features Type I Type II Selectable Keypad Mute Alert Tones Block Pending CA/PC Codeplug Self Test Rotary Switch Function in Scan Programming Short/Long Keypress Duration Radio-to-Radio Cloning Time-Out Timer Values Emergency Silent Alarm Emergency Channel Delay Mandown Pre/Post Alert Button Functions Switch Functions Menu Item List Functions...
  • Page 288 Trunking Wide Features Features Conventional Trunking Telephone Interconnect Half/Full Duplex Call Alert/PC Response ISW Window Adjust Auto Dial Holdoff RF Modem Voice On Control Conventional Wide Features Features Conventional Trunking Smart PTT Parameters Hub Defects PL Direct Frequency Enabled...
  • Page 289 By-Personality Features Features Conventional Trunking Mode Name (Assigned on Zone/ Channel screen) Rx Frequency Tx Frequency Rx Squelch Type Rx Squelch Code Tx Squelch Type Tx Squelch Code Talkaround/Direct Smart PTT Choose Scan List Hot Keypad Tx Power Level (For Applicable Bands) MDC Signaling System GE STAR Signaling System...
  • Page 290 By-Personality Features Features Conventional Trunking Quik-Call II Signalling System Status Message Access Type (Fast/Slow) 20-Channel Synthesized Emergency Parameters...
  • Page 291 By-Personality Features Conventional Type I Type II Features Trunking Trunking System ID System Type (I, II, IIi) System ID Aliasing Individual ID Universal ID Connect Tone Coverage Type Affiliation Type Tx Power Repeater Offset Channel Assignment Type (International / Domestic) Splinter Channel Phone DTMF Timing Hot Keypad DTMF Timing...
  • Page 292 Notes...
  • Page 293: Appendix E - Field/Menu Navigation Key Sequences

    Field/Menu Navigation Key Sequences Below is an alphabetized list of all fields and menus available in the RSS. The list can be reached on-line in the RSS from any Help screen by pressing F6 (A to P) or F7 (Q to Z). Note: The availability of individual fields cataloged in the list depends on the features ordered with the radio and, in some cases, on specific settings of other fields in the RSS.
  • Page 294 CONV PERS RAC Conversation Type ...... F4 F4 F4 F9 OPTIONS ......F4 F6 F3 F9 F7 Coverage Type ........F4 F4 F3 CONV STATUS ALIAS LIST....F4 F6 F9 Current Archive......... F6 F5 CONVENTIONAL......F4 F3 F5 F8 Current FLASHcode........F8 F3 CONVENTIONAL MENU ......
  • Page 295 Emergency Call ......F4 F4 F4 F8 HiLo Airhorn Tones .....F4 F3 F9 F2 Emergency Hot Mic .....F4 F4 F4 F8 High Pwr ..........F2 F2 F3 Emergency Power Up....F4 F3 F2 F7 Home Mode Selection......F4 F3 F2 Emergency Receive ......F4 F3 F6 Horn &...
  • Page 296 MDC Unlimited Calling....F4 F6 F3 F7 Out Of Range........F4 F3 F2 MERGE FORM ........... F3 F4 Override Timer (ms) ....F4 F6 F3 F9 MESSAGE TEXT......... F9 F7 MONITOR TYPE ........F9 F7 MORE EMERGENCY OPTIONSF4 F6 F4 F3 F7 PA Ignition Sense......
  • Page 297 Priority 1 Member......F4 F3 F5 RECEIVER ALIGNMENT MENU....F2 F3 Priority 1 Type ........F4 F3 F5 REFERENCE OSCILLATOR ....F2 F2 F2 Priority 2 Member......F4 F3 F5 RF Modem .......... F4 F4 F2 Priority 2 Type ........F4 F3 F5 RIB .............
  • Page 298 SAVE CODEPLUG DATA TO Signalling Muting Type ....F4 F6 F7 F4 ARCHIVE ..........F3 F7 Silent Alarm......... F4 F3 F2 F7 SCAN LIST .......... F4 F3 F5 Silent Mode Change......F4 F3 F2 SCAN OPTIONS......F4 F3 F5 F8 Siren Ignition Sense.....
  • Page 299 System ........F4 F4 F3 F6 F6 Tlk Grp .........F4 F4 F4 F7 System ..........F4 F4 F3 F9 Tone (Hz)........F4 F6 F7 F3 System ..........F4 F6 F7 F2 Tone Signalling System ..F4 F6 F3 F9 F7 System ..........F4 F6 F7 F4 Trailing PTT-ID ......F4 F6 F4 F3 System ........
  • Page 300 VRM500........F8 F3 F5 F9 VRM500 Capable........ F4 F3 F2 VRM500 Deaffiliation ...F4 F4 F4 F9 F7 VRM500 Pager Individual ID ......F4 F4 F4 F9 F7 VRM500 Rx DISCRIMINATOR LEVEL ..........F2 F3 F9 VRM500 TRUNK OPTIONS ......F4 F4 F4 F9 F7 VSP ..........
  • Page 302 Notes...
  • Page 304 Notes...
  • Page 305: Glossary

    Glossary Active Channel A channel in which the radio is receiving or transmitting a signal. Adjustment A means of tuning a radio parameter to a specified value. Alignment A means of adjusting any parameter that can be tuned to obtain optimum product performance.
  • Page 306 Base Station Identifier (BSI) An identifier which is programmed into the Central Controller and sent out in Morse code ID on the lowest frequency Trunked repeater. Blank Frequency A channel that is not assigned a transmit frequency. Blank PL Code A channel that is not assigned a receive or transmit PL code.
  • Page 307 Continuous Assignment The ability of the Motorola Trunked system to ensure that a radio just coming into service will be sent to the appropriate voice channel to join the rest of the Fleet, Subfleet or Talkgroup. Once a group has been...
  • Page 308 The circuit board within the radio that contains the embedded microprocessor and other logic-related components. MDC-1200 A Motorola-proprietary signalling format. It is a binary format using 1200-baud minimum shift keying modulation. Menu Contains a list of functions that can be selected and performed by pressing a function key.
  • Page 309 Megahertz, million of cycles per second. Mode A mode is a collection of personality values, such as frequency, PL codes and scan lists, and is assigned a number in the Name field. Mode Number The number assigned to a particular mode. MS-DOS Microsoft Disk Operating System.
  • Page 310 Radio Service Software Software purchased by Motorola product resellers through a license agreement that is delivered on a 3-1/2” diskette(s) and used to program two-way radios with a unique set of features called personalities.
  • Page 311 Synthesizer The frequency generating unit of a radio. System Central Referred to as Central Controller, this is the heart of Motorola's Trunking system. The Central Controller is a software controlled, computer-driven device that receives and generates data for the Trunked radios assigned to it. The Central Controller is responsible for monitoring and directing the operations of the Trunked repeaters.
  • Page 312 Talkgroup A group of users in a Type II or Type IIi system. Talk Permit Tone A brief series of beeps that provides radio operators with an indication that a voice channel is available for use and is assigned to them. Talk Prohibit Tone An audible tone (honk) heard from the radio's speaker when PTT is pressed.
  • Page 313: Index

    Index Block Pending CA/PC ..........93 Bootstrap Code Path & File Name ......24 A/G Failsoft ..............171 Busy LED ..............218 A/G Failsoft Frequency ...........171 Busy Override Chirp Ack ........141 Acceptable Threshold ..........142 Busy Override Delay ..........140 Access Codes ............. 120–121 Button .................163 Access Type ..........
  • Page 314 Computer Defaults, how to specify .......17 DPL Invert ............202, 208 Computer-to-Radio Communication DTMF Access Codes ..........118 Error Codes ............273 DTMF Access Timing Table ........216 Configuring Paths and Port ........23 DTMF Access/Deaccess Codes .......120 Connect Tone ............149 DTMF Deaccess Codes ..........118 Console Acknowledgement Required ....181 DTMF Digit Hangtime ..........122 Control Channel ......148, 153, 155, 176...
  • Page 315 Print Scan Options ..........257 GE STAR System # ............206 Print Trunking Data .........256 Get Codeplug Data From Archive File ....75 Program a Basic MCS 2000 Radio ....29 Get/Save/Program Menu ......19, 71–72 Program Data into Radio Codeplug ....34 Global TX Multiplier ..........233 Read Codeplug Data from Archive Files ..21...
