STEP 3.

Remove top and bottom hinge brackets. Retain
screws for later use. See Figure 9-2.

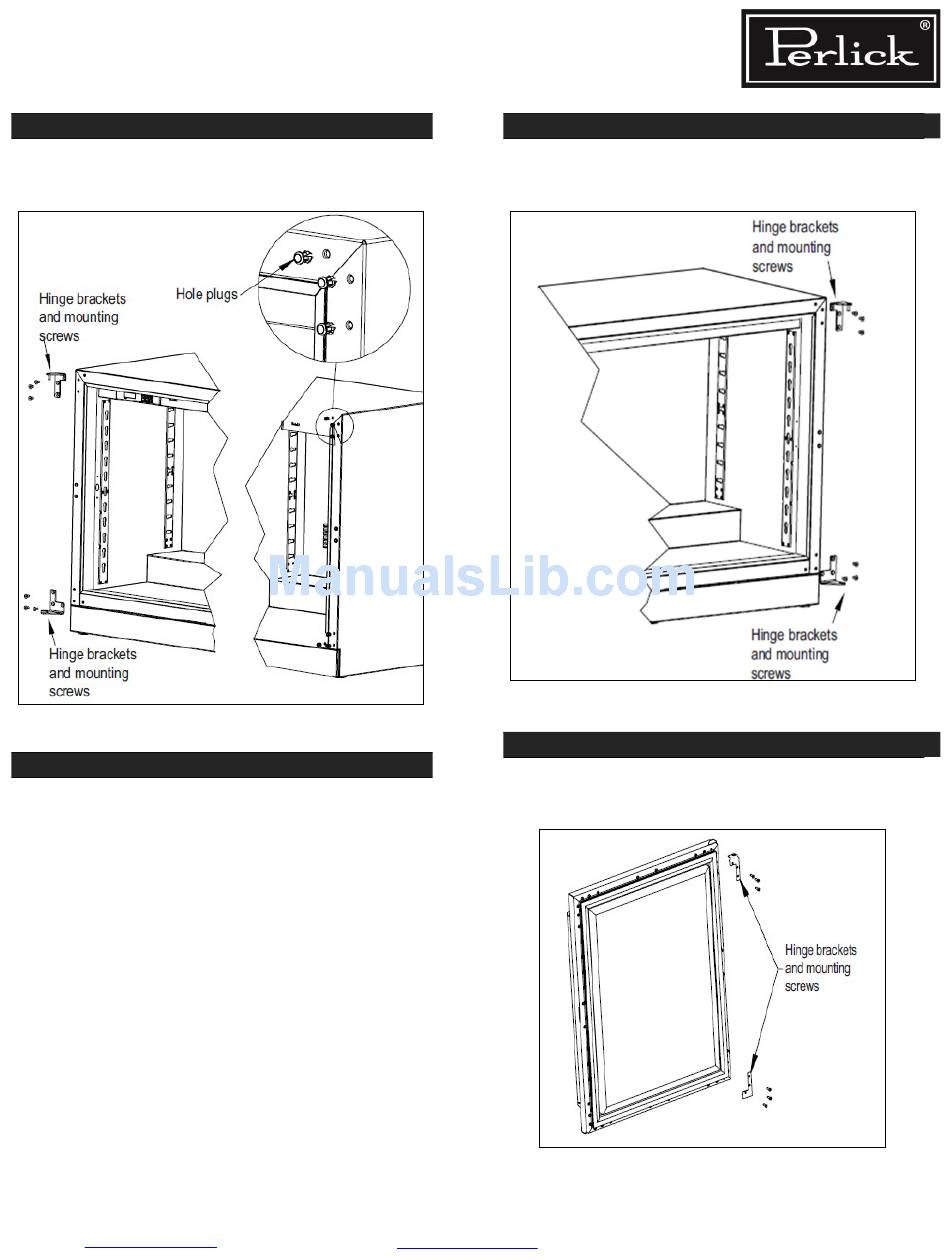

Figure 9-2. Hinge Removal

STEP 4.
Remove hole plugs from top and bottom hinge
bracket mounting holes. See Figure 9-2.
Place plugs in holes on opposite side made
vacant by removing hinges in step 3.
Return to Table of Contents
STEP 5.
Using screws removed in step 3, install top and
bottom hinge brackets from kit. See Figure 9-3.
STEP 6.
Remove top and bottom hinge brackets from
door (Figure 9-4). Retain screws for later use.
Replacement Parts
Figure 9-3. Hinge Installation
Figure 9-4. Door Brackets
