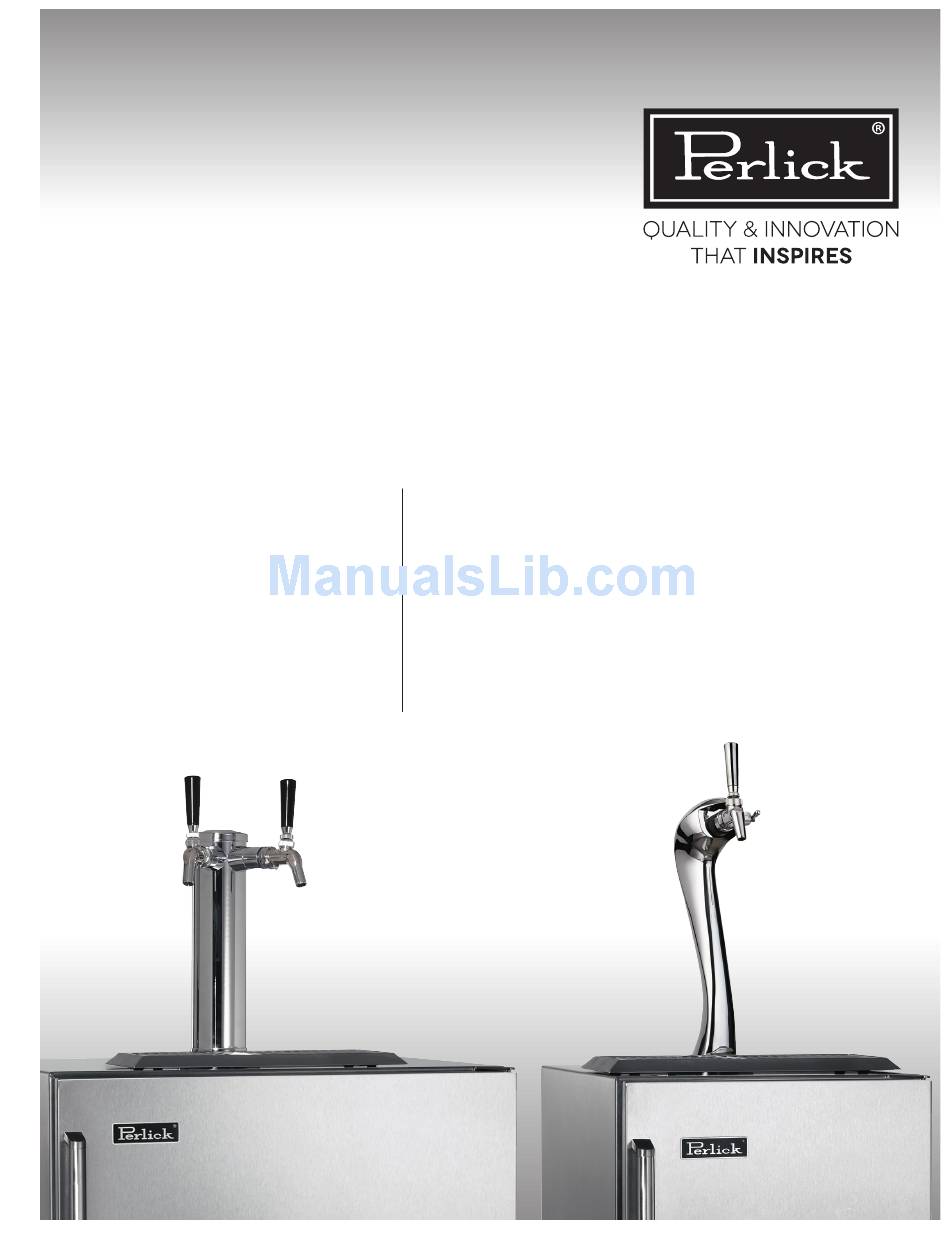

- Page 1 Installation Manual for Beer Dispensing Equipment HP15TS/TO 15” SIGNATURE SERIES HP24TS/TO 24” SIGNATURE SERIES HC24TB/TO 24” C-SERIES HP15TS-3-**A 15” SIGNATURE SERIES ADARA HP24TS-3-***A 24” SIGNATURE SERIES ADARA Form No. Z2349 Rev. 06/17/2015...
- Page 2 Signature Beer Tower unless noted. For your own protection, never return merchandise for credit without our approval. Keep CO2 cylinder away from We thank you again for selecting a high quality Perlick Beer DANGER heat. Rupture disc vents at 122°F Dispenser. Cheers! maximum.
- Page 3 PERLICK RESIDENTIAL INSTALLATION MANUAL FOR BEER DISPENSING EQUIPMENT INSTALLATION OF DISPENSING EQUIPMENT Open the tapping kit box and become familiar with its components. The instructions on pages 4 through 8 will demonstrate how to properly install the tapping equipment on your new Perlick Beer Dispenser.
- Page 4 Follow instructions on pages 4 through 9 to properly install Use the following web link to view the video the tapping equipment on your perlick unit, or watch our through your browser window: http://youtu.be/ Beer Dispenser Tapping Installation video. Information on NCKP6x2zZmo how to access this video can be found to the right.
- Page 5 PERLICK RESIDENTIAL INSTALLATION MANUAL FOR BEER DISPENSING EQUIPMENT Locate the dispensing head , black beer line(s), and hose clamp(s). Slide one end of each beer line onto the stainless steel tubes which protrude out the bottom of the dispensing head and clamp tight.
- Page 6 PERLICK RESIDENTIAL INSTALLATION MANUAL FOR BEER DISPENSING EQUIPMENT Install the Air Scoop Kit. Start by removing the upper set of screws located above the fan on the back wall of the cabinet. Assemble components from the kit as follows – Insert...
- Page 7 PERLICK RESIDENTIAL INSTALLATION MANUAL FOR BEER DISPENSING EQUIPMENT If installing a two faucet system, a CO2 manifold will need to be installed. Locate the red CO2 lines, CO2 manifold and a #10 x 1/2” sheet metal screw. Slide one end of each hose onto the barbed fittings on the manifold and clamp.
- Page 8 PERLICK RESIDENTIAL INSTALLATION MANUAL FOR BEER DISPENSING EQUIPMENT On the right rear sidewall there is a double column of screws. Remove the left screw. Locate the safety chain and a #10 x 1/2” sheet metal screw from the parts bag.
- Page 9 PERLICK RESIDENTIAL INSTALLATION MANUAL FOR BEER DISPENSING EQUIPMENT Before tapping, make sure the beer faucet is closed. To tap a keg, insert the coupler into the neck of the barrel. Turn the coupler clockwise until it stops (about an 1/8 turn), then push down on the top of the coupler and again turn clockwise until it stops.
- Page 10 PERLICK RESIDENTIAL INSTALLATION MANUAL FOR BEER DISPENSING EQUIPMENT CONNECTING THE REGULATOR TO THE CO2 CYLINDER 1. Remove the blue plug from the regulator fitting, but do not remove the carbonic washer. 2. Screw regulator onto gas cylinder valve. Tighten with wrench until vertically straight.
- Page 11 PERLICK RESIDENTIAL INSTALLATION MANUAL FOR BEER DISPENSING EQUIPMENT MOUNTING HOLE TEMPLATE FOR DRAFT ARMS AND ADARA SIGNATURE TOWERS NOTE: The hole placement for the Draft Arm and Adara towers are the same even though the decorative flanges are different shapes.
- Page 12 Contact Perlick Customer or Technical Service at 800.558.5592. Customer Service and Technical Service are available business days Monday through Friday from 8 a.m. to 4:30 p.m. CST. 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • info@perlick.com • www.perlick.com Form No. Z2349 Rev. 06/17/2015...
