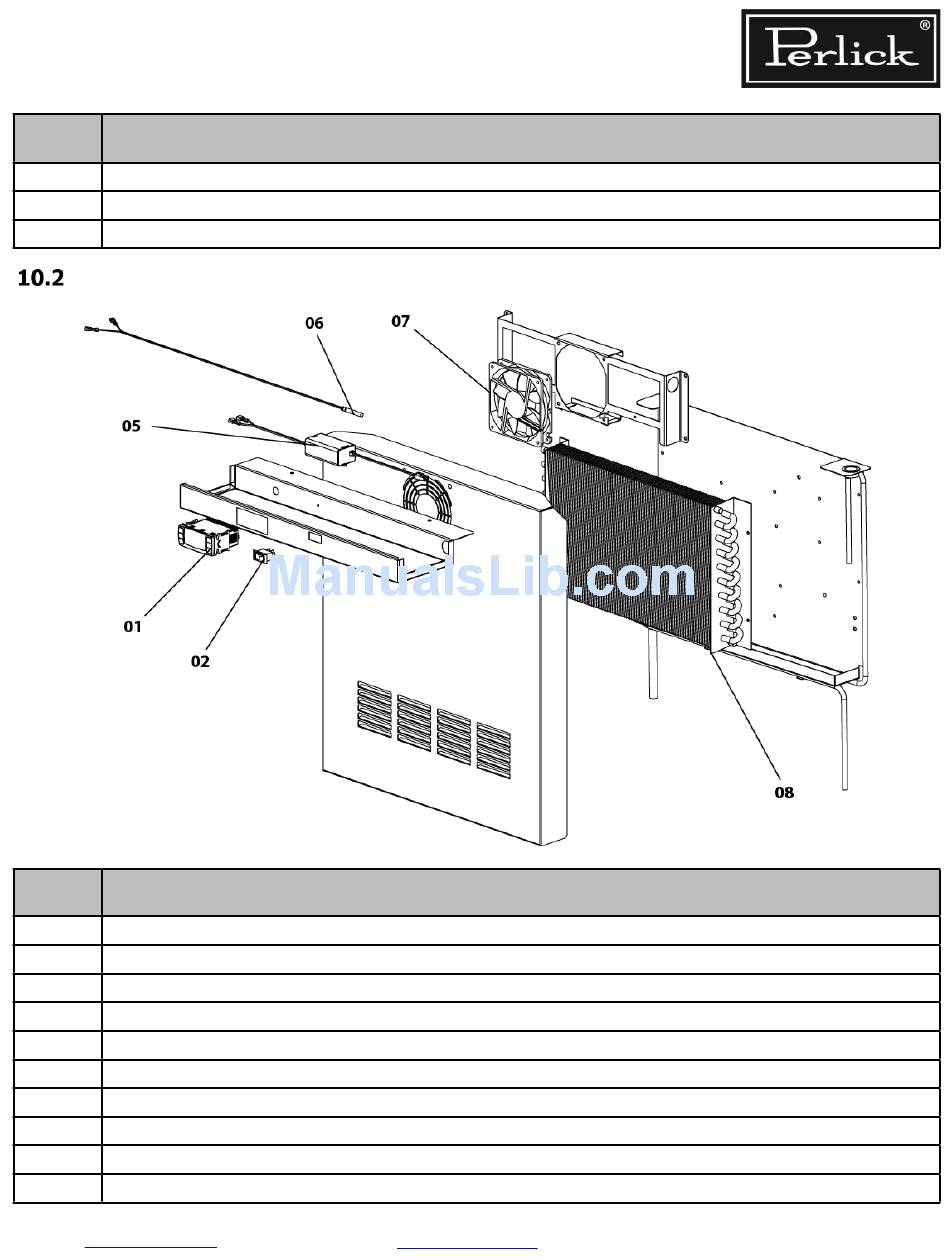

HP24 Low Temperature Cabinets - Evaporator Compartment Service Parts
ITEM
NUMBER
01
Digital Controller (Must Specify Temp. Zone)
02
3 Position Switch
03
Blue & White LED Light Board (Not Shown)
04
LED Light Cover (Not Shown)
05
LED Driver
06
Temperature Probe
07
Evaporator Fan Motor
08
Evaporator Fin Coil
09
Freezer L&S Line (Not Shown)
10
Main Control Box Wire Harness (Not Shown)
Return to
Table of Contents
DESCRIPTION
DESCRIPTION
Replacement Parts
Page 10-2
