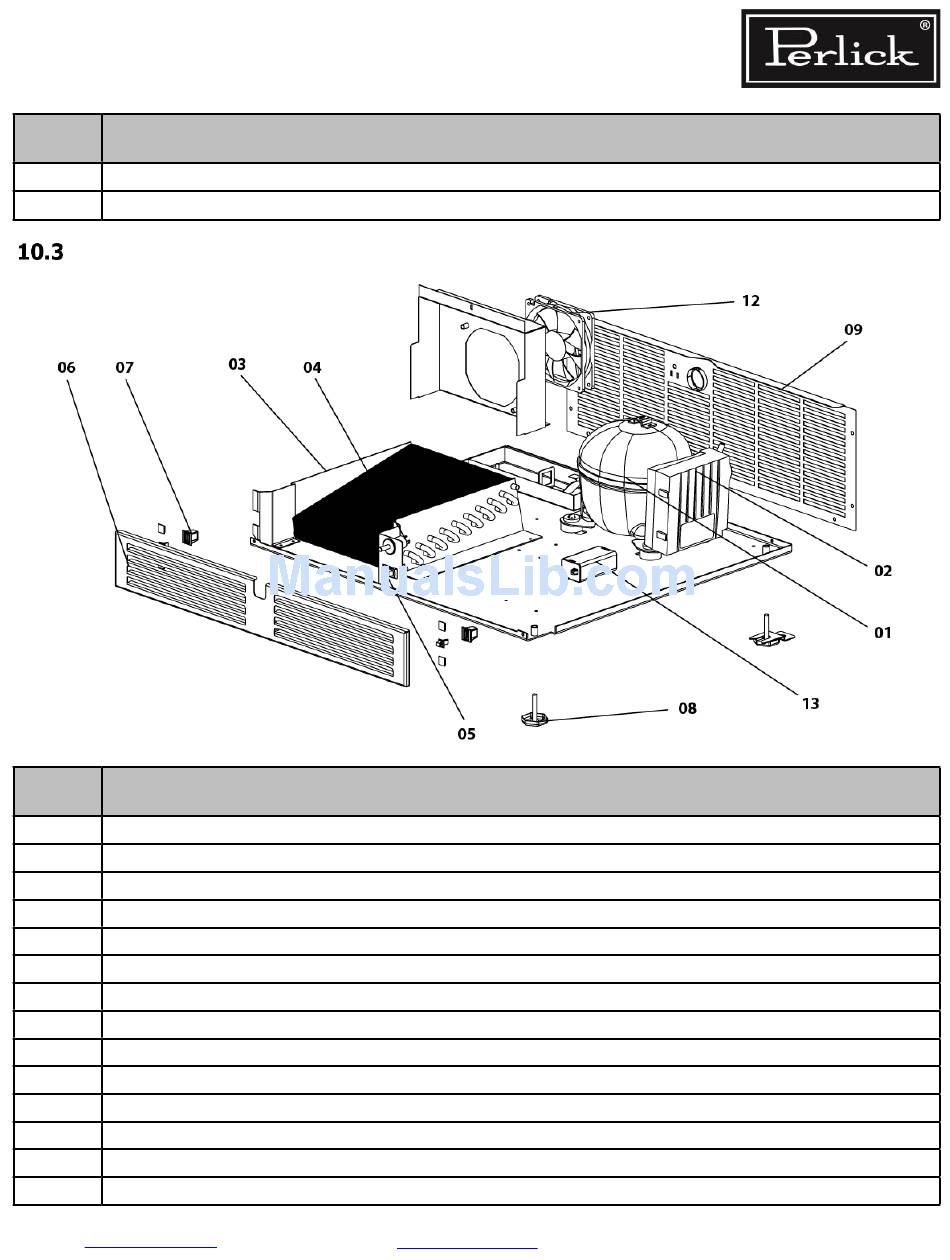

HP24 Medium Temperature Cabinets - Condenser Compartment Service Parts

ITEM
NUMBER
01 Compressor, VEMY3H W/O Inverter
02 Inverter, Compressor, 115V
03 Condenser Fin Coil
04 Door Plunger Switch
05 Single Pole Rocker Switch
06 Replacement Grill
06a Grill
06b Latch Strikes
06c Latches
06d Adhesive Poly. Bumpers
07 Grill Latch
08 Leveler Leg
09 Rear Cover Plate
10 Drier, 1/4" X 1/8" Inlets (Not Shown)
