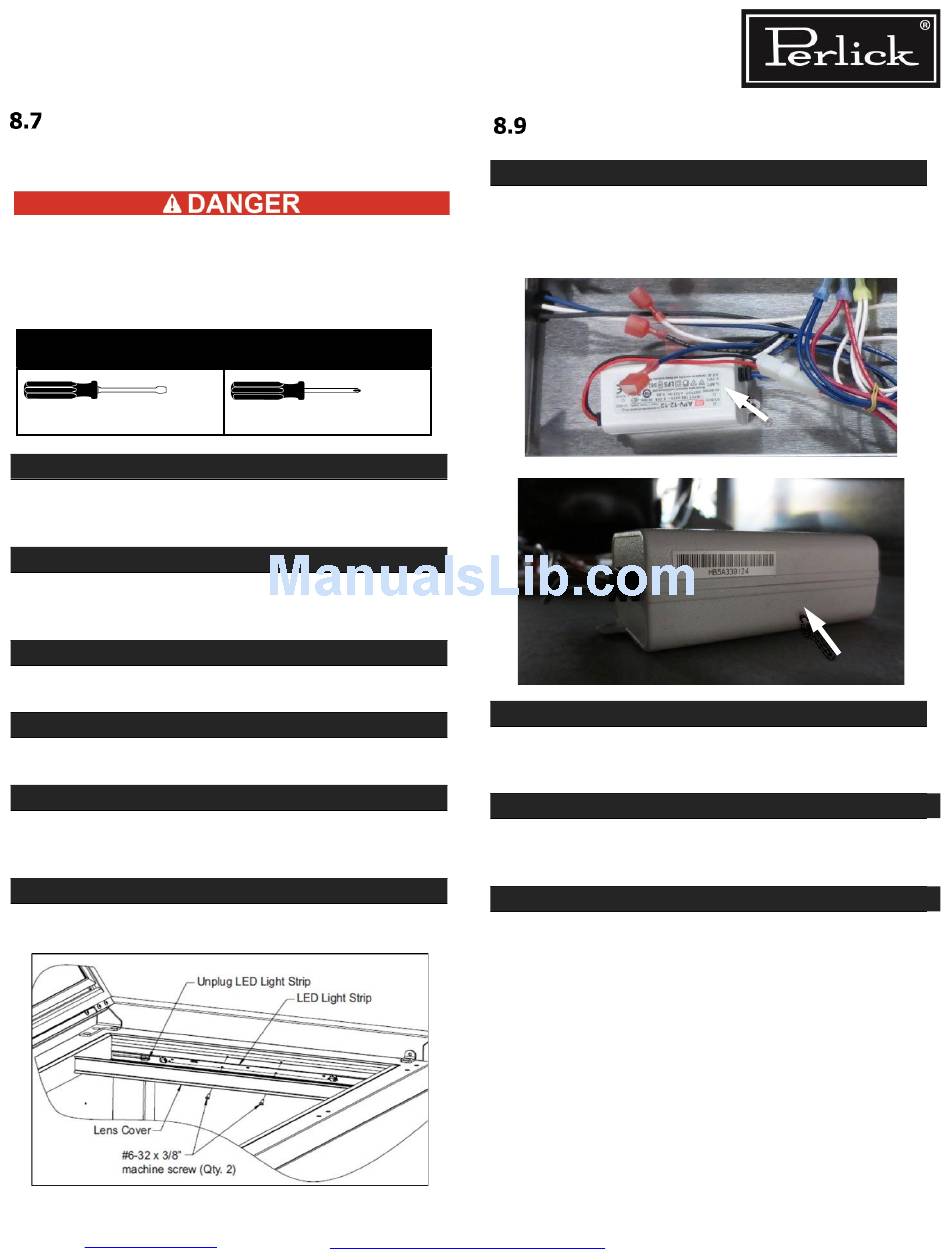

Figure 8-18. Interior Led Light; Step 2. Step - Perlick HA24BB Service Manual

Residential Refrigeration
and Front Venting Commercial Refrigeration
Service Manual
LED Lighting
8.7.1 Replace LED Light Strip
ELECTROCUTION HAZARD!! Never attempt to
repair or perform maintenance on unit until
main electrical power to the unit has been
disconnected!
Tools required
STEP 1.
Open door or remove upper or lower drawer.
See Section 9.4.2.
STEP 2.
Using a flat blade screwdriver, carefully pry off the
lens cover. See Figure 8-18.
STEP 3.
Remove two screws securing LED light to housing.
STEP 4.
Unplug the LED from the wiring harness.
STEP 5.
Plug new LED into harness and secure to housing
using screws removed in step 2.
STEP 6.
Snap LED cover into place.

Figure 8-18. Interior LED Light

Return to Table of Contents
STEP 1.
DC Drivers are located in control tray for LED lights
and behind front grille for DC evaporator and con-
denser fan motors.
STEP 2.
Check output voltage. If not within range printed
on the part, replace the part.
STEP 3.
Disconnect DC driver leads from the main wiring
harness.
STEP 4.
Use reverse procedure to install replacement DC
driver/Inverter.
Electrical System Repair Instructions
Replace DC Driver/Inverter
Page 8-33
