Figure 7-15. Dual Zone F-R Gen 3 Refrigeration System Diagram - Perlick HA24BB Service Manual

Residential Refrigeration
and Front Venting Commercial Refrigeration
Service Manual
Refrigeration System Diagrams
ITEM
NUMBER
1 Compressor
2 Condenser
3 Condenser Fan
4 Drier
5 Hot – Gas Bypass Valve
6 Capillary Tube (Lower)
7 Heat Exchanger (Lower)
8 Evaporator (Lower)
Return to Table of Contents

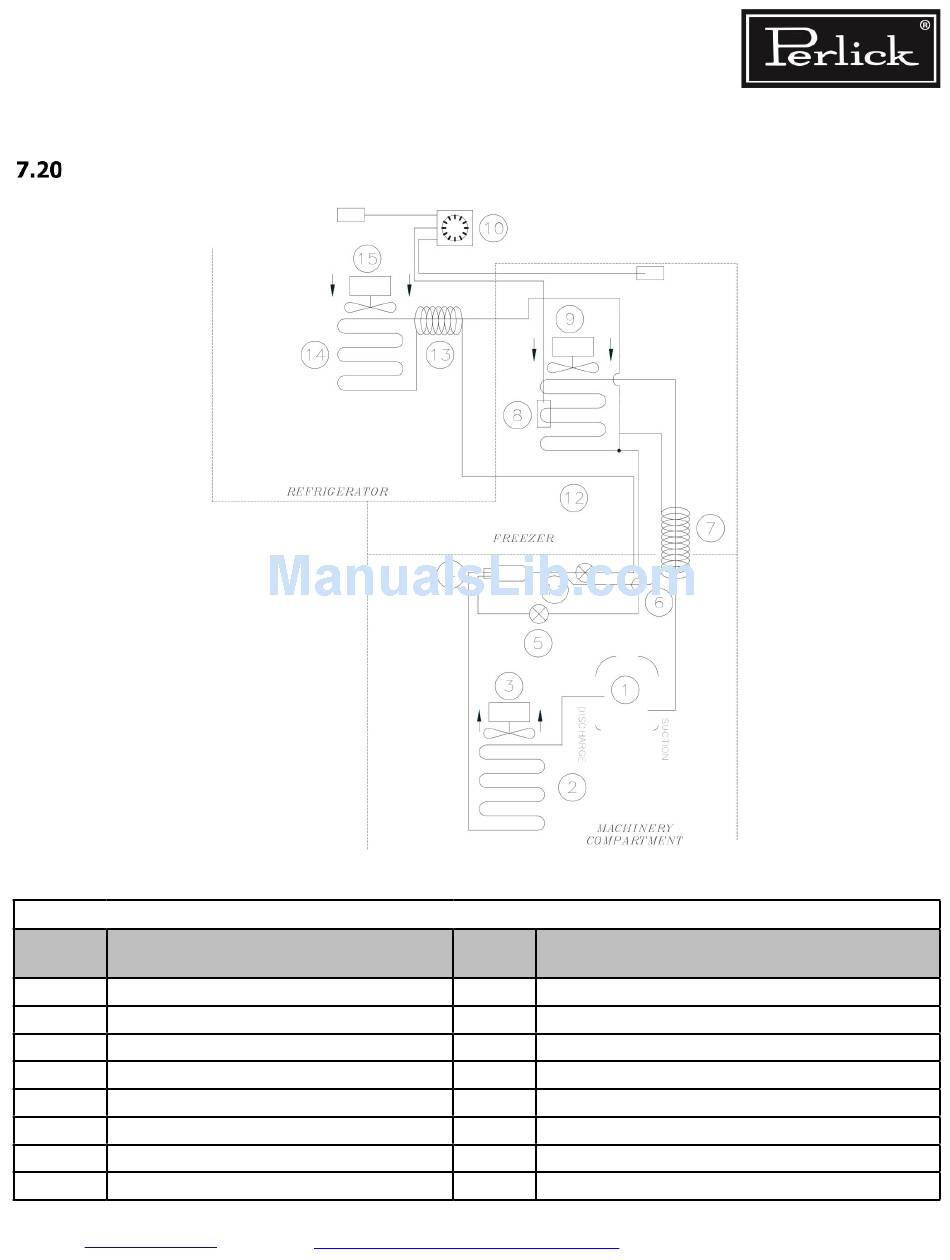

Figure 7-15. Dual Zone F-R Gen 3 Refrigeration System Diagram

Dual Zone: Freezer/Refrigerator
DESCRIPTION
Refrigeration System Repair Instructions
ITEM
NUMBER
9 Evaporator Fan (Lower)
10 Temperature Control
11 Liquid Line Solenoid (Upper)
12 Capillary Tube (Upper)
13 Heat Exchanger (Upper)
14 Evaporator (Upper)
15 Evaporator Fan (Upper)
DESCRIPTION
Page 7-15
