Residential Refrigeration
and Front Venting Commercial Refrigeration
Service Manual
ITEM
NUMBER
1 Compressor
2 Condenser
3 Condenser Fan
4 Drier
5 N/A
6 Capillary Tube (Lower)
7 Heat Exchanger (Lower)
8 Evaporator (Lower)
Return to Table of Contents

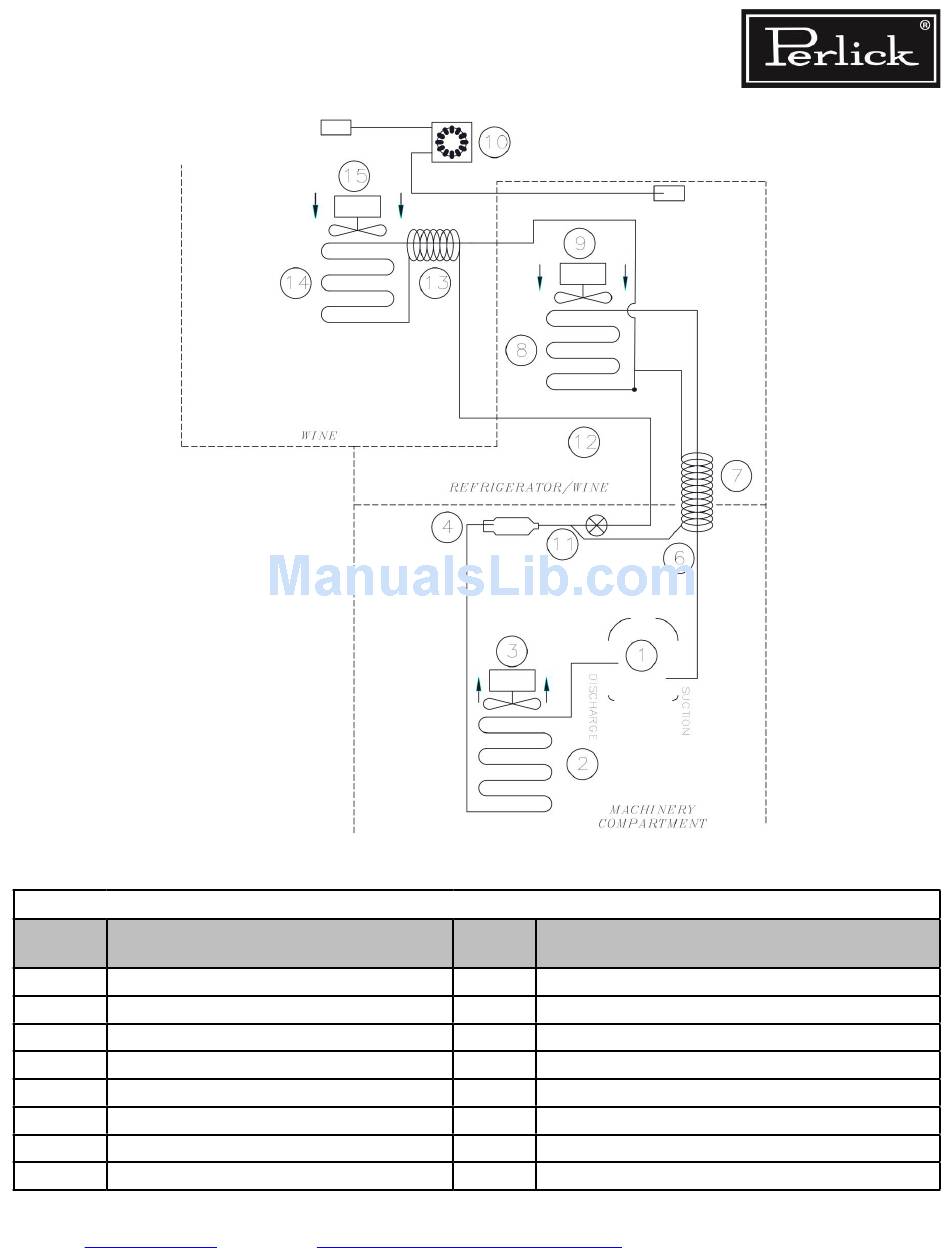

Figure 7-16. Dual Zone Med Temp Gen 3 Refrigeration System Diagram

Dual Zone: Refrigerator/Wine, Wine/Wine
DESCRIPTION
Refrigeration System Repair Instructions
ITEM
NUMBER
9 Evaporator Fan (Lower)
10 Temperature Control
11 Liquid Line Solenoid (Upper)
12 Capillary Tube (Upper)
13 Heat Exchanger (Upper)
14 Evaporator (Upper)
15 Evaporator Fan (Upper)
DESCRIPTION
Page 7-16
