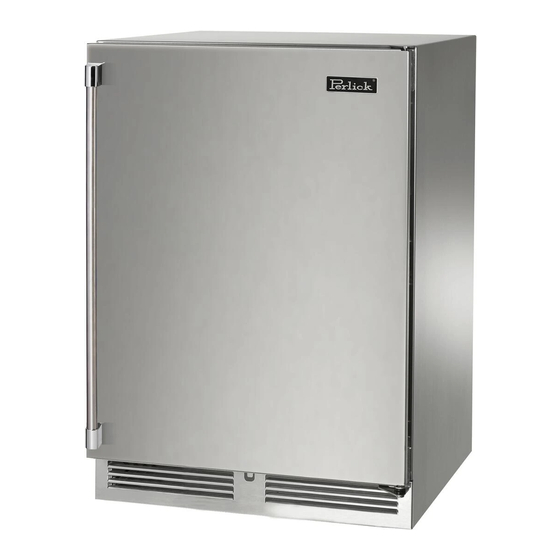

Luxury Operation & Installation Manual Signature Series (HP15-, HP24- and HP48-inch models) Beer Dispenser Models Only HP15TS HP24TS HP48RT Form No. Z2259 Rev. 06/07/2012... -
Page 3: Table Of Contents
Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) Table of Contents Door Options and Wood Overlay Installation ........15 Introduction ......................3 Operation ....................... 24 Warranty Registration ..................3 General ......................... 24 General Precautions ..................4 Temperature Controller ................ -
Page 4: General Precautions
Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) GENERAL PRECAUTIONS DANGER CAUTION Risk of child entrapment, before you throw away your old • Do not lift unit by drawer or door handles. refrigerator or freezer, take off the doors and leave shelves in •... -
Page 5: Overall Dimensions And Drawings
Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) HP15TS Model (Figure 1) Signature Series HP15 Models 50" Area in which Tapping electrical outlet must be located Power cord 65/8" off floor.* " " " Leg leveler can add 3/4"... - Page 6 Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) HP24TS Model (Figure 2) 50" Area in which electrical outlet must be located Signature Series HP24 Models Power cord 65/8" off floor. * " " Tapping "...
- Page 7 Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) HP48RT Models Signature Series HP48 Models 50" Area in which Door (Figure 3)/Drawer electrical outlet must be located. Models (Figure 4) 12 1/4" Power cord 81/4" off floor.* 11 15/16"...
-
Page 8: Preparing The Space
90°. Use a minimum 3-inch filler in Do not cut cardboard sleeve covering the unit. Cutting may corner installations to assure a 90° door opening. For HP15 models, result in damage to the exterior of the cabinet. -
Page 9: Anti-Tip Brackets
Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) ANTI-TIP BRACKETS Figure 5 - 24” Anti-Tip Kit Drawing 8 " ANTI-TIP BRACKET PART #63740 WARNING Unit may tip forward if loaded racks/shelves are all pulled out at the same time. To prevent tipping and provide a stable 32 "... -
Page 10: Installation
Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) INSTALLATION Figure 8 - Leveling CAUTION Finished flooring should be protected with the appropriate material to avoid damage from moving the unit. If unit has been laid on its back or sides, place unit upright and allow minimum of 24 hours before connecting power. -
Page 11: Shelving
Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) TOE PLATE INSTALLATION SHELVING When the unit is secured in place, install the louvered toe plate. HP15TS Single Door Beer Dispenser Secure louvered toe plate by snapping the latch into the latch Shelving not available catch on the unit. -
Page 12: Toe Plate Wood Overlay Drawings
Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) Figure 10- Toe Plate Wood Overlay Template for HP15TS... - Page 13 Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) Figure 11- Toe Plate Wood Overlay Template for HP24TS and HP48RT...
-
Page 14: Shelf And Drawer Removal
Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) Adjusting Full-extension Shelving (HP48RT only) Figure 12- Tab location 1. Pull the shelf out to its farthest position. Locate the tabs in the middle of both extenders (Figure 12). Lift one tab up while pushing the opposite tab down and pull shelf out. -
Page 15: Door Options And Wood Overlay Installation
The panel and door handles are supplied by the overlay. customer. 2. Insert lock body and attach with nut. All Perlick units accept any of the above door configurations and Lock installation drawings: are fully interchangable. Refer to Figure 16 for Lock Installation on 15” solid wood overlay panel (page 17). - Page 16 Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) Figure 15 - Solid wood overlay panel template for HP15TS...
- Page 17 Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) Figure 16 - Lock installation, solid wood overlay door panel for HP15TS...
- Page 18 Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) Figure 17 - Solid wood overlay panel template for HP24TS and HP48RT...
- Page 19 Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) Figure 18 - Glass wood overlay panel template for HP24TS and HP48RT...
- Page 20 Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) Figure 19 - Wood overlay drawer panel template for HP24TS and HP48RT...
- Page 21 Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) Figure 20- Lock installation, solid wood overlay door panel for HP24TS and HP48RT...
- Page 22 Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) Figure 21 - Lock installation, wood overlay glass door panel for HP24TS and HP48RT...
- Page 23 Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) Figure 22 - Lock installation, wood overlay drawer panel for HP24TS and HP48RT...
-
Page 24: Operation
Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) OPERATION Handle Installation CAUTION General Handle mounting on wood overlay door should be mounted on The unit is equipped with a state-of-the-art refrigeration system. overlay panel only (not the door) to avoid damage to the factory The variable speed compressor automatically changes speed door. -
Page 25: Temperature Controller
Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) TEMPERATURE CONTROLLER Document No. Z2305 © 2011 24”, 48” & 72” Cabinet Installation / Operation Manual... -
Page 26: Unit Temperatures/Product Temperature
0436; or call toll-free at (877) 376-5474. Glass panels can be cleaned using any standard glass cleaner available on the market today. You Perlick unit is pre-set in order to achieve the recommended temperature range when installed in a 70°F ambient room To clean interior and exterior non-metallic surfaces and removable temperature. -
Page 27: Installing Tapping Equipment
30. Make sure that the access hole in the refrigerated cabinet is in line with the counter top holes. Remove any obstructions from the access hole of the refrigerator. Follow instructions on pages 28 and 29 to properly install the tapping equipment on your Perlick unit. Dispensing head... - Page 28 Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) BEFORE YOU BEGIN... Wash tapping devices thoroughly. Flush beer and faucet lines and tapping device (keg coupler) with fresh water. 4. If installing a two or three faucet system, a CO2 manifold will need to be installed.
-
Page 29: Co2 Connections
Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) 7. Locate the keg coupler(s). Slide one of the red CO2 lines 10. Locate beer faucet(s) and install onto the dispensing head onto the larger barbed fitting of coupler and clamp. Locate shanks. -
Page 30: Mounting Hole Template For Draft Arms
Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) ... - Page 31 Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) CONNECTING THE REGULATOR TO THE CO2 REPLACING THE CO2 GAS CYLINDER CYLINDER 1. Turn CO2 hand valve clockwise until seated and close shut- off valve on regulator.
-
Page 32: Tapping A Keg
Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) TAPPING A SINGLE VALVE KEG TAPPING A SINGLE VALVE KEG (Sankey) (“Low Profile” Coupler) BEER OUT GAS IN Single Valve Coupler Step 1 BOTTOM ADAPTER LUG OPENINGS... -
Page 33: Cleaning The Beer System
Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) CLEANING THE BEER SYSTEM BEER SERVICE PROBLEMS The entire beer system, to include the faucet, flexible beer Wild Beer line and tapping devices must be cleaned at regular intervals. -
Page 34: Pouring The Perfect Glass Of Beer
Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) POURING THE PERFECT GLASS OF BEER STEP TWO STEP ONE Start with a clean glass. Place the glass at a 45° Start with a clean glass. angle, one inch below Place the glass at a 45°... -
Page 35: Troubleshooting
Operation & Installation Manual Signature Series Beer Dispensers (HP15, HP24 and HP48 models) TROUBLESHOOTING BEFORE CALLING FOR SERVICE: If the unit appears to be malfunctioning, read through NORMAL OPERATION first. If the problem persists, check the TROUBLESHOOTING GUIDE. Locate the problem in the guide and refer to the cause and its remedy before calling for service. The problem could be something which can be solved without a service call. - Page 36 Use only genuine Perlick replacement parts and accessories. Genuine Perlick parts and accessories are designed to work correctly with Perlick products and offer superior service life. The use of non-Perlick parts can damage the unit and may void the warranty •...
-
Page 37: Warranty
ENTIRE PRODUCT - Full Three Year Warranty*: For three (3) years from date of original purchase, Perlick Corporation’s warranty covers all parts and labor to repair or replace any part of the product, which proves to be defective in material and workmanship. - Page 38 ENTIRE PRODUCT - Full One Year Warranty: For one (1) year from date of original purchase, Perlick Corporation’s warranty covers all parts and labor to repair or replace any part of the product, which proves to be defective in material and workmanship.
