Figure 7-2. Sealing Compound At Wiring Pass-Through - Inside; Figure 7-3. Evaporator Condensate Drain - Perlick HA24BB Service Manual

Residential Refrigeration
and Front Venting Commercial Refrigeration
Service Manual

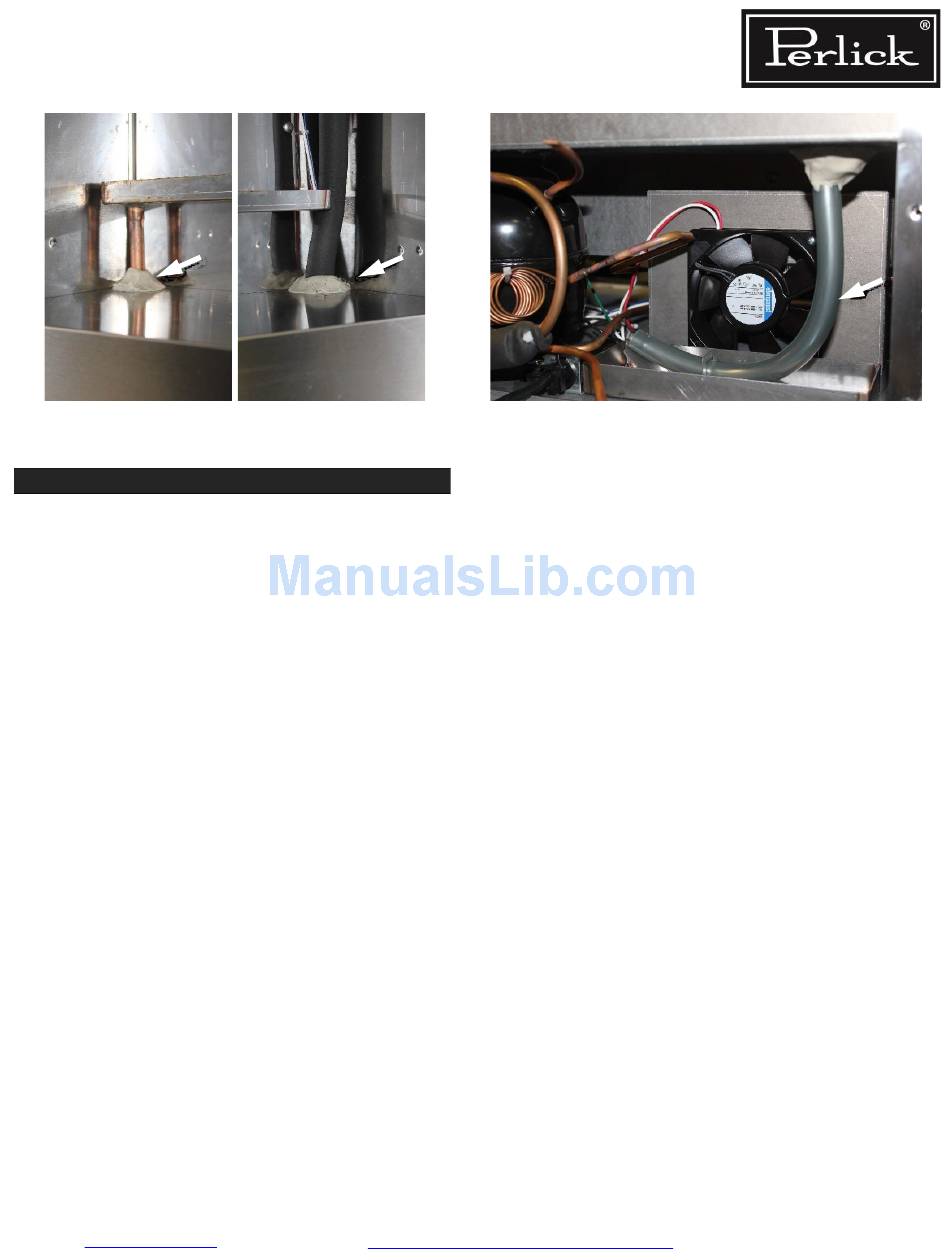

Figure 7-2. Sealing Compound at Wiring Pass-through –
STEP 3. Drain
Check that the evaporator condensate drain is
secure and connected. Figure 7-3.
Return to Table of Contents
Inside
Refrigeration System Repair Instructions

Figure 7-3. Evaporator Condensate Drain

Note: Drain tube should be routed through metal
bracket and end of tube should be retained by metal
insert to create a trap. This trap should be filled with
water to prevent air from moving through the tube
and into the cabinet. Sometimes, gurgling sounds
will be heard upon the door closing as the internal
cabinet pressure changes requiring air to be pushed
out which happens through the drain tube trap.
Page 7-2
