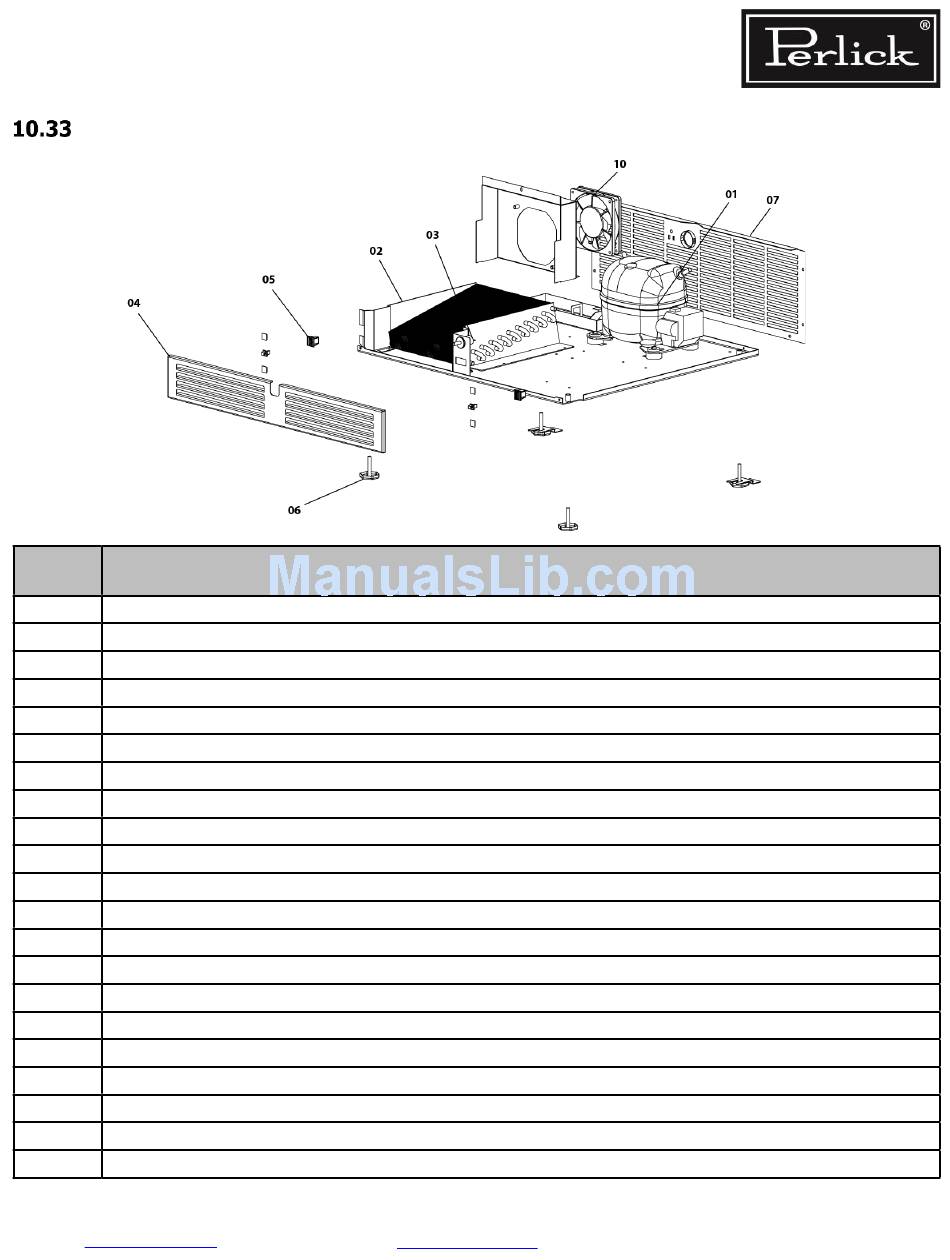

HC24RS &HC24WS Cabinets - Condenser Compartment Service Parts
ITEM
NUMBER
01 Replacement Compressor Kit
Compressor, EM30HHR
01a
Drier, (2) 1/4" I.D. Inlets & 1/8" I.D. Outlet (Not Shown)
01b
1/4" Access Valve With 1/4" O.D. Tube Extension (Not Shown)
01c
Hairpin Cotter Pin (Not Shown)
01d
Grommet
01e
3/8" Washer (Not Shown)
01f
02 Condenser Fin Coil
03 Door Plunger Switch
04 Replacement Grill
Grill
04a
Latch Strikes
04b
Latches
04c
Adhesive Poly. Bumpers
04d
05 Grill Latch
06 Leveler Leg
07 Rear Cover Plate
08 Drier, 1/4" X 1/8" Inlets (Not Shown)
09 Power Cord (Not Shown)
10 Condenser Fan Motor
11 Machine Compartment Wire Harness (Not Shown)
Return to Table of Contents
DESCRIPTION
Replacement Parts Page 10-37
