STEP 3.

Reposition each bracket separately. Grasp middle
of bracket, pull front end up and out, and then
forward to remove.
STEP 4.
Place brackets at desired location and reinstall
shelf(s). Ensure shelf is locked into slides by
sliding the shelf out until the slide is fully ex-
tended.
9.4.2 Cleaning/Lubricating Drawer or Shelf Extenders
Completely empty shelf or drawer before
removing.

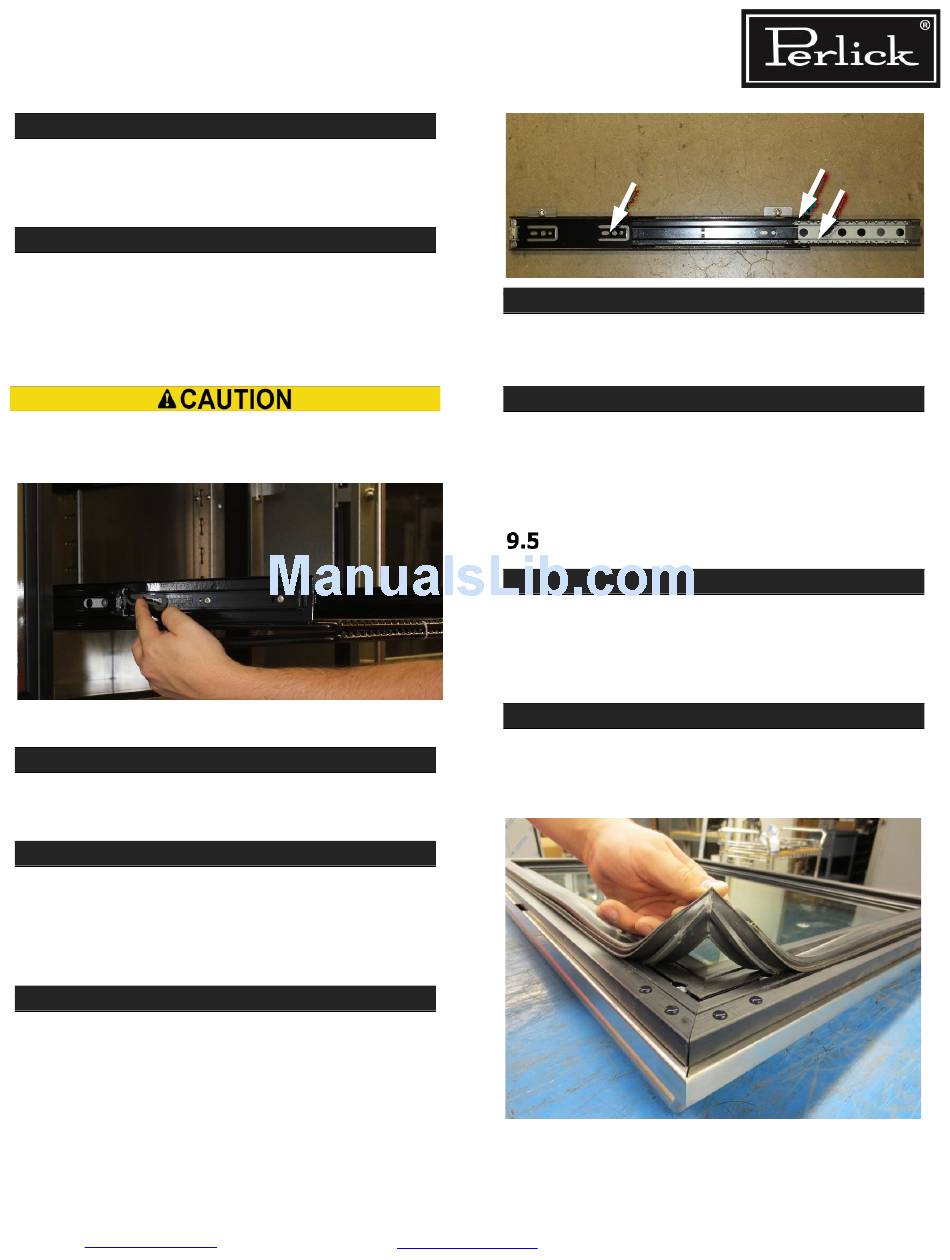

Figure 9-11. Removing/Installing Shelf
STEP 1.
Drawer or shelf must be removed to clean or
lubricate the extenders.
STEP 2.
Pull the drawer or shelf out to its furthest po-
sition. Locate the slide-locking mechanism in
the middle of both extenders. Release the slide
locking mechanisms and pull drawer or shelf out
of the slide. See Figure 9-10.
STEP 3.
Use a food grade lubricant to lubricate the
draweror shelf extenders. Lubricate the ball
bearings and mating surfaces.
Return to Table of Contents
STEP 4.
Place drawer onto the extenders, making sure
the drawer or shelf brackets engage the slots on
each side.
STEP 5.
Push the drawer or shelf into the cabinet, listen-
ing for clicks from the slide locking mechanisms.
Pull the drawer or shelf out to full extension of the
slide to ensure the slides are mating properly.
Replace Door & Drawer Gasket
STEP 1.
Door and drawer gaskets can be replaced without
removing the door or drawer from the cabinet.
Open the door or drawer.
STEP 2.
Remove gasket by lifting at one corner and pull-
ing gasket away from door/drawer. Work around
the door/drawer until gasket is free.
Replacement Parts Page 9-5
