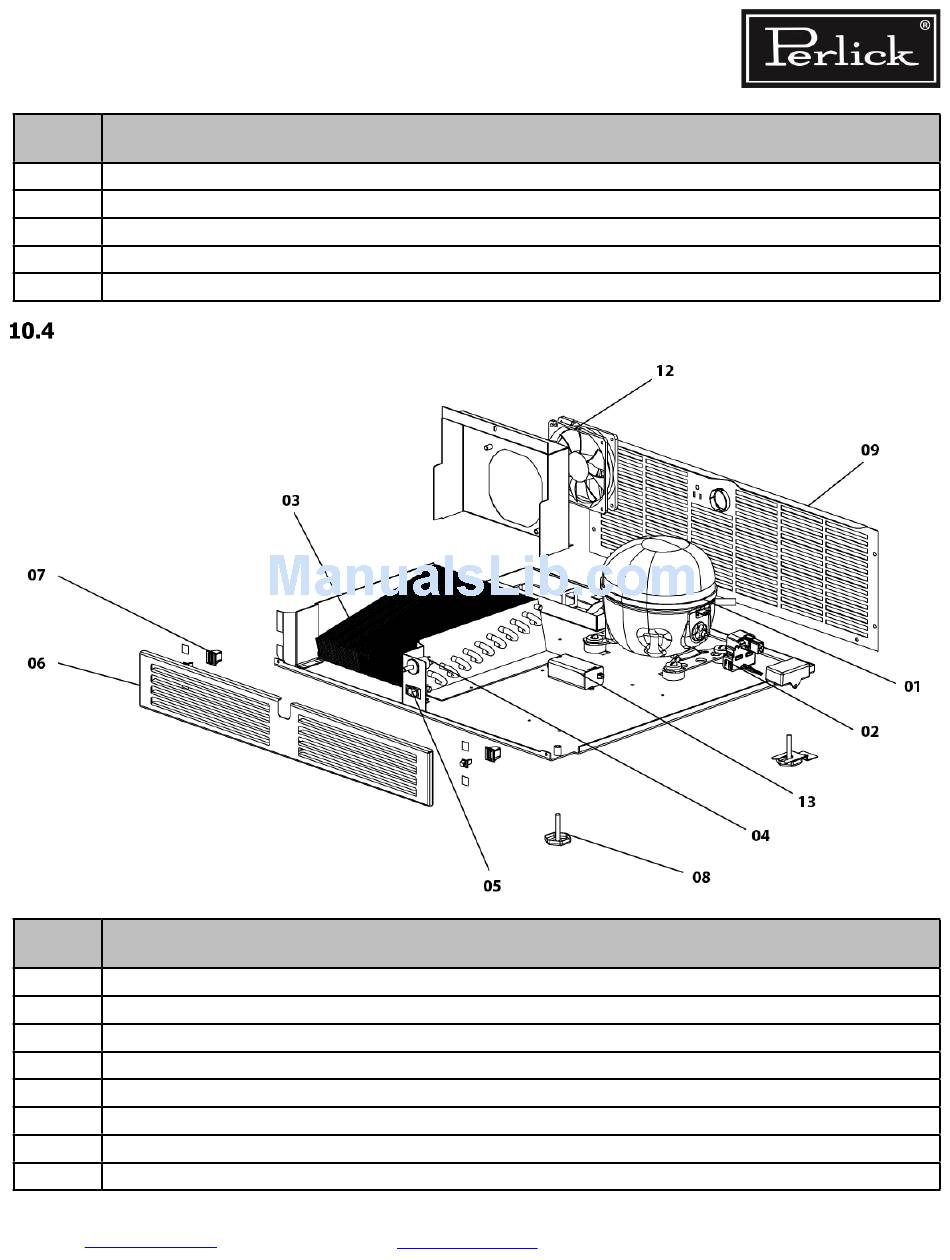

HP24 Low Temperature Cabinets - Condenser Compartment Service Parts

ITEM
NUMBER
01 Replacement Compressor Kit
Compressor, EM3D
01a
TSD Assembly
01b
Run Capacitor, 12uf
01c
Bale Strap (Not Shown)
01d
Drier, (2) 1/4" I.D. Inlets & 1/8" I.D. Outlet
01e
1/4" Access Valve with 1/4" O.D. Tube Extension (Not Shown)
01f
Hairpin Cotter Pin (Not Shown)
01g
Return to Table of Contents
DESCRIPTION
DESCRIPTION
Replacement Parts Page 10-4
