Residential Refrigeration
and Front Venting Commercial Refrigeration
Service Manual
ITEM
NUMBER
1
Compressor
2
Condenser
3
Condenser Fan
4
Drier
5
Hot - Gas Bypass Valve
Return to
Table of Contents

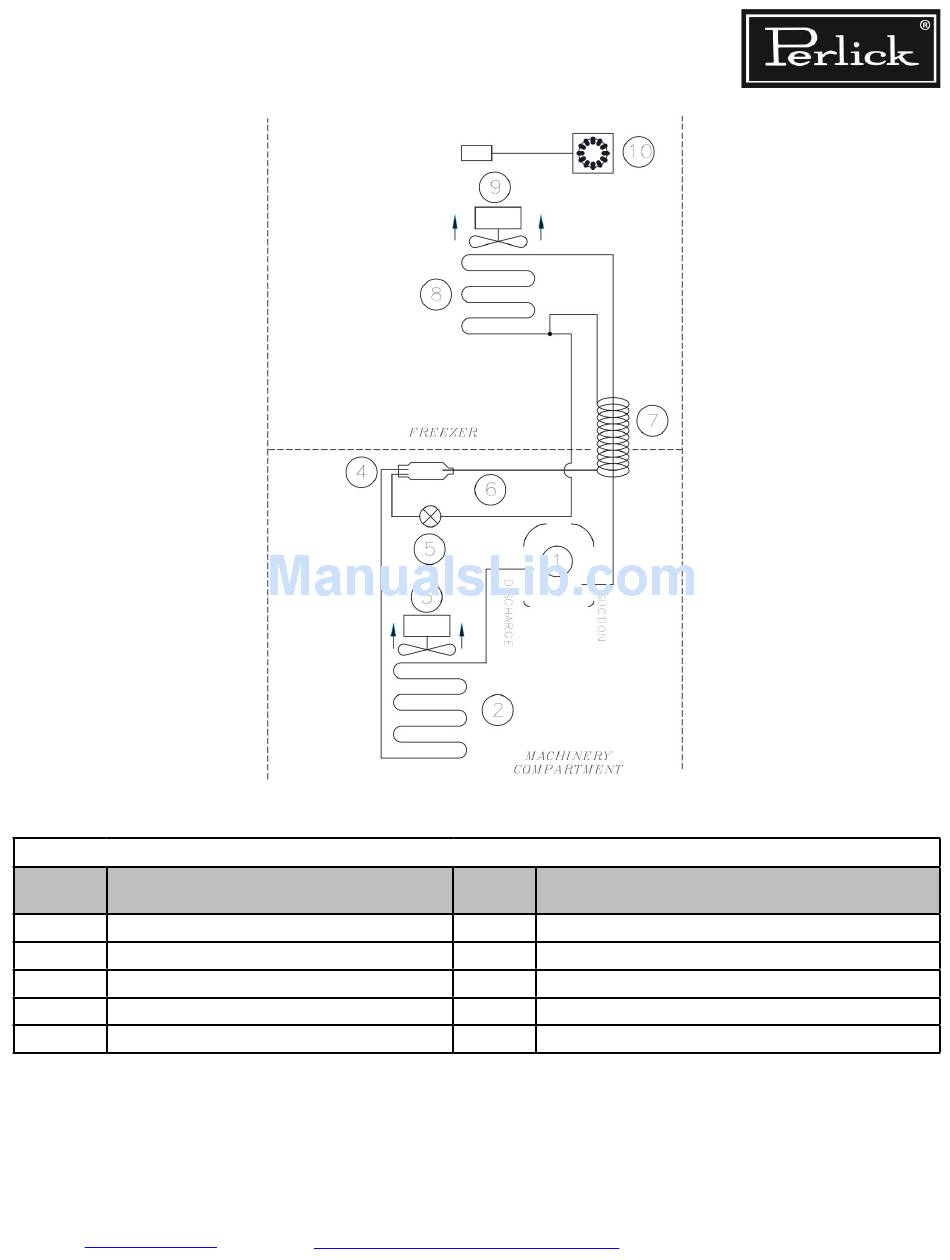

Figure 7-17. Freezer/Commercial Chiller Refrigeration System Diagram
Freezer/Commercial Chiller
DESCRIPTION
Refrigeration System Repair Instructions
ITEM
NUMBER
6
Capillary Tube
7
Heat Exchanger
8
Evaporator
9
Evaporator Fan
10
Temperature Control
DESCRIPTION
Page 7-17
