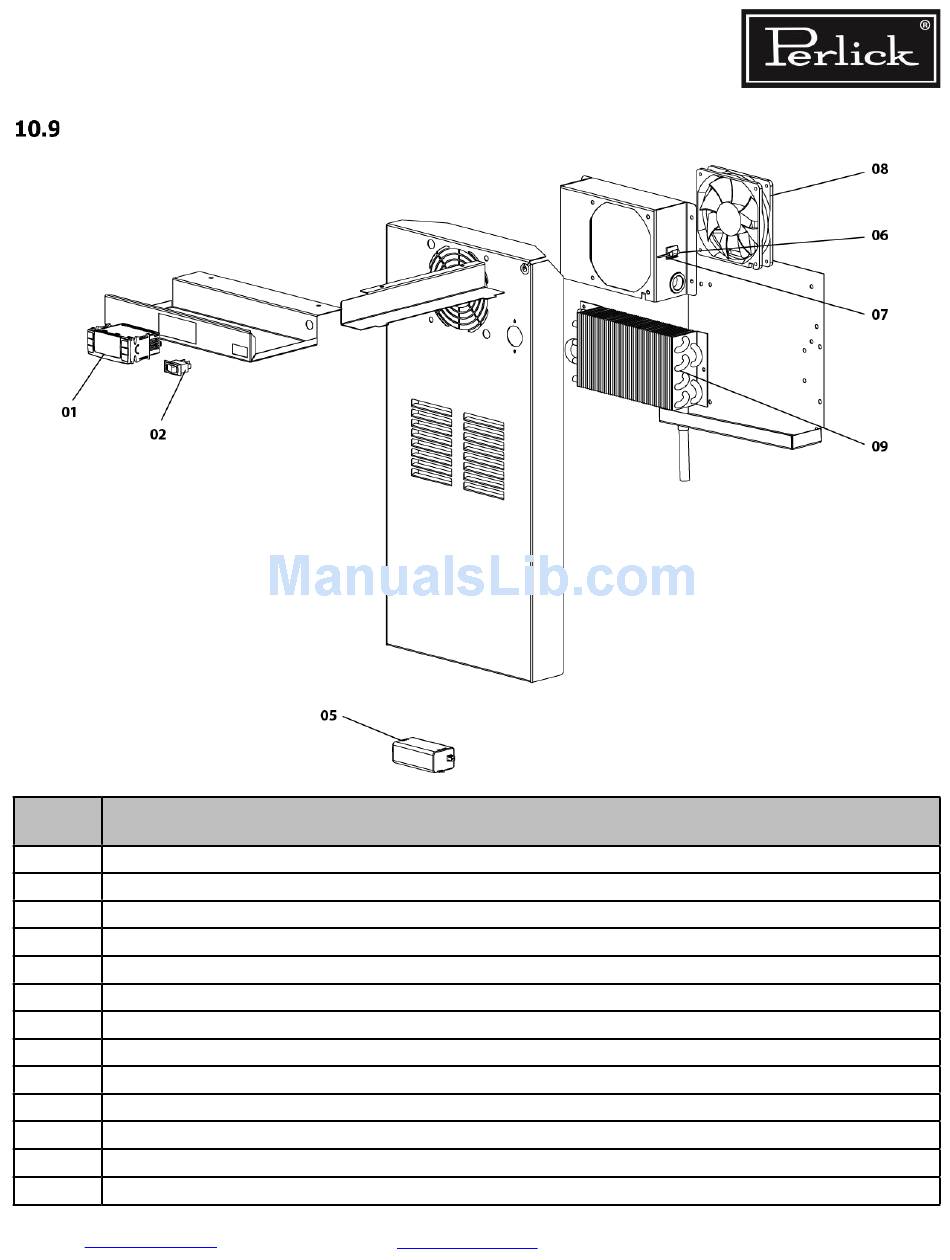

HP15 Cabinets – Evaporator Compartment Service Parts
ITEM
NUMBER
01
Digital Controller (Must Specify Temp. Zone)
02
3 Position Switch
03
Blue & White LED Light Board (Not Shown)
04
Led Light Cover (Not Shown)
05
Led Driver
06
Temperature Probe
07
Temperature Probe Clip
08
Evaporator Fan Motor
09
Evaporator Fin Coil
10
L&S Line (Not Shown)
11
Main Control Box Wire Harness (Not Shown)
12
Dc Fan Motor Wire Harness (Not Shown)
13
Led Driver to Led Light Board Wire Harness (Not Shown)
Return to
Table of Contents
DESCRIPTION
Replacement Parts
