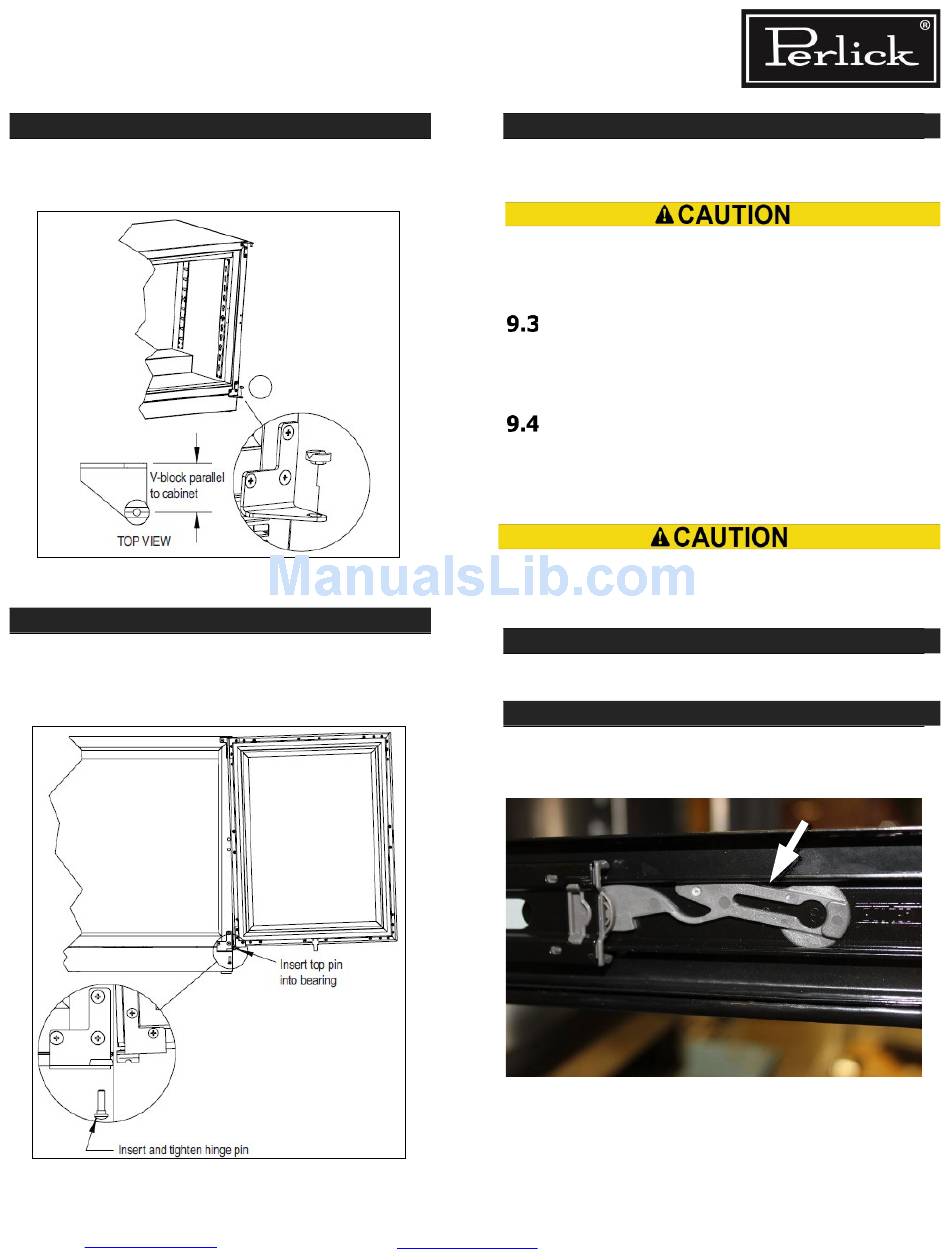

STEP 11.

Place lower V-block into lower cabinet hinge with
notch parallel to cabinet. See Figure 9-8.
Figure 9-8. Installing V-Block
STEP 12.
Lift door assembly and insert top pin into
bearing. Move door toward cabinet and align
V-blocks. See Figure 9-8 and Figure 9-9.
Figure 9-9. Installing Door
Return to Table of Contents
STEP 13.
Insert and tighten lower hinge pin to complete
assembly.
Do not overtighten lower hinge pin as
threads engage into lower plastic v-block.
Hand tighten only.
Replace Door Hinge
See Section 9.2 for hinge reversal instructions and
follow applicable steps for just replacing the hinge.
Drawer & Shelf Slides
9.4.1 Shelving Adjustment
Completely empty shelf or drawer before
removing.
STEP 1.
Open door and slide shelf out.
STEP 2.
Release slide-locking mechanism. Pull out
shelf and remove from unit.
Figure 9-10. Shelf Locking Mechanism
Replacement Parts Page 9-4
