STEP 5.
Reverse this instruction to connect the replacement
controller.
8.6.4 Temperature Probe
Each refrigerated zone has one 10K ohm NTC probe,
which senses compartment temperature. Sensing
probe is located behind the control cradle or next to
the evaporator fan behind the cover panel. Defrost
termination probe (evaporator). Additionally, low
temperature products may have a defrost
termination probe inserted into the fins of the
evaporator.
Return to Table of Contents
For temperature to resistance values when trouble-
shooting probe or temperature issues.
Table 8-21. Temperature – Resistance Values
\
To replace temperature probe, refer to section
8.6.3.
Electrical System Repair Instructions

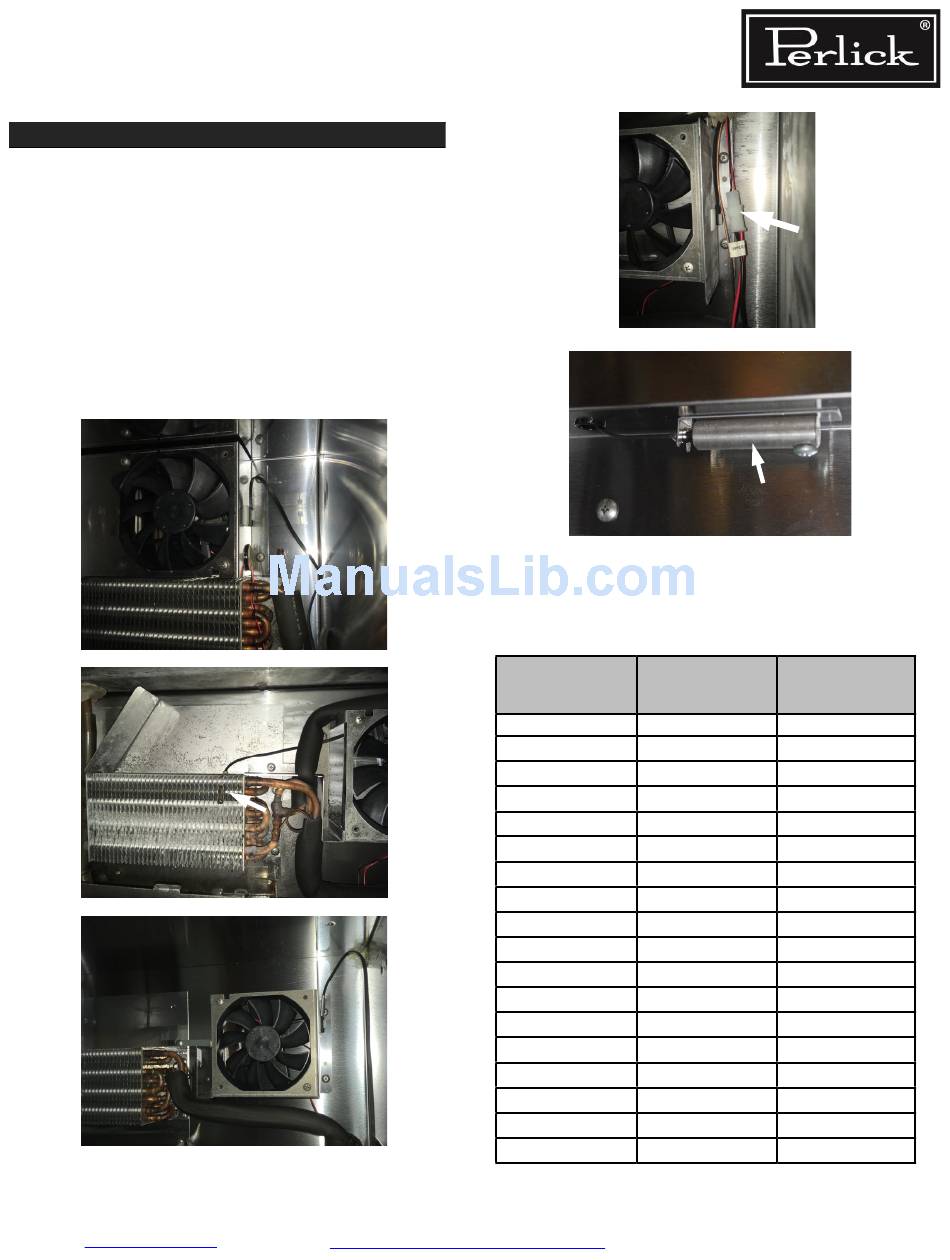

Figure 8-17. Temperature Probe

TEMPERATURE TEMPERATURE
(°C)
-30
-25
-20
-15
-10
-5
0
5
10
15
20
25
30
35
40
45
50
55
Temperature
Probe
RESISTANCE
(°F) (OHMS)
-22 111300
-13 86430
-4 67770
5 53410
14 42470
23 33900
32 27280
41 22050
50 17960
59 14690
68 12090
77 10000
86 8313
95 6940
104 5827
113 4911
122 4160
131 3536
