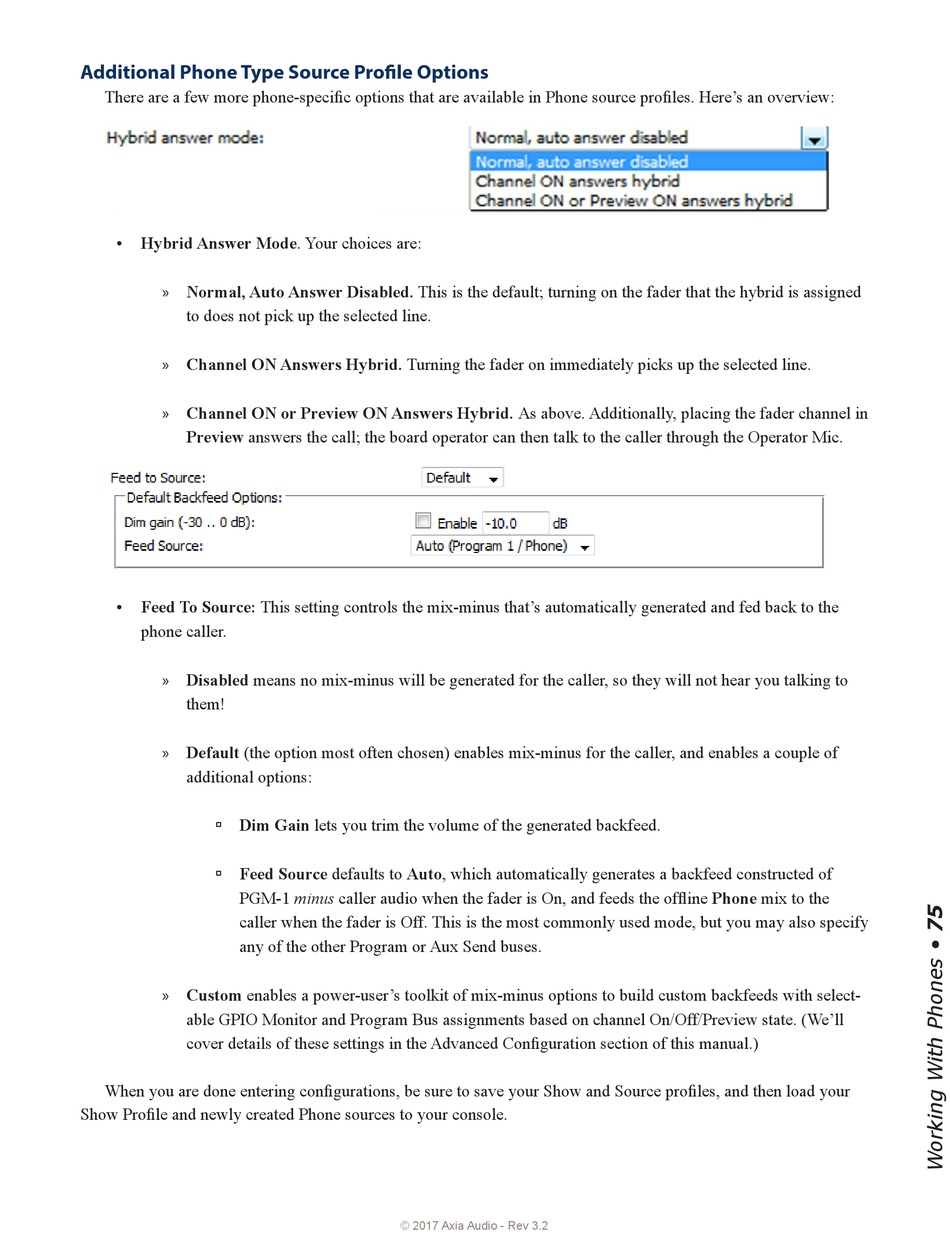

Additional Phone Type Source Profile Options - Axia Fusion Installation And User Manual

Additional Phone Type Source Profile Options

There are a few more phone-specific options that are available in Phone source profiles. Here's an overview:
• Hybrid Answer Mode. Your choices are:
» Normal, Auto Answer Disabled. This is the default; turning on the fader that the hybrid is assigned
to does not pick up the selected line.
» Channel ON Answers Hybrid. Turning the fader on immediately picks up the selected line.
» Channel ON or Preview ON Answers Hybrid. As above. Additionally, placing the fader channel in
Preview answers the call; the board operator can then talk to the caller through the Operator Mic.
• Feed To Source: This setting controls the mix-minus that's automatically generated and fed back to the
phone caller.
» Disabled means no mix-minus will be generated for the caller, so they will not hear you talking to
them!
» Default (the option most often chosen) enables mix-minus for the caller, and enables a couple of
additional options:
Dim Gain lets you trim the volume of the generated backfeed.
à
Feed Source defaults to Auto, which automatically generates a backfeed constructed of
à
PGM-1 minus caller audio when the fader is On, and feeds the offline Phone mix to the
caller when the fader is Off. This is the most commonly used mode, but you may also specify
any of the other Program or Aux Send buses.
» Custom enables a power-user's toolkit of mix-minus options to build custom backfeeds with select-
able GPIO Monitor and Program Bus assignments based on channel On/Off/Preview state. (We'll
cover details of these settings in the Advanced Configuration section of this manual.)
When you are done entering configurations, be sure to save your Show and Source profiles, and then load your
Show Profile and newly created Phone sources to your console.
