Enter the server information in the Phone URL field, so:
•
vx:username:password@xxx.xxx.xxx.xxx
where xxx.xxx.xxx.xxx
protocol, so the vx prefix in this example is correct.)
A shortcut in Fusion assumes default values. If default values are used in your phone system, it would be
possible to enter
vx:xxx.xxx.xxx.xxx
in this field, without explicitly entering the username and password.
username and password. Default settings of the iQ6/Hx6 is a username of user with no password.
In the Host/Studio Name box, enter the value of Hybrid 1&2.
•
Save your changes and load the Show Profile to your console. The Call Controller will show a dot in the first 6
line selections if the lines are present. If the first line selector is showing a spinning square, there is difficulty logging
into the Phone system. Check your settings and verify the Telos phone system is online.

Operating Options

When selecting a line directly using the Call Controller module, the default behavior is for the Left column of
buttons to assign the line to Hybrid 1, and the Right column to assign the line to Hybrid 2. But when using phone
systems with more than two hybrids, you may assign lines to hybrids other than the default by using the appropriate
Source Profile options.

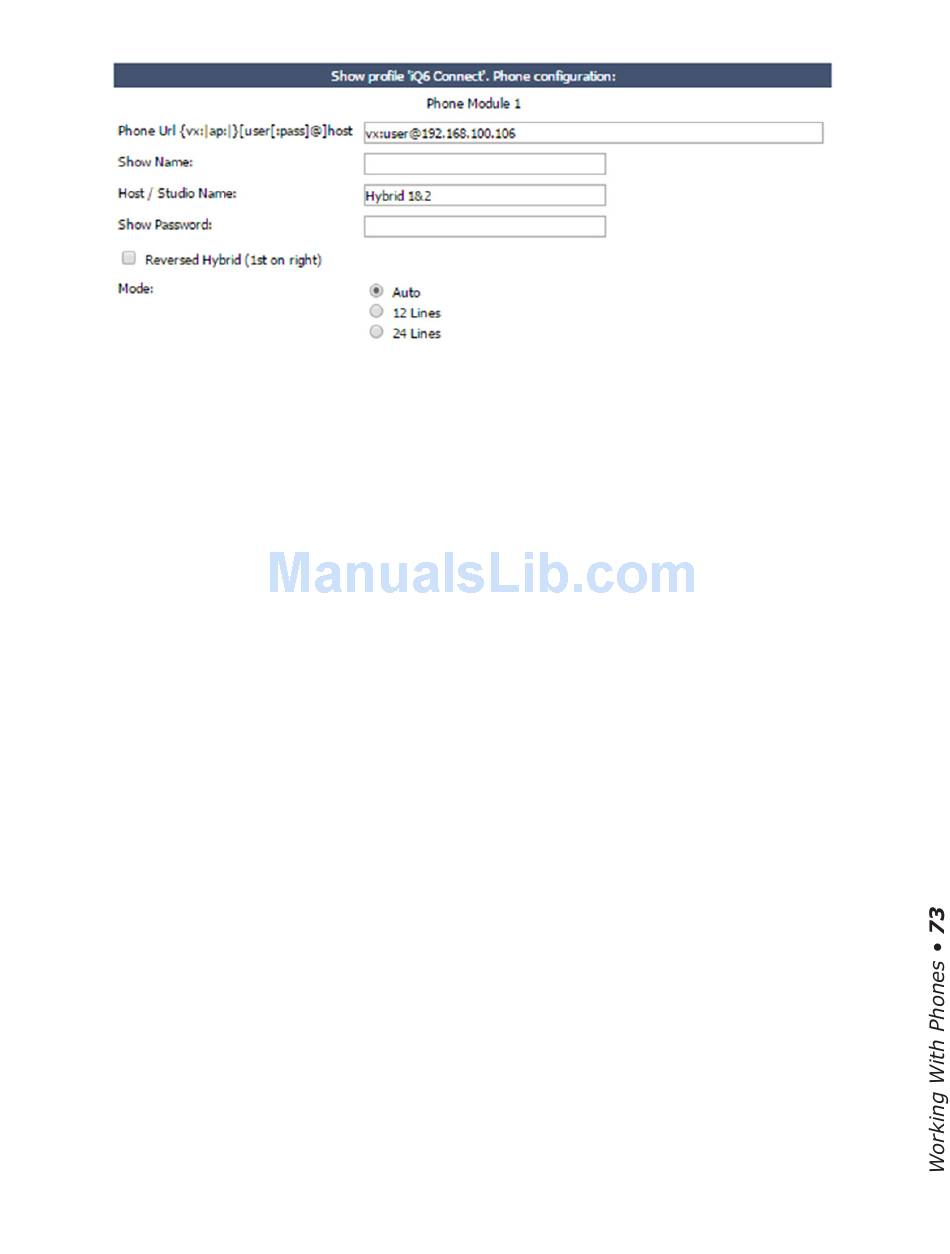

For instance, in the example illustrated in the screen capture above, the third Hybrid in an Nx system is
configured for use with a console that has a single call controller installed. This Source Profile would be assigned to
any of the standard fader strips on the console (not to the fader associated with the Call Controller).
To select a line to use with this #3 hybrid, the board operator would press the A key on the fader strip. The words
Take Line will then appear on the channel display; the operator can then select any line from the Call Controller and
it will be assigned to this hybrid for use.
is the IP address of your phone system. (Hx6 and iQ6 systems use Telos VX control
© 2017 Axia Audio - Rev 3.2
Check your Telos product to verify
