When the StudioEngine has booted, its display will indicate an error state. Don't panic! An IP address needs to
be entered. To do this:
1. Tap the rotary encoder on the front panel, once. A menu view will appear.

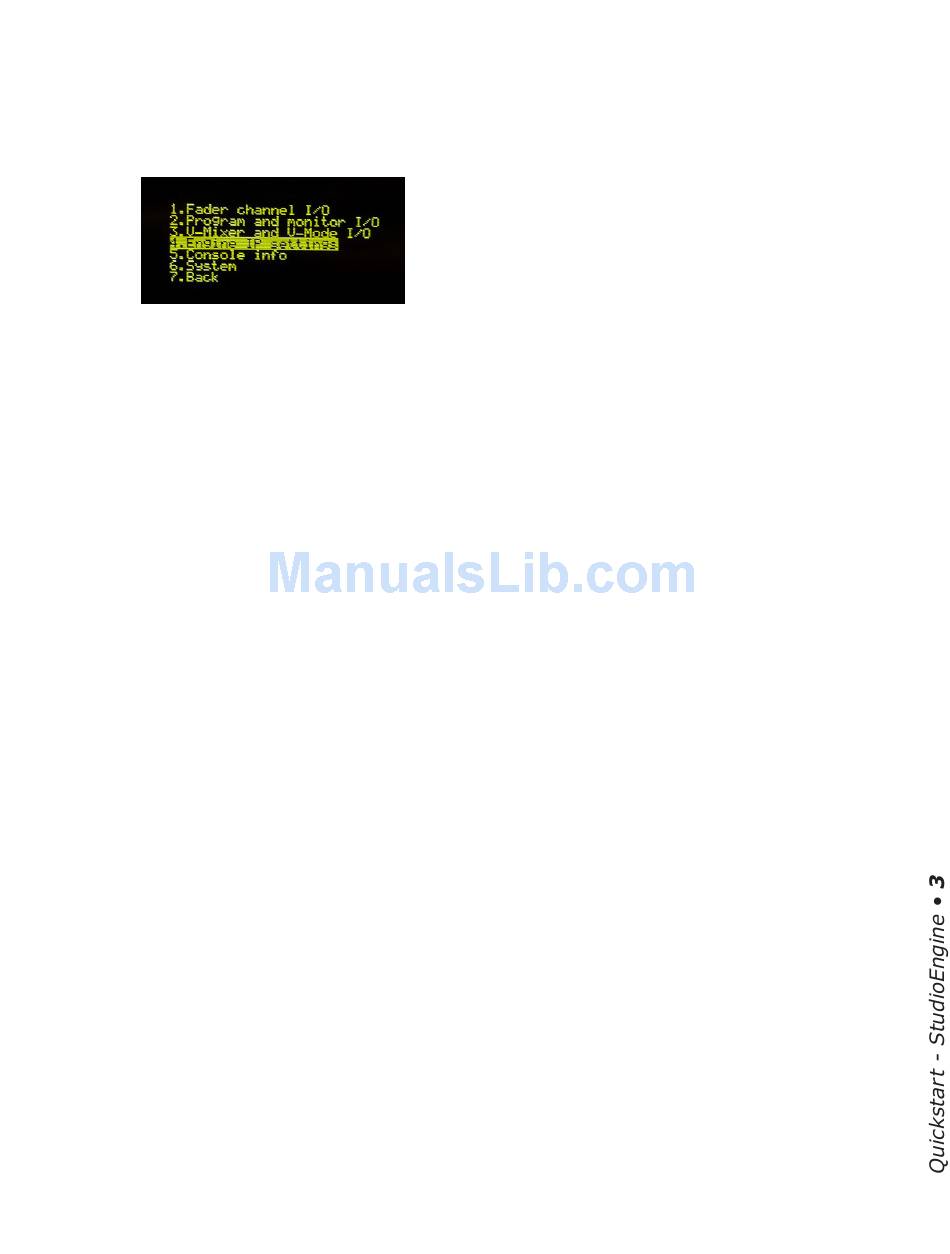

2. Rotate the encoder to highlight "Engine IP settings", and tap the encoder again to select it. A new menu
will appear.
3. Rotate the encoder to select "Net Address" and tap to select.
4. Rotate the encoder to move the onscreen cursor. A tap on any of the cursor position allows you to edit its
numeric value; rotate the encoder to increment or decrement the value and tap to accept the change. Repeat
this until the IP address you desire is entered.
5. Select the check mark to the right of the IP address to accept.
6. Repeat this process for the Netmask and Gateway fields, as needed.
7. Select "Console" and change the option to "Fusion".
8. Select "OK." After selecting OK, respond affirmative to the following notice to reboot the engine with its
new settings.
The next step requires a Web browser on a PC connected to your AoIP network. Open your browser and enter the IP
you assigned to your StudioEngine in the URL bar; an authentication window will appear. Enter the following values:
•
Username = user
•
Password = <leave blank>
