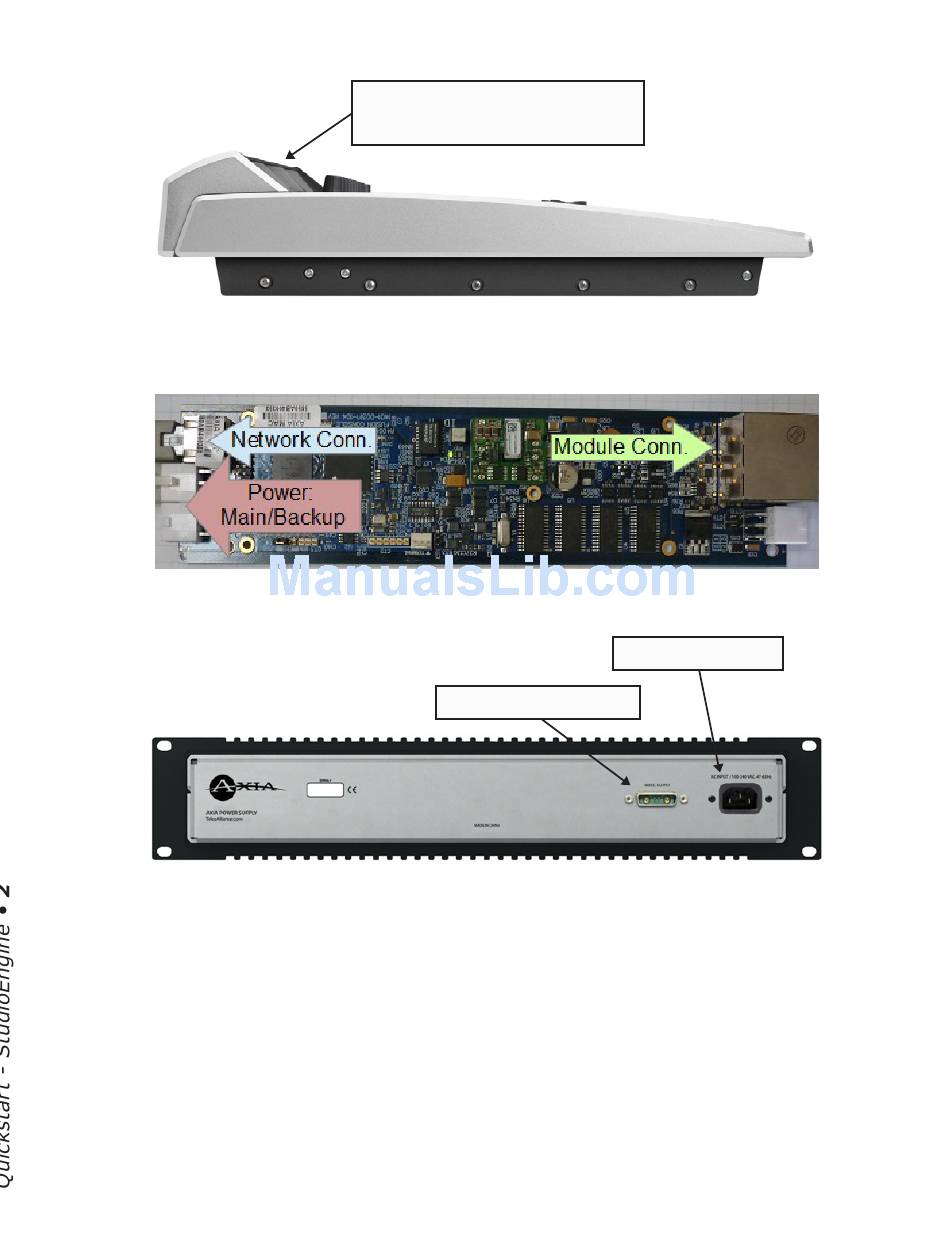

Tilt overbridge forward (toward faders)
to gain access to connection panel.
Next, connect the Power cable supplied with your Fusion Power Supply to the Power connection on the board
located beneath the overbridge of the Fusion surface.
Also connect your Fusion to your AoIP network's local switch, using a CAT-5e Ethernet cable.
AC Mains connection
Console power connection
Connect the Power cable from your Fusion console to the marked power supply port on the rear of your Fusion
Power Supply, and then connect the Fusion Power Supply to AC mains using the IEC cable supplied.
