Expert Monitor Module Controls

4. Preview Controls. Adjusts the volume of the Preview (cue) speaker; turns Preview To Headphones on and off.
5. Studio Monitor Controls. Adjusts volume of the Studio Monitor speakers, and allows the board op to
Talkback to studio guests through the Studio Monitor feed.
6. Link Key. When unlit, operators can choose separate sources for the CR Monitor and CR Operator Hea-
phones. When lit, the same audio is fed to CR Monitors and Headphones.

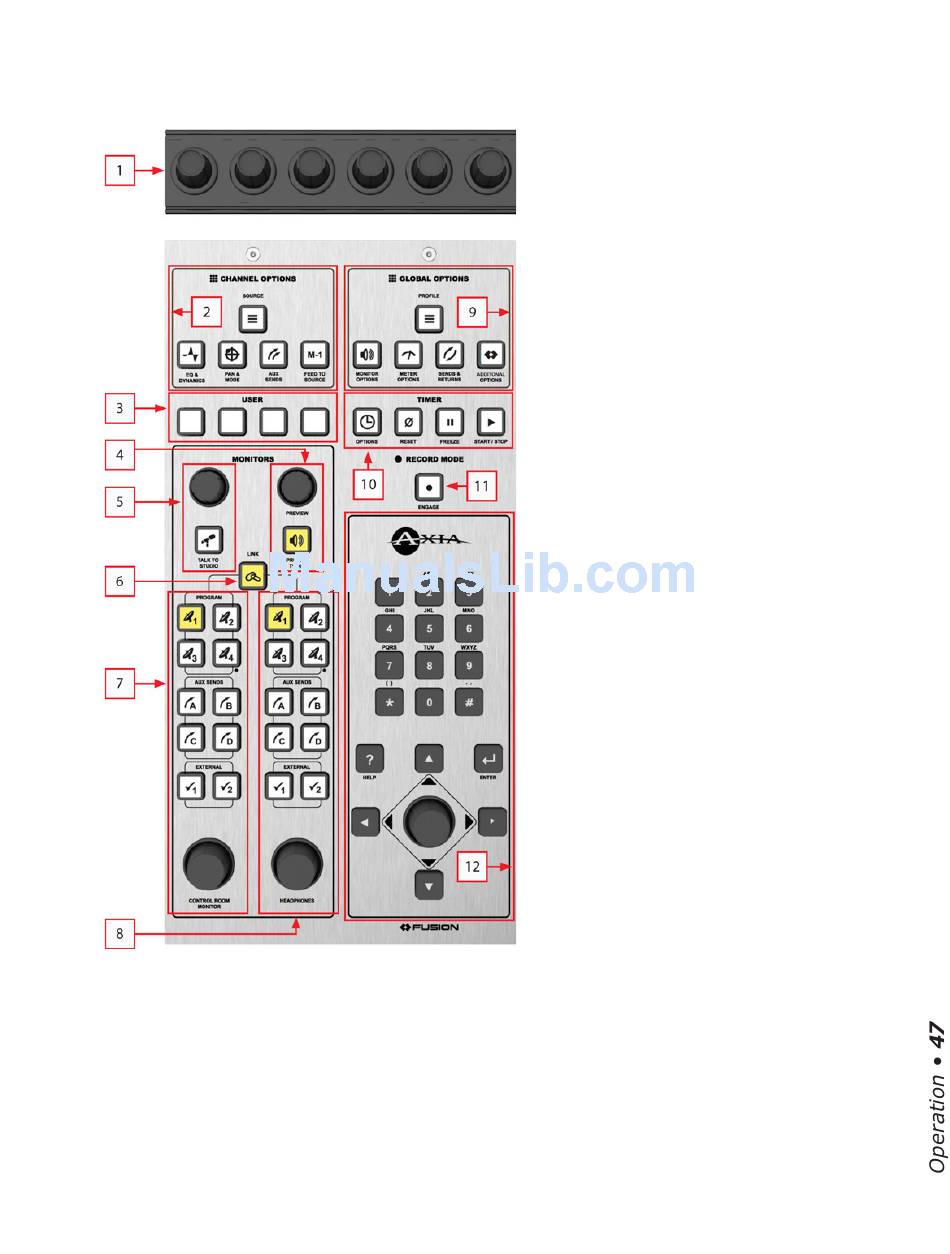

Here's the Expert Monitor Module. This is a dual-
width module with direct-access keys to every mon-
itor and channel option function on the console.
Multi-Function Knobs. When advanced
1.
controls are active, the center clock in Fusion's
display changes to indicate the active function,
and the action of each knob when pressed or
rotated.
2. Channel Options section. When you press
a Soft/Options knob at the top of any fader strip,
pressing any of these keys takes you directly to
that option.
Source lets you change the audio source
»
assigned to the fader.
EQ & Dynamics adjusts the EQ curve
»
and Mic compression / expansion settings (if
allowed).
Pan & Mode lets you adjust pan/balance,
»
choose Stereo or Mono signal mode, and correct
signal phase issues.
Aux Sends permits assignment of the audio
»
source to any or all of the four Aux Send buses.
Feed To Source gives the operator manual
»
control over mix-minus feed, if present.
3. User Keys. "Soft" keys that can be pro-
grammed to send routing or GPIO commands
via Show Profile configuration or Axia Path-
finder routing products.
