As with the guest microphone type, the codec type has the custom option for the feed to source. This permits

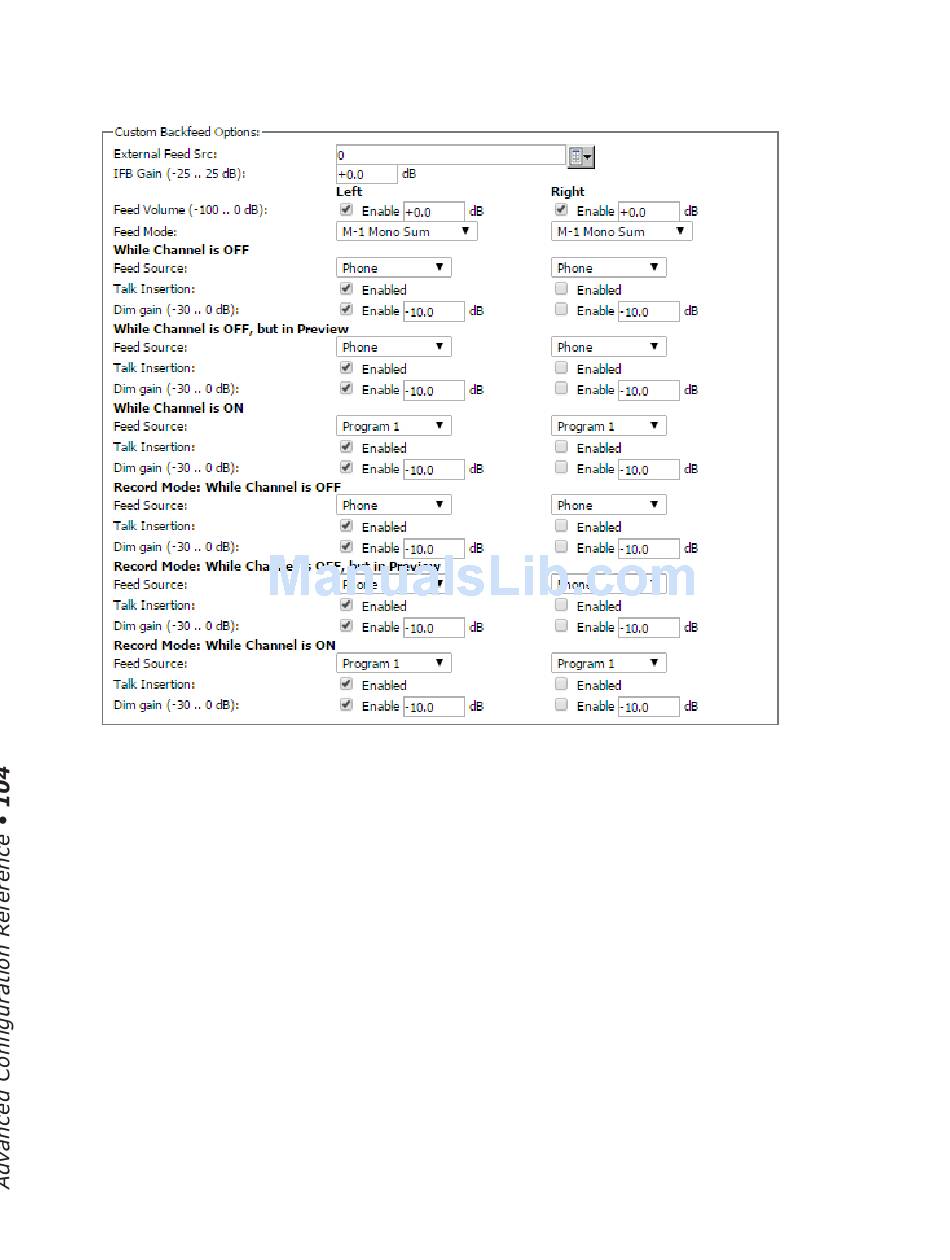

the custom building of the return feed to a codec. The image below present the rebuilding of the default behavior
through the custom options.
What can be observed that the default backfeed is a mix-minus mono sum on the 2 channels with talkback only
on the left channel. The default nature is intended with the workflow that a remote would have the first channel
as the remote talent feed (with talkback) and the second channel as a PA feed without talkback enabled. With the
custom option, you can introduce a stereo return feed with dual channel talkback by selecting the M-1 Left and M-1
Right and enabling all Talk insert check boxes.
