Setting Up And Testing Control Room Monitor Channels - Axia Fusion Installation And User Manual

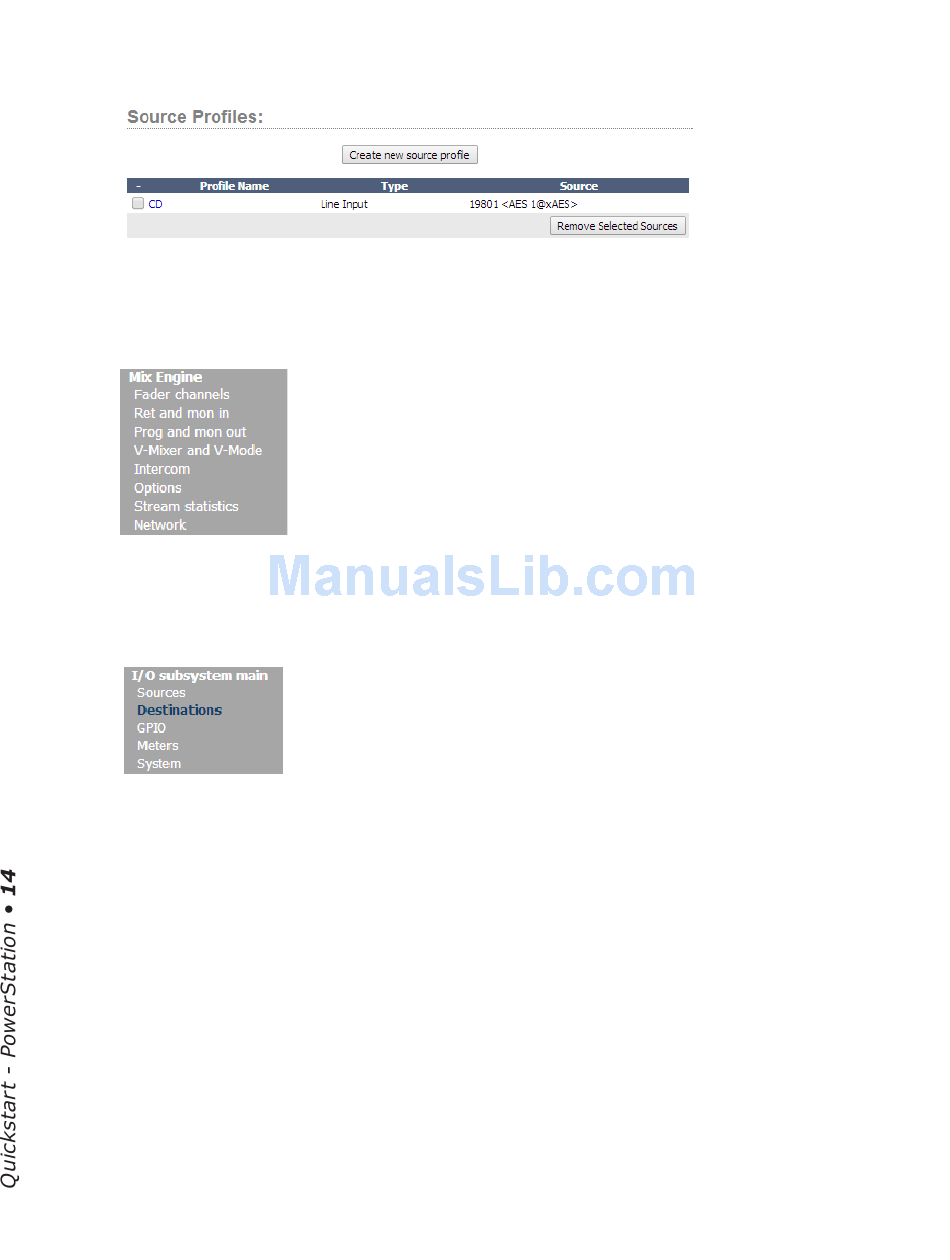

4. Your Source Profile has been created! Your screen should show an entry similar to that shown below.

Setting Up And Testing Control Room Monitor Channels

1. In the side menu, under the Mix Engine heading, select the Prog and mon out option.
2. Enter the planned Channel Numbers for the PowerStation outputs (Livewire Sources from DSP).
Click the Apply button.
3. In the side menu, select the Destinations link under the I/O subsystem main heading.
You'll be prompted for a Username and Password. Enter the following values:
• Username = user
• Password = <leave blank>
© 2017 Axia Audio - Rev 3.2
