Quickstart #1
Fast Setup – with Axia StudioEngine
Setup of a networked audio mixing console, though we have made it as easy as possible, is challenging to
condense into a few pages. The following material is intended to help the busy engineer get up and running in a few
minutes.
This Quickstart section setup assumes a few things:
•
That the reader has some knowledge of network basics and network terminology,
•
That the reader is familiar with other Axia Livewire products,
•
That the reader is familiar with the anatomy of the Fusion system,
•
And that the reader has a correctly configured network switch
Once you're up and running, please peruse the remainder of this manual to gain in-depth knowledge of more
advanced options.

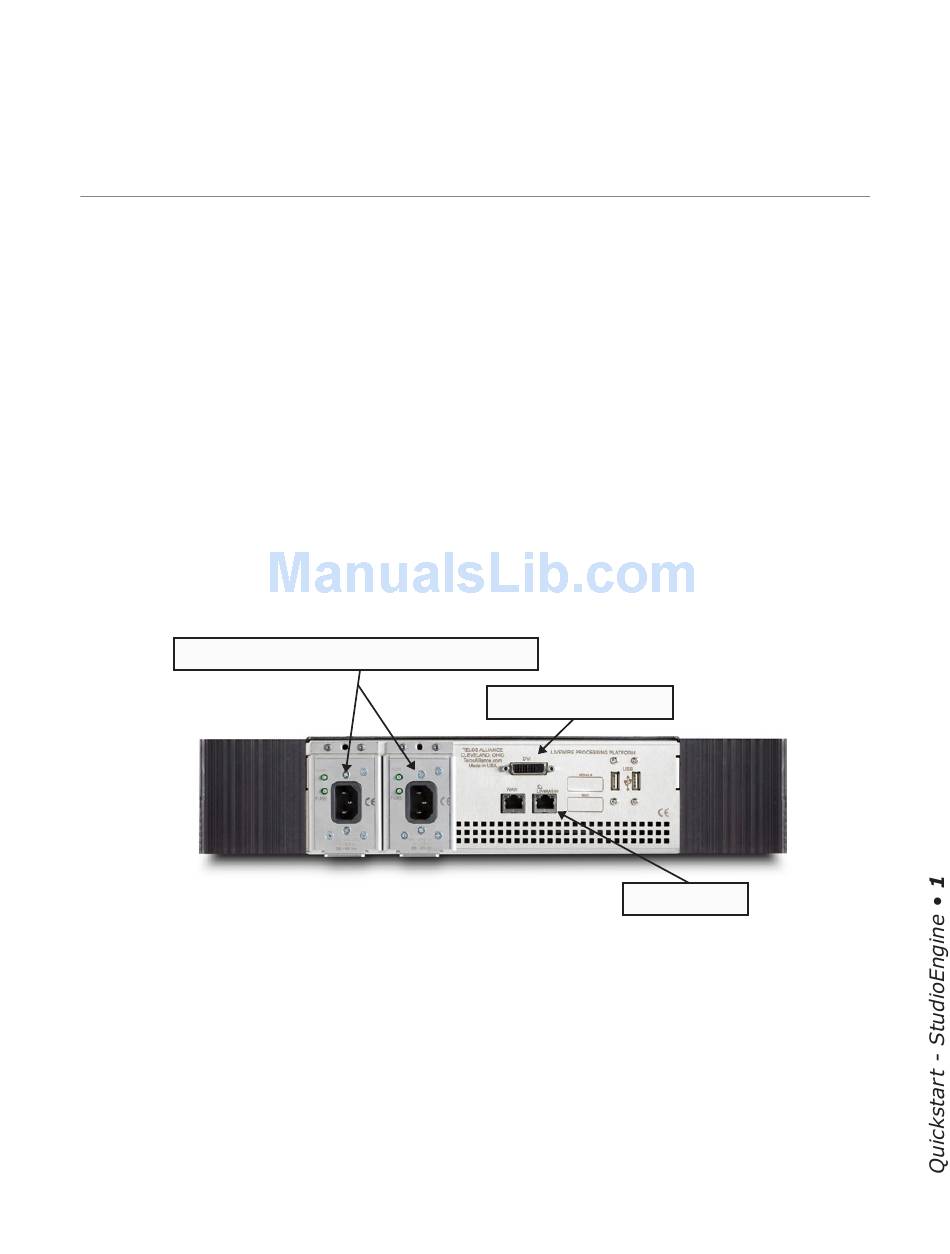

AC Mains connections for redundant power supplies
To begin, connect a 1080p widescreen computer monitor to the DVI port on the Axia StudioEngine's rear panel.
Also connect the RJ-45 port marked with the Livewire logo to a port on your AoIP network's local switch using a
CAT-6 Ethernet cable.
Using the IEC cables supplied, connect the StudioEngine's power supply input to AC mains.
DVI Monitor connector
© 2017 Axia Audio - Rev 3.2
Livewire NIC
