IP Intercom Module – 20-Station
Press the Mute Mic key to mute the Operator's mic feed to the IP Intercom system. The LED tally
»
will light when active.
Press the Mute Speaker key to mute IP Intercom calls to your console. The LED tally will light
»
when active.
Rotate the Volume knob to adjust the level of incoming Intercom calls.
»

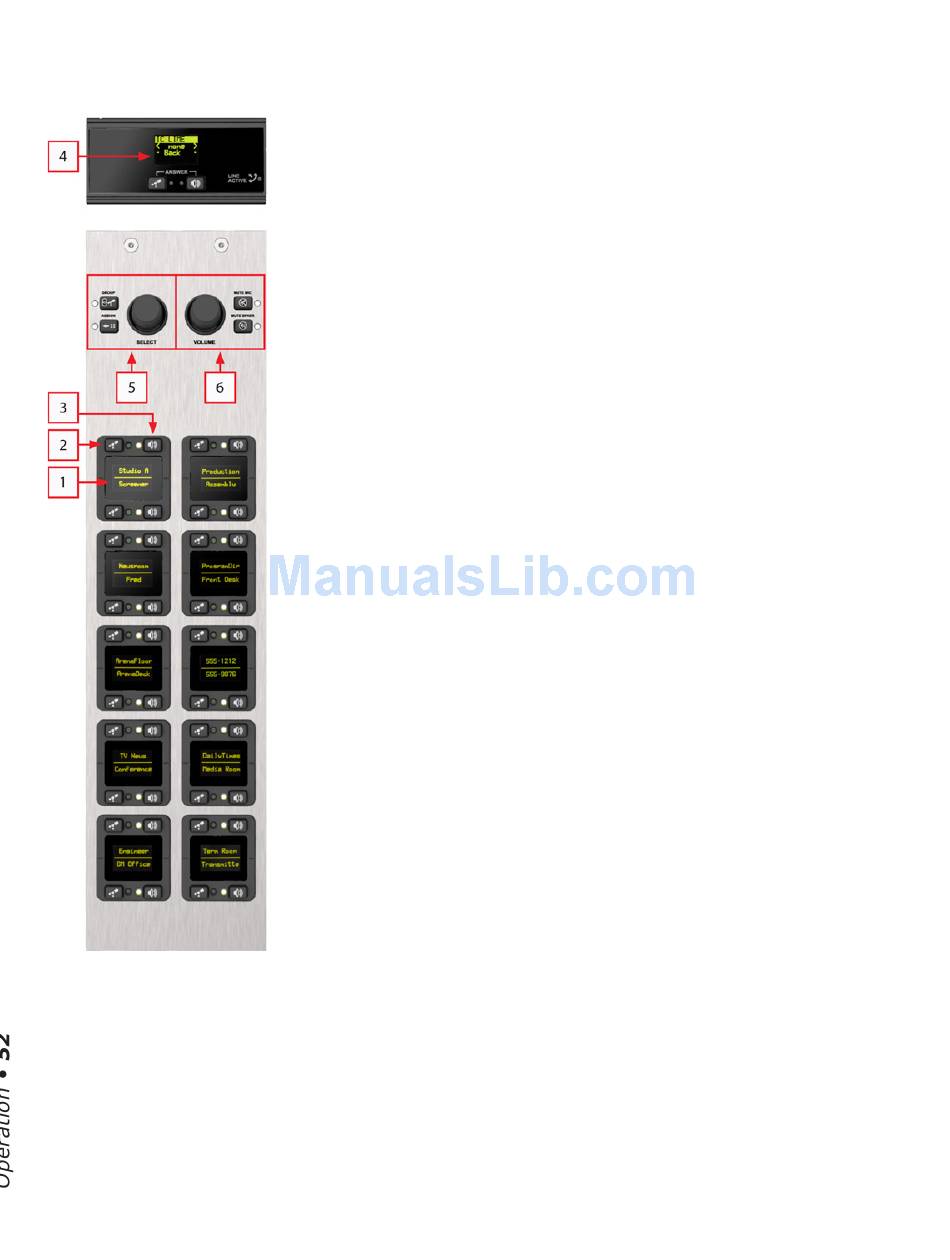

This module provides on-console integration with the Axia IP Inter-
com system, and gives access to 20 preprogrammed intercom stations,
plus dial-up access to stations systemwide that have not been pro-
grammed to one of the speed-dial stations. The Operator's mic is used
as the local talk source; the Preview (cue) speaker is used to listen to
other stations.
Preset Station Displays show what preset Intercom stations are assigned; useful
1.
for frequently-called stations. Each display provides info for two stations; associated
Talk and Listen keys are above and below each display.
2. Talk key. Press to talk to the station indicated by the display. The adjacent LED
tally illuminates when the Talk key is pressed, or when the station at the other end is
listening to you.
3. Listen key. Press to listen to the station indicated by the display. The adjacent
LED tally illuminates when you are listening to the far-end station. If this tally
blinks, you must press it to allow the calling station to talk to you.
Non-Preset Station Display and Talk/Listen Controls. This display and Talk/
4.
Listen controls are used to "dial up" stations not assigned to one of the 20 presets
below. To select a station to call, use the Select knob below.
5. Non-Preset Station Selectors and Group Call key.
Rotate the Select knob to scroll through a list of available Intercom stations on
»
the overbridge display above.
Tap the Assign key to assign the selected station to the overbridge Talk and
»
Listen keys.
Tap the Group Call key to call multiple stations with a single button press.
»
Please refer to the IP Intercom User Guide for details on how to use this function.
6. Mic and Speaker Mute keys, and Volume control.
