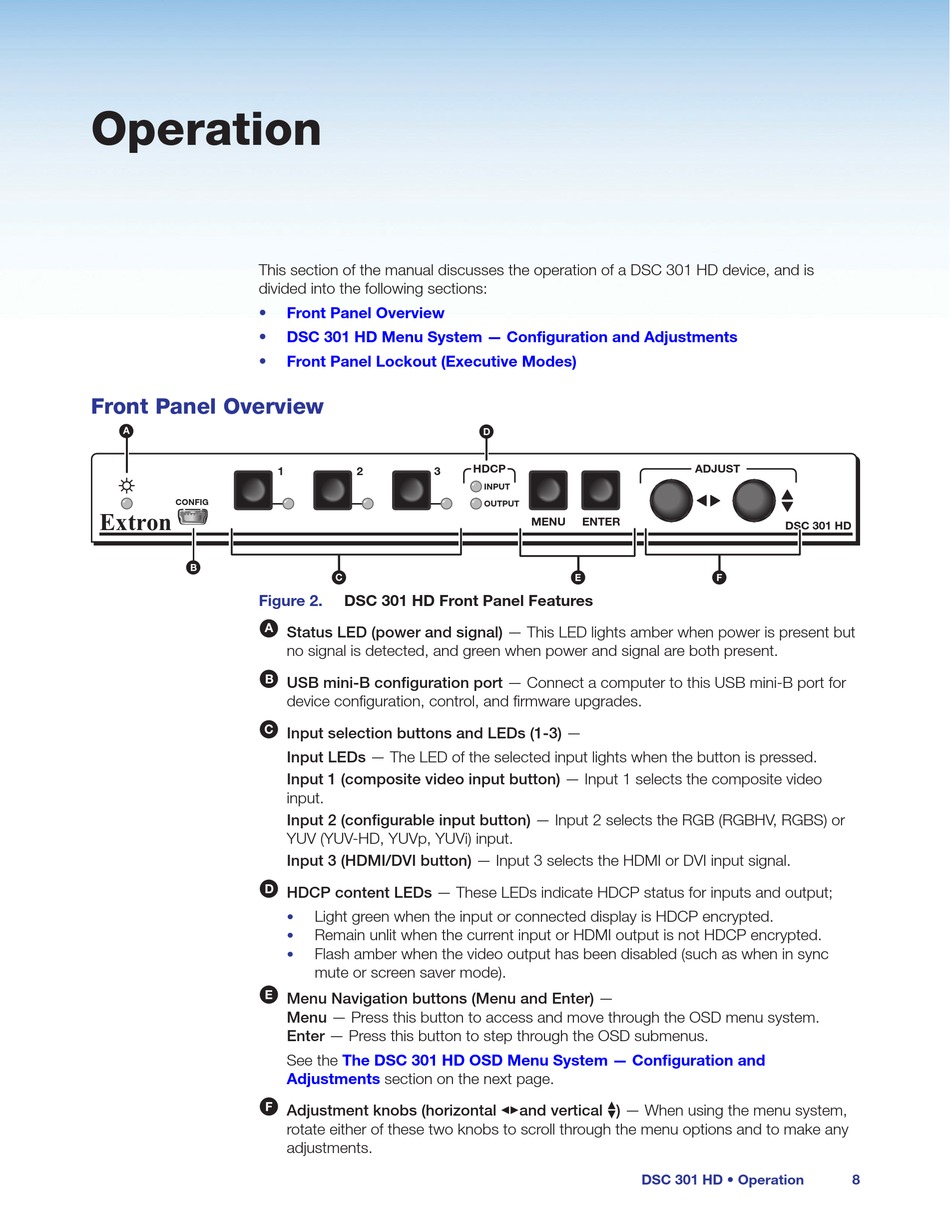

Operation

This section of the manual discusses the operation of a DSC 301 HD device, and is
divided into the following sections:
•
•
•

Front Panel Overview

A
CONFIG
CONFIG
Extron
Extron
B
Figure 2.
A
B
C
D
E
F
Front Panel Overview
DSC 301 HD Menu System — Configuration and Adjustments
Front Panel Lockout (Executive Modes)
1 2 3
1 2 3
C
DSC 301 HD Front Panel Features
Status LED (power and signal) — This LED lights amber when power is present but
no signal is detected, and green when power and signal are both present.
USB mini-B configuration port — Connect a computer to this USB mini-B port for
device configuration, control, and firmware upgrades.
Input selection buttons and LEDs (1-3) —
Input LEDs — The LED of the selected input lights when the button is pressed.
Input 1 (composite video input button) — Input 1 selects the composite video
input.
Input 2 (configurable input button) — Input 2 selects the RGB (RGBHV, RGBS) or
YUV (YUV-HD, YUVp, YUVi) input.
Input 3 (HDMI/DVI button) — Input 3 selects the HDMI or DVI input signal.
HDCP content LEDs — These LEDs indicate HDCP status for inputs and output;
Light green when the input or connected display is HDCP encrypted.
•
Remain unlit when the current input or HDMI output is not HDCP encrypted.
•
Flash amber when the video output has been disabled (such as when in sync
•
mute or screen saver mode).
Menu Navigation buttons (Menu and Enter) —
Menu — Press this button to access and move through the OSD menu system.
Enter — Press this button to step through the OSD submenus.
See the The DSC 301 HD OSD Menu System — Configuration and
Adjustments section on the next page.
Adjustment knobs (horizontal [and vertical {) — When using the menu system,
rotate either of these two knobs to scroll through the menu options and to make any
adjustments.
D
HDCP
HDCP
INPUT
INPUT
OUTPUT
OUTPUT
MENU ENTER
MENU ENTER
E
DSC 301 HD • Operation
ADJUST
ADJUST
DSC 301 HD
DSC 301 HD
F
8
