Output Configuration panel

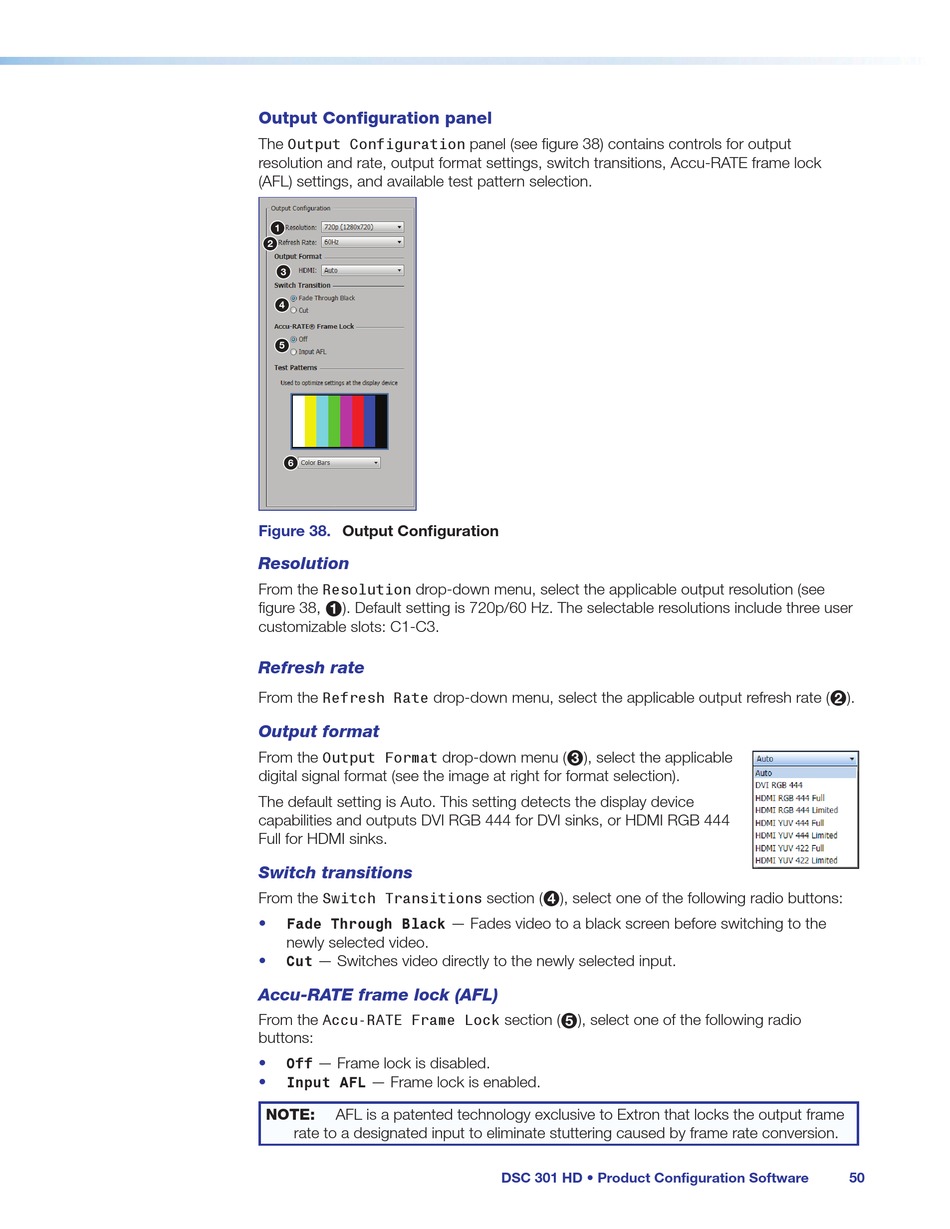

The Output Configuration panel (see figure 38) contains controls for output
resolution and rate, output format settings, switch transitions, Accu-RATE frame lock
(AFL) settings, and available test pattern selection.
1
2
3
4
5
6
Figure 38. Output Configuration
Resolution
From the Resolution drop-down menu, select the applicable output resolution (see
figure 38, ). Default setting is 720p/60 Hz. The selectable resolutions include three user
1
customizable slots: C1-C3.
Refresh rate
From the Refresh Rate drop-down menu, select the applicable output refresh rate (

Output format

From the Output Format drop-down menu (
digital signal format (see the image at right for format selection).
The default setting is Auto. This setting detects the display device
capabilities and outputs DVI RGB 444 for DVI sinks, or HDMI RGB 444
Full for HDMI sinks.
Switch transitions
From the Switch Transitions section (
•
Fade Through Black
newly selected video.
• — Switches video directly to the newly selected input.
Cut
Accu-RATE frame lock (AFL)
From the Accu-RATE Frame Lock section (
buttons:
• Off — Frame lock is disabled.
• — Frame lock is enabled.
Input AFL
NOTE: AFL is a patented technology exclusive to Extron that locks the output frame
rate to a designated input to eliminate stuttering caused by frame rate conversion.
), select the applicable
3
), select one of the following radio buttons:
4
— Fades video to a black screen before switching to the
), select one of the following radio
5
DSC 301 HD • Product Configuration Software
).
