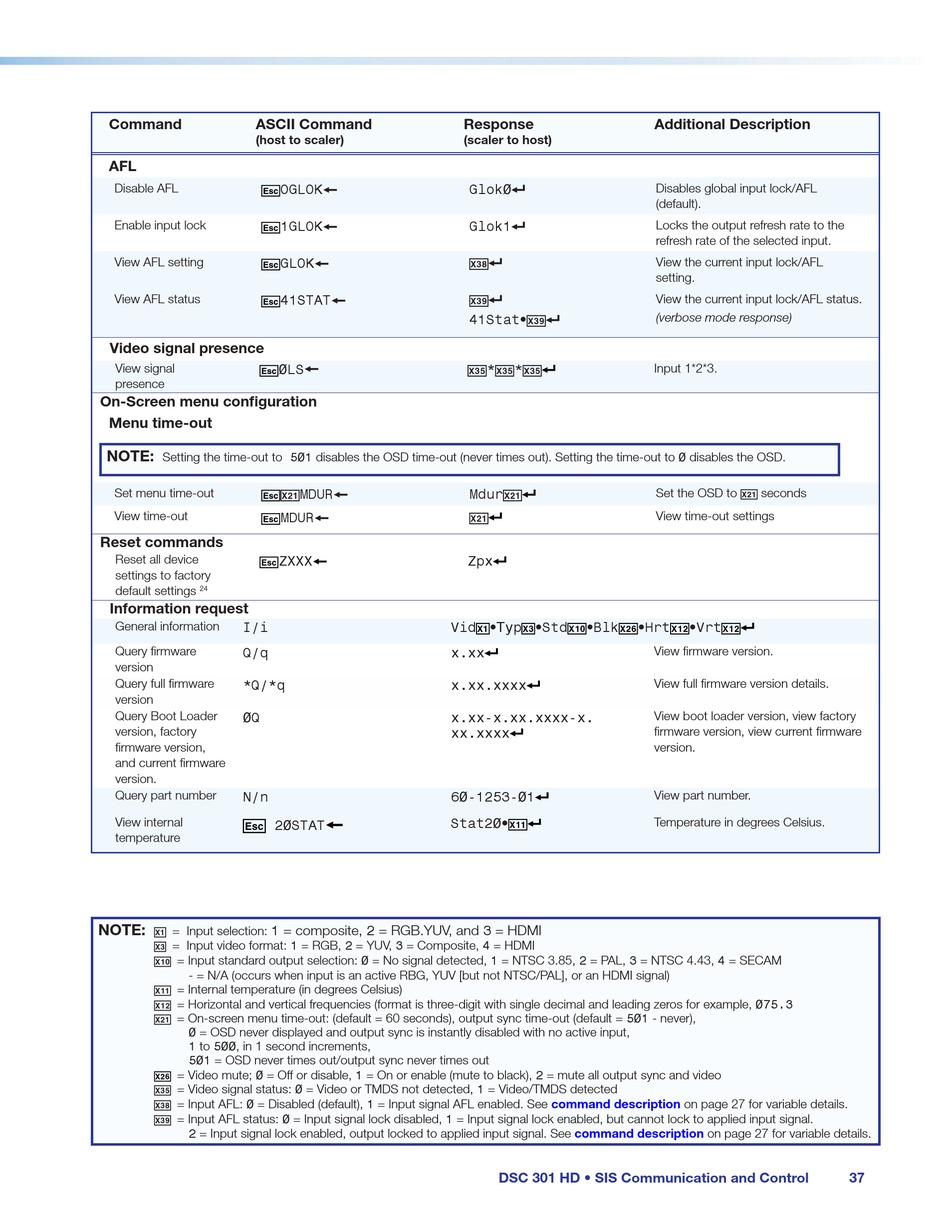

Extron electronics DSC 301 HD User Manual page 43

Command ASCII Command
(host to scaler)
AFL
Disable AFL
EOGLOK}
Enable input lock
E1GLOK}
View AFL setting
EGLOK}
View AFL status
E41STAT}
Video signal presence
View signal E0LS }
presence
On-Screen menu configuration
Menu time-out
NOTE:
Setting the time-out to 501 disables the OSD time-out (never times out). Setting the time-out to 0 disables the OSD.
Set menu time-out
EX2!MDUR}
View time-out
EMDUR}
Reset commands
Reset all device
EZXXX}
settings to factory
default settings
24
Information request
General information
I/i
Query firmware Q/q
version
Query full firmware *Q/*q
version
Query Boot Loader
0Q
version, factory
firmware version,
and current firmware
version.
Query part number N/n
View internal E
20STAT
temperature
NOTE:
1 = composite, 2 = RGB.YUV, and 3 = HDMI
X! = Input selection:
X# = Input video format: 1 = RGB, 2 = YUV, 3 = Composite, 4 = HDMI
X1) = Input standard output selection: 0 = No signal detected, 1 = NTSC 3.85, 2 = PAL, 3 = NTSC 4.43, 4 = SECAM
- = N/A (occurs when input is an active RBG, YUV [but not NTSC/PAL], or an HDMI signal)
X1! = Internal temperature (in degrees Celsius)
X1@ = Horizontal and vertical frequencies (format is three-digit with single decimal and leading zeros for example, 075.3
X2! = On-screen menu time-out: (default = 60 seconds), output sync time-out (default = 501 - never),
0 = OSD never displayed and output sync is instantly disabled with no active input,
1 to 500, in 1 second increments,
501 = OSD never times out/output sync never times out
= Video mute; 0 = Off or disable, 1 = On or enable (mute to black), 2 = mute all output sync and video
X2^
X3% = Video signal status: 0 = Video or TMDS not detected, 1 = Video/TMDS detected
X3* = Input AFL: 0 = Disabled (default), 1 = Input signal AFL enabled. See
X3( = Input AFL status: 0 = Input signal lock disabled, 1 = Input signal lock enabled, but cannot lock to applied input signal.
2 = Input signal lock enabled, output locked to applied input signal. See
Response
(scaler to host)
Glok0]
Glok1]
X3*]
X3(]
41Stat•X3(]
X3%*X3%*X3%]
MdurX2!]
X2!]
Zpx]
VidX!•TypX#•StdX1)•BlkX2^•HrtX1@•VrtX1@]
x.xx]
x.xx.xxxx]
x.xx-x.xx.xxxx-x.
xx.xxxx]
60-1253-01]
}
Stat20•X1!]
DSC 301 HD • SIS Communication and Control
Additional Description
Disables global input lock/AFL
(default).
Locks the output refresh rate to the
refresh rate of the selected input.
View the current input lock/AFL
setting.
View the current input lock/AFL status.
(verbose mode response)
Input 1*2*3.
Set the OSD to X2! seconds
View time-out settings
View firmware version.
View full firmware version details.
View boot loader version, view factory
firmware version, view current firmware
version.
View part number.
Temperature in degrees Celsius.
command description on page 27 for variable details.
command description on page 27 for variable details.
