Size and Position Page

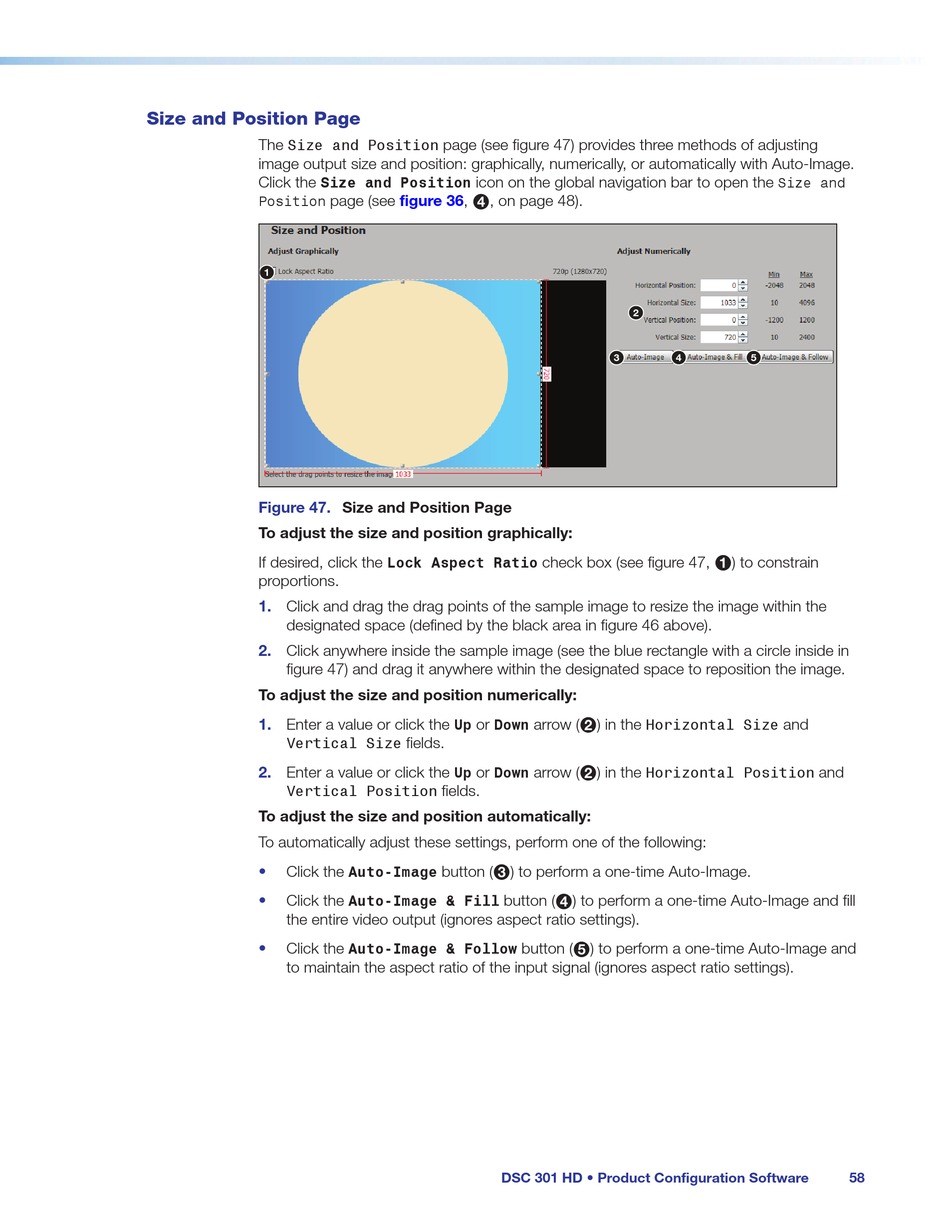

The Size and Position page (see figure 47) provides three methods of adjusting
image output size and position: graphically, numerically, or automatically with Auto-Image.
Click the Size and Position icon on the global navigation bar to open the
Position
1
Figure 47.
To adjust the size and position graphically:
If desired, click the Lock Aspect Ratio check box (see figure 47,
proportions.
1. Click and drag the drag points of the sample image to resize the image within the
designated space (defined by the black area in figure 46 above).
2. Click anywhere inside the sample image (see the blue rectangle with a circle inside in
figure 47) and drag it anywhere within the designated space to reposition the image.
To adjust the size and position numerically:
1.
Enter a value or click the Up or Down arrow (
Vertical Size
2. Enter a value or click the Up or Down arrow (
Vertical Position
To adjust the size and position automatically:
To automatically adjust these settings, perform one of the following:
• Click the Auto-Image button (
• Click the Auto-Image & Fill button (
the entire video output (ignores aspect ratio settings).
• Click the Auto-Image & Follow button (
to maintain the aspect ratio of the input signal (ignores aspect ratio settings).
page (see figure 36, , on page 48).
