NOTE: PCS versions prior to version 2.1 do not have the configuration pages for the
1.
2.
3.
4.
5.
6.

Starting the Software

Open the Product Configuration Software program from the Start menu or the
desktop Product Configuration Software icon (see image at right).
The Product Configuration Software window opens at the Device Discovery
panel (see figure 20).
1

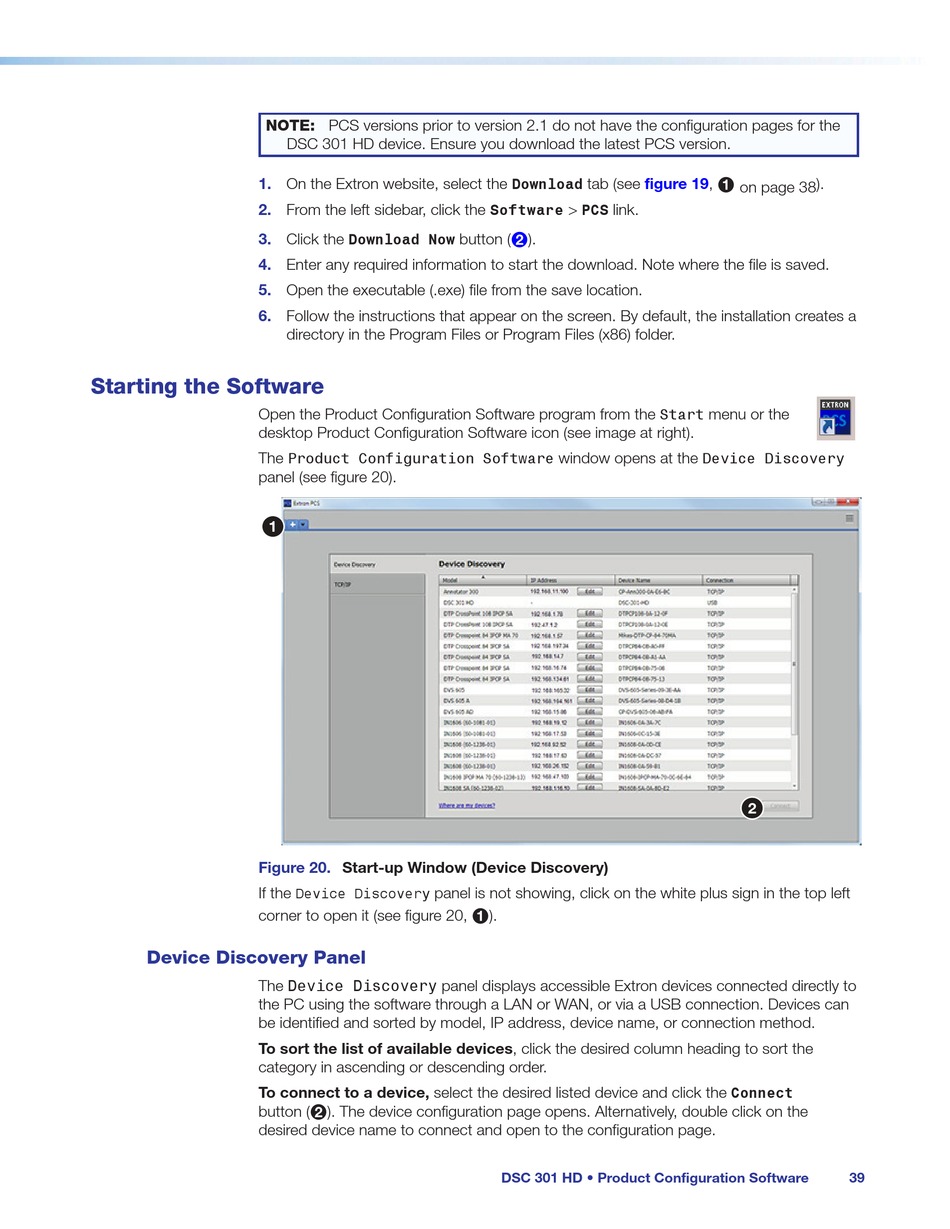

Figure 20.
If the
corner to open it (see figure 20,

Device Discovery Panel

The Device Discovery panel displays accessible Extron devices connected directly to
the PC using the software through a LAN or WAN, or via a USB connection. Devices can
be identified and sorted by model, IP address, device name, or connection method.
To sort the list of available devices, click the desired column heading to sort the
category in ascending or descending order.
To connect to a device, select the desired listed device and click the Connect
button (
desired device name to connect and open to the configuration page.
DSC 301 HD device. Ensure you download the latest PCS version.
On the Extron website, select the Download tab (see
From the left sidebar, click the Software > PCS link.
Click the Download Now button (
Enter any required information to start the download. Note where the file is saved.
Open the executable (.exe) file from the save location.
Follow the instructions that appear on the screen. By default, the installation creates a
directory in the Program Files or Program Files (x86) folder.
Start-up Window (Device Discovery)
panel is not showing, click on the white plus sign in the top left
Device Discovery
). The device configuration page opens. Alternatively, double click on the
2
figure
).
2
).
1
DSC 301 HD • Product Configuration Software
19, on page 38 ).
1
2
39
