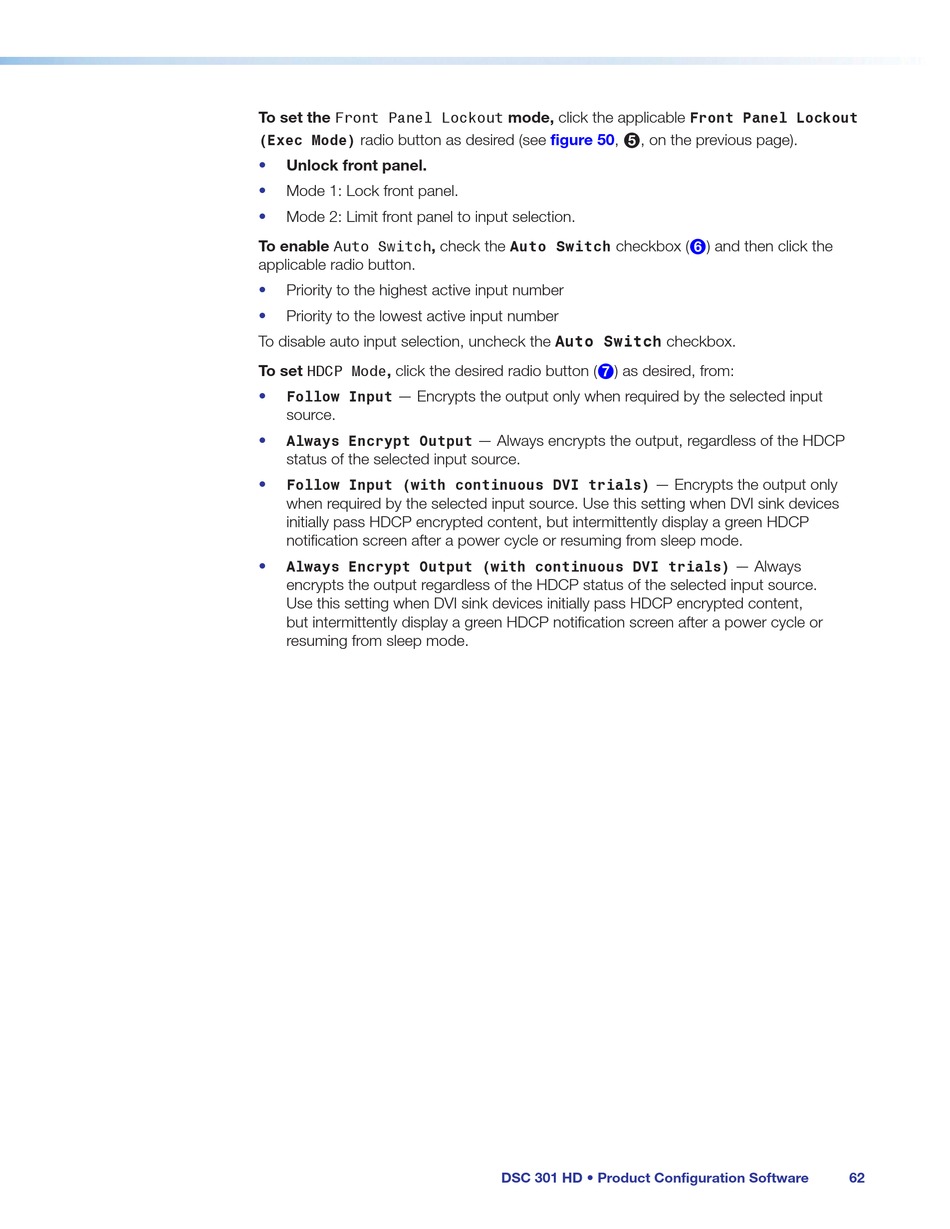

Extron electronics DSC 301 HD User Manual page 68

To set the Front Panel Lockout mode, click the applicable Front Panel Lockout
radio button as desired (see
(Exec Mode)
• Unlock front panel.
• Mode 1: Lock front panel.
• Mode 2: Limit front panel to input selection.
To enable Auto Switch , check the Auto Switch checkbox (
applicable radio button.
• Priority to the highest active input number
• Priority to the lowest active input number
To disable auto input selection, uncheck the Auto Switch checkbox.
To set HDCP Mode , click the desired radio button (
• — Encrypts the output only when required by the selected input
Follow Input
source.
• Always Encrypt Output
status of the selected input source.
•
Follow Input (with continuous DVI trials)
when required by the selected input source. Use this setting when DVI sink devices
initially pass HDCP encrypted content, but intermittently display a green HDCP
notification screen after a power cycle or resuming from sleep mode.
•
Always Encrypt Output (with continuous DVI trials)
encrypts the output regardless of the HDCP status of the selected input source.
Use this setting when DVI sink devices initially pass HDCP encrypted content,
but intermittently display a green HDCP notification screen after a power cycle or
resuming from sleep mode.
figure 50, , on the previous page).
5
) as desired, from:
7
— Always encrypts the output, regardless of the HDCP
— Encrypts the output only
DSC 301 HD • Product Configuration Software
) and then click the
6
— Always
62
