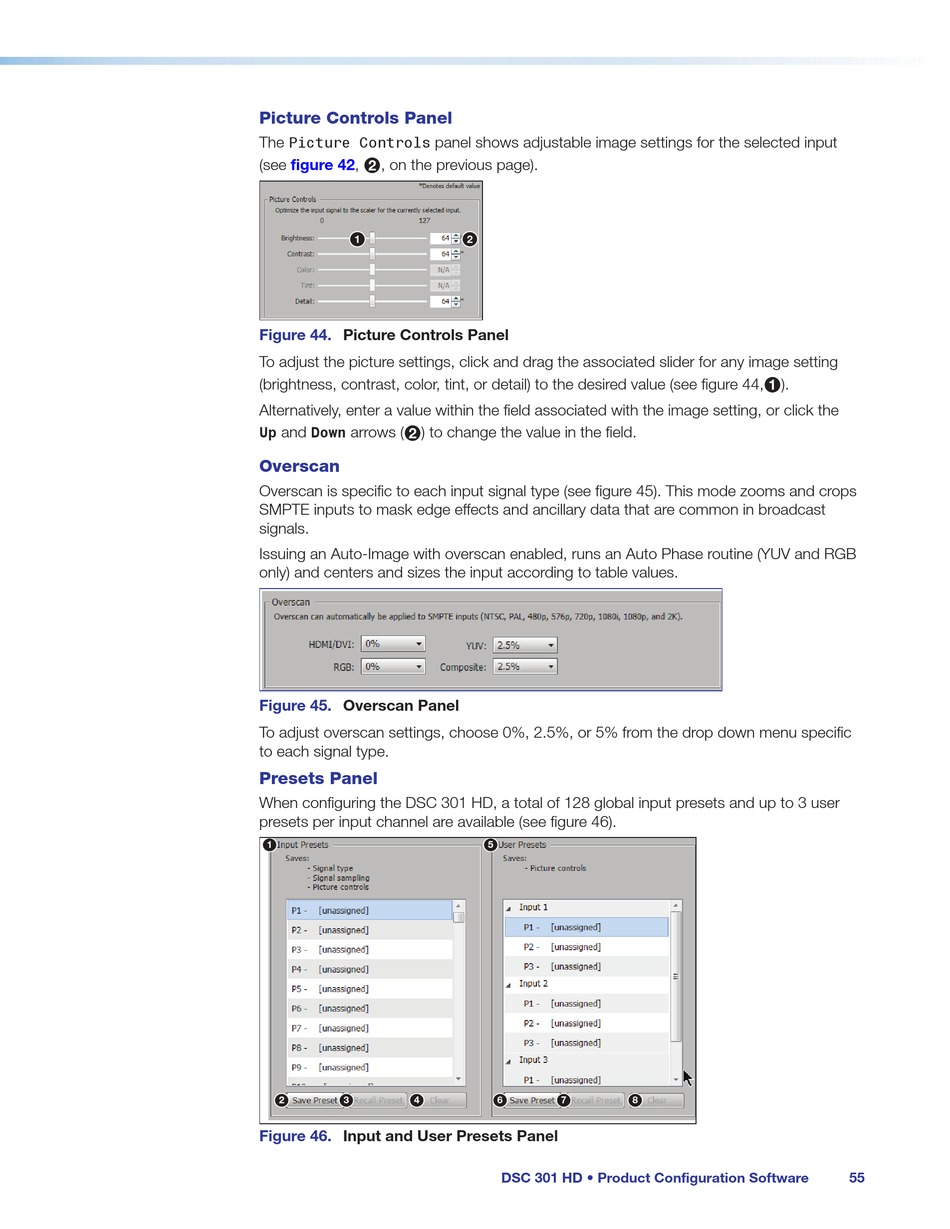

Extron electronics DSC 301 HD User Manual page 61

Picture Controls Panel
The Picture Controls panel shows adjustable image settings for the selected input
(see figure 42, , on the previous page).
2
1
Figure 44. Picture Controls Panel
To adjust the picture settings, click and drag the associated slider for any image setting
(brightness, contrast, color, tint, or detail) to the desired value (see figure 44,
Alternatively, enter a value within the field associated with the image setting, or click the
Up and Down arrows ( ) to change the value in the field.
2
Overscan
Overscan is specific to each input signal type (see figure 45). This mode zooms and crops
SMPTE inputs to mask edge effects and ancillary data that are common in broadcast
signals.
Issuing an Auto-Image with overscan enabled, runs an Auto Phase routine (YUV and RGB
only) and centers and sizes the input according to table values.
Figure 45. Overscan Panel
To adjust overscan settings, choose 0%, 2.5%, or 5% from the drop down menu specific
to each signal type.
Presets Panel
When configuring the DSC 301 HD, a total of 128 global input presets and up to 3 user
presets per input channel are available (see figure 46).
1
2 3 4
Figure 46. Input and User Presets Panel
2
5
6 7 8
DSC 301 HD • Product Configuration Software
).
