To navigate and use the OSD menu:
1. Press the Menu button (see figure 2,
display. The menu opens with the Quick Setup submenu (see figure 3).
2. If the desired submenu is not showing, use the
to the desired menu.
3. Press the button to access the submenu (
Enter
4. Rotate either knob to cycle through the submenu to the desired option.
Adjust
5. Press the button to access the submenu item.
Enter
6.
Rotate either knob to adjust the value as desired.
Adjust
7. Press to accept the new value. Press it again if action confirmation is required.
Enter
8. Press to exit the sub menu. Press it again to exit and close the main menu.
Menu
NOTE: In any submenu, values that do not apply to the current input will be
shown as "N/A".
Quick Setup submenu
This submenu (see figure 3) allows the user to make basic configuration adjustments to
the DSC 301 HD.

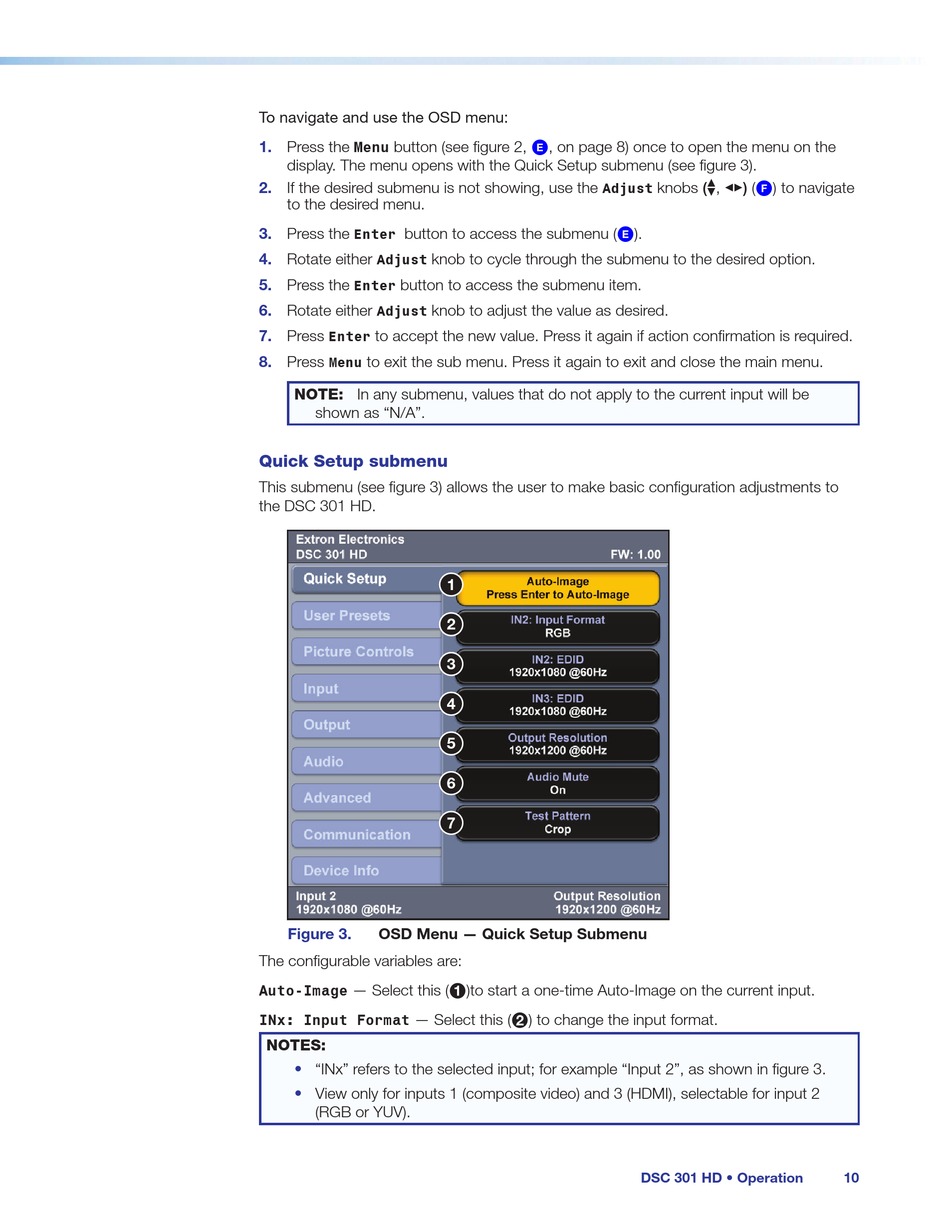

Figure 3. OSD Menu — Quick Setup Submenu
The configurable variables are:
— Select this (
Auto-Image
— Select this (
INx: Input Format
NOTES:
• "INx" refers to the selected input; for example "Input 2", as shown in figure 3.
• View only for inputs 1 (composite video) and 3 (HDMI), selectable for input 2
(RGB or YUV).
, on page 8) once to open the menu on the
E
Adjust
E
1
2
3
4
5
6
7
)to start a one-time Auto-Image on the current input.
1
) to change the input format.
2
knobs ({, [) ( ) to navigate
F
).
DSC 301 HD • Operation 10
