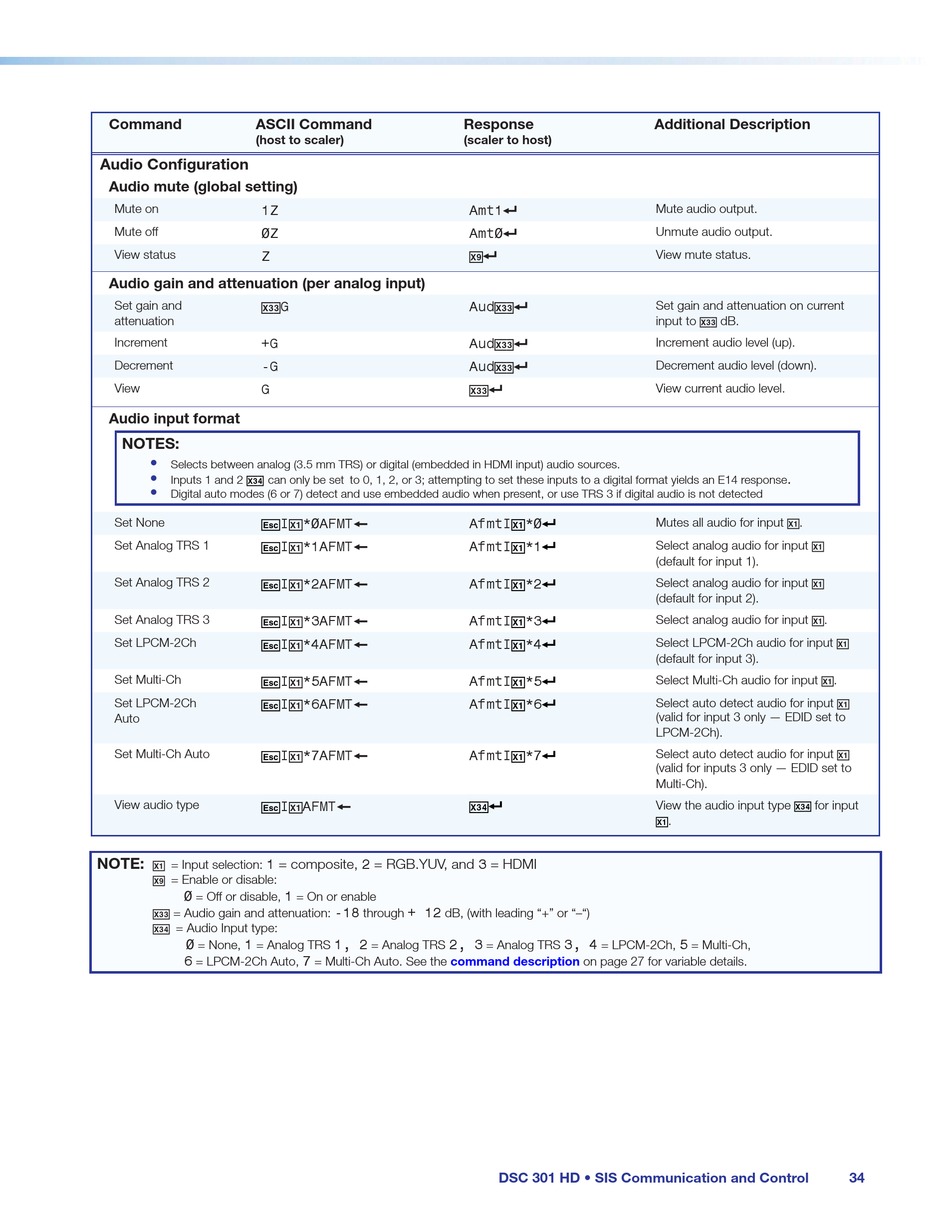

Extron electronics DSC 301 HD User Manual page 40

Command ASCII Command
(host to scaler)
Audio Configuration
Audio mute (global setting)
Mute on 1Z
Mute off 0Z
View status Z
Audio gain and attenuation (per analog input)
Set gain and
X3#G
attenuation
Increment
+G
Decrement
-G
View
G
Audio input format
NOTES:
•
Selects between analog (3.5 mm TRS) or digital (embedded in HDMI input) audio sources.
•
Inputs 1 and 2 X3$ can only be set to 0, 1, 2, or 3; attempting to set these inputs to a digital format yields an E14 response
•
Digital auto modes (6 or 7) detect and use embedded audio when present, or use TRS 3 if digital audio is not detected
Set None
EIX!*0AFMT}
Set Analog TRS 1
EIX!*1AFMT}
Set Analog TRS 2
EIX!*2AFMT}
Set Analog TRS 3
EIX!*3AFMT}
Set LPCM-2Ch
EIX!*4AFMT}
Set Multi-Ch
EIX!*5AFMT}
Set LPCM-2Ch
EIX!*6AFMT}
Auto
Set Multi-Ch Auto
EIX!*7AFMT}
View audio type
EIX!AFMT}
NOTE:
1 = composite, 2 = RGB.YUV, and 3 = HDMI
X! = Input selection:
X( = Enable or disable:
0
= Off or disable,
X3# = Audio gain and attenuation:
X3$ = Audio Input type:
0 1
= None, = Analog TRS
6
= LPCM-2Ch Auto,
Response
(scaler to host)
1
= On or enable
-18 + 12
through dB, (with leading "+" or "–")
1, 2 2, 3
= Analog TRS
7
= Multi-Ch Auto. See the command description
Amt1]
Amt0]
X(]
AudX3#]
AudX3#]
AudX3#]
X3#]
AfmtIX!*0]
AfmtIX!*1]
AfmtIX!*2]
AfmtIX!*3]
AfmtIX!*4]
AfmtIX!*5]
AfmtIX!*6]
AfmtIX!*7]
X3$]
3, 4
= Analog TRS = LPCM-2Ch,
on page 27 for variable details.
DSC 301 HD • SIS Communication and Control
Additional Description
Mute audio output.
Unmute audio output.
View mute status.
Set gain and attenuation on current
input to X3# dB.
Increment audio level (up).
Decrement audio level (down).
View current audio level.
.
Mutes all audio for input X!.
Select analog audio for input X!
(default for input 1).
Select analog audio for input X!
(default for input 2).
Select analog audio for input X!.
Select LPCM-2Ch audio for input X!
(default for input 3).
Select Multi-Ch audio for input X!.
Select auto detect audio for input X!
(valid for input 3 only — EDID set to
LPCM-2Ch).
Select auto detect audio for input X!
(valid for inputs 3 only — EDID set to
Multi-Ch).
View the audio input type for input
X3$
X!.
5
= Multi-Ch,
